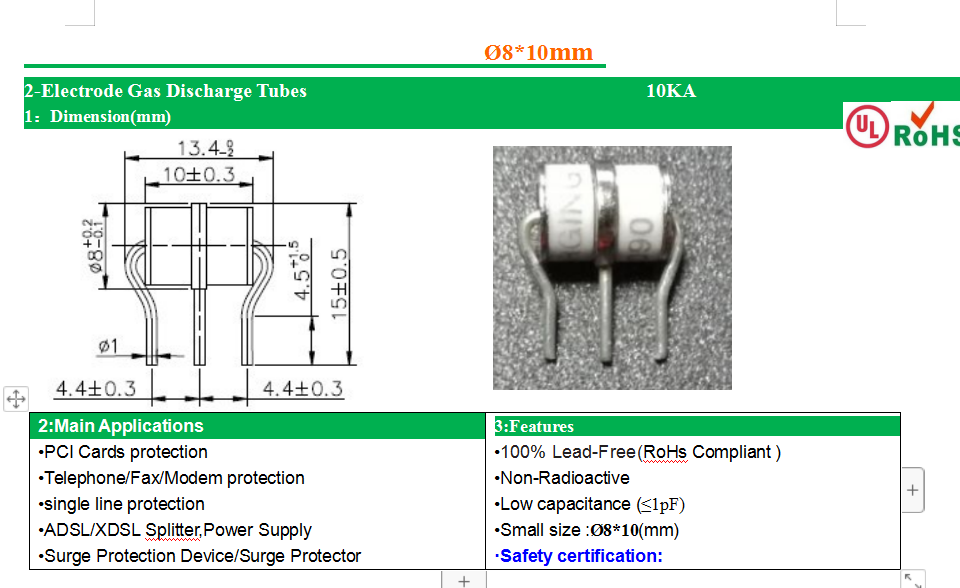

Ø8*
4 Electrical Characteristics
P
Part Number | DC Spark-over Voltage@ 100V/S | Impulse Spark-over Voltage @100V/μs | Impulse Spark-over Voltage @1KV/μs | Insulation Resistance | Impulse discharge current(8/20μs) | AC discharge current (50Hz,1s,10times) | Capacitance (1MHz) |
| V | V | V | GΩ | 10 Times | A | PF |
| 3R8-75 | 75 ±20% | <450 | <550 | >1 | 10KA | 10 | ≤1 |
| 3R8-90 | 90 ±20% | <450 | <550 | >1 | 10KA | 10 | ≤1 |
| 3R8-150 | 150 ±20% | <500 | <600 | >1 | 10KA | 10 | ≤1 |
| 3R8-230 | 230 ±20% | <600 | <700 | >1 | 10KA | 10 | ≤1 |
| 3R8-250 | 250 ±20% | <600 | <700 | >1 | 10KA | 10 | ≤1 |
| 3R8-300 | 300 ±20% | <600 | <700 | >1 | 10KA | 10 | ≤1 |
| 3R8-350 | 350 ±20% | <900 | ≤ 1000 | >1 | 10KA | 10 | ≤1 |
| 3R8-400 | 400 ±20% | <900 | ≤ 1000 | >1 | 10KA | 10 | ≤1 |
| 3R8-420 | 420 ±20% | <900 | ≤ 1000 | >1 | 10KA | 10 | ≤1 |
| 3R8-470 | 470 ±20% | <1050 | ≤ 1150 | >1 | 10KA | 10 | ≤1 |
| 3R8-600 | 600 ±20% | <1200 | ≤ 1300 | >1 | 10KA | 10 | ≤1 |
4 Electrical Characteristics
Specifications are subject to change without notice
Product Description:

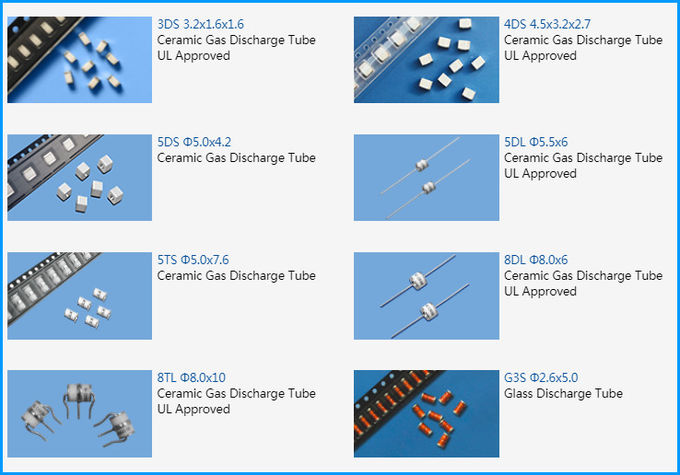

Ceramic Gas Discharge Tube GDT
Ceramic Gas Discharge Tube GDT is a type of three-pole
gaseous-discharge component which is mainly used to provide
reliable over-voltage protection for electronic circuits. It has a
high insulation resistance of ≥1GΩ, a low impulse spark over
voltage of ≤600V, and a low electrode capacitance of ≤1.5PF. It is
also capable of withstanding up to 10A of AC discharge current
(50Hz 1s 10times).
Features:
- Product Name: Gas Discharge Tube
- Product Name: Ceramic Gas Discharge Tube GDT
- Type: GDT
- Suppressor Type: 3 Electrode Gas Discharge Tube
- AC Discharge Current: 10A(50Hz 1s 10times)
- Surge Current: 8x10mm
- Diode discharge tube
- Gas-Discharge Device
- Gaseous-Discharge Component
- Overvoltage Protection
Technical Parameters:
| Parameter | Specification |
|---|
| Product Name | Ceramic Gas Discharge Tube GDT |
| Type | GDT |
| Maximum Surge Current | 10 KA |
| Surge Current | 8x10mm |
| DC Spark Over Voltage | 230V(100v/s) |
| AC Discharge Current | 10A(50Hz 1s 10times) |
| Impulse Discharge Current | 10KA (8/20μs 10times) |
| Mounting Type | Surface Mount |
| Number Of Pin | 3pin |
| High Light | SMD 3 Gas Discharge Tube, 3 Pin GDT Gas Discharge Tube, 230V 20%
10kA Gas Tube Arrester |
Applications:
LINKUN 8TL230M Ceramic Gas Discharge Tube GDT Application and
Scenario
LINKUN 8TL230M Ceramic Gas Discharge Tube GDT is a
gaseous-discharge tube that provides efficient protection against
high-voltage transients. It is specifically designed for AC
discharge current up to 10A(50Hz 1s 10times) and DC spark over
voltage up to 230V(100v/s). The maximum surge current of LINKUN
8TL230M Ceramic Gas Discharge Tube GDT is up to 10 KA, making it
suitable for a wide range of applications. It is easy to install
with surface mounting. LINKUN 8TL230M Ceramic Gas Discharge Tube
GDT is a reliable and cost-effective solution for over-voltage
protection in a variety of industries and applications.
LINKUN 8TL230M Ceramic Gas Discharge Tube GDT can be used in
various industrial and commercial scenarios, such as power
supplies, communication systems, high-voltage electrical circuits,
military equipment, automatic control systems, electronic security
systems, automotive electronics, and consumer electronics. It is
also suitable for applications such as outdoor lighting, automotive
lighting, LED lighting, solar energy systems, power distribution
systems, and data centers. LINKUN 8TL230M Ceramic Gas Discharge
Tube GDT is also widely used in medical, transportation, and
aerospace industries, where high-voltage protection is required.
LINKUN 8TL230M Ceramic Gas Discharge Tube GDT is the ideal choice
for any application that requires reliable over-voltage protection.
It is easy to install and provides efficient protection against
high-voltage transients. With its superior performance and reliable
protection, LINKUN 8TL230M Ceramic Gas Discharge Tube GDT is the
perfect solution for any application that needs reliable
over-voltage protection.
Customization:
Gas Discharge Tube Customization Service
- Brand Name: LINKUN
- Model Number: 8TL230M
- Place of Origin: Dongguan, Guangdong, China
- Maximum Surge Current: 10 KA
- Electrode Capacitance 1MHz 0.5V: ≤1.5PF
- Surge Current: 8x10mm
- Insulation Resistance: ≥1GΩ
- Mounting Type: Surface Mount
Our Gas Discharge Tube is a diode discharge tube with ceramic gas discharge components.
It is reliable and safe to use due to its high insulation
resistance and maximum surge current.
Support and Services:
Our Gas Discharge Tube products come with technical support and
service. Our team of experts can provide assistance with
installation, configuration, and maintenance of your products. We
offer a range of support options, including phone, email, and
online support. Our team can also provide training and
troubleshooting services to help you get the most out of your Gas
Discharge Tube products.
Packing and Shipping:
Packaging and Shipping
Gas Discharge Tube products from our company are packaged to ensure
they are protected from any damages during shipping. We use quality
packing materials such as boxes, bubble wrap, and foam to protect
our products.
We ship our products with trusted shipping carriers such as Fedex,
UPS, and DHL. We make sure to choose a carrier that best fits the
customer’s needs and budget.
We take extra care in ensuring that our products arrive safely to
the customer. We make sure to package our products properly and
label them with the appropriate shipping information.
FAQ:
Q: What is a Gas Discharge Tube?
A: A Gas Discharge Tube is a device used to protect electrical
circuits from high voltage transients. It is a glass or ceramic
tube filled with a gas such as argon, nitrogen, or air. A high
voltage applied across the tube ionizes the gas, creating a spark
discharge that then acts as a switch, providing a low impedance
path for the transient current.
Q:What is the Brand Name and Model Number of the Gas Discharge
Tube?
A: The Brand Name of the Gas Discharge Tube is LINKUN and the Model
Number is 8TL230M.
Q: Where is the Gas Discharge Tube manufactured?
A: The Gas Discharge Tube is manufactured in Dongguan, Guangdong,
China.
Q: What are the main applications of a Gas Discharge Tube?
A: Gas Discharge Tubes are commonly used in power supplies, data
communication systems, and automotive electronics. They are used to
protect against high voltage transients caused by lightning
strikes, power surges, and other electrical disturbances.
Q: What are the advantages of using a Gas Discharge Tube?
A: Gas Discharge Tubes offer several advantages over other types of
transient voltage protection. They are low-cost, easy to install,
and have a fast response time. They are also highly reliable and
have a long service life.
