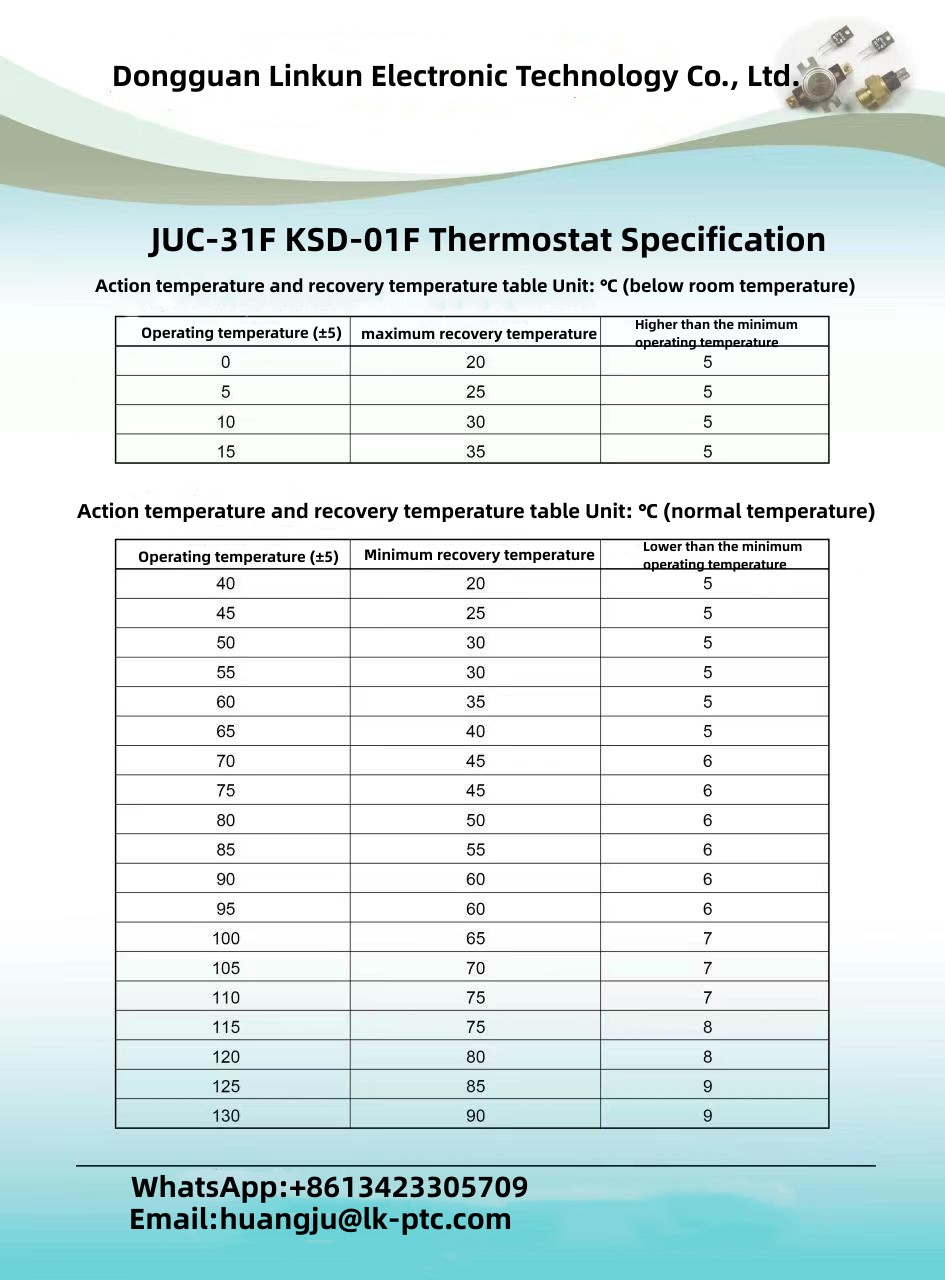

JUC-31F, KSD-01F ultra-small thermostat manual
Structural features: Advanced compression spring structural design,
bimetallic sheet molding with high-sensitivity jump process. use
T0 220 package.
Applicable examples: For temperature control and overheating
protection in electrical equipment, electronic products,
instruments, meters, power supplies, functions, household
appliances and circuit boards.
Contact form: Normally open (1H) or Normally closed (1D)
Contact load: 2 A
Temperature range: O°C~1 30°C Contact resistance: ≤ 50 mΩ
Insulation resistance: ≥100MΩ
Dielectric withstand voltage: ≥1500 V AC
Ambient temperature: -40 °C~+1 45 °C
Environmental certification: RoHS
Safety certification: U L, TU V, CQC, CE
Working life: 25 0 V AC 2A 10,000 times, 48 V DC 1A 30,000 times 5V
DC 0.02A 100,000 times
Weight: ＜1.8g
Test method: Place the thermostat in a constant temperature box,
use air as the heat transfer medium, place a thermometer in the
temperature measurement area, and rise and fall 17 to 2t per minute
to measure the operating temperature and recovery temperature of
the thermostat. value.
Usage requirements: Working position: Any, use in an environment
free of corrosive gases, flammable gases and conductive dust. Do
not deform the product under any circumstances to avoid damaging
the product's electrical connection, temperature characteristics
and sealing. Do not let liquids Penetrate inside the thermostat. In
order to ensure the service life and parameters of the thermostat,
the plastic shell cannot be pressed, and thermal grease cannot be
used on the installation base plate and temperature contact
surface.
Packaging: T 0 2 20 anti-static transparent plastic packaging tube,
50 pcs per tube, 10 tubes per small box
Product Description:
Heat Protector Product Overview
The Heat Protector is a high-performance thermal protector designed
to provide reliable protection against extreme heat. It is
constructed with a durable plastic shell to ensure long-term
reliability and performance. It is equipped with a KSD301
thermostat and BW9700 thermal protector and KSD9700 thermal
protector to provide superior heat resistance up to -20°C to 125°C.
It is available in three sizes to suit different needs, including
small, medium, and large. This heat protector is designed to
provide reliable temperature control and can be used in a variety
of applications.
The Heat Protector is a must-have for protecting against extreme
temperatures. With its superior heat resistance, durable
construction, and reliable temperature control, the Heat Protector
is an ideal choice for any application where extreme heat
protection is required.
Features:
- Product Name: Heat Protector
- Heat Resistance: －40 °C~+1 45°C
- Material: Plastic Shell
- Type: Temperature Controller
- Size: Small/Medium/Large
- Name: JUC-31F/KSD-01F temperature control switch
- Ultra-small 02B temperature switch
- Temperature control switch 17AM sudden jump thermal protector
- Temperature control thermal protector
Technical Parameters:
| Property | Details |
|---|
| Name | BW-9700 Series Thermal Protector |
| Material | Plastic Shell |
| Size | Small/Medium/Large |
| Type | Temperature Controller |
| Durability | High |
| Heat Resistance | -20～＋125°C |
| Color | Black/White/Grey |
| Keywords | Jump thermostat, KSD9700 thermal protector, Temperature control
switch 17AM sudden jump thermal protector |
Applications:
The KSD9700 thermal protector from LINKUN is a temperature control switch and a thermal protector. It has an
excellent heat resistance, with a temperature range from -20 to
+125°C. It is available in three sizes: small, medium, and large.
It is made with the highest quality materials for durability and is
certified by CQC,UL,RoHS,VDE. The minimum order quantity is 1000
pieces and the price is negotiable. Delivery time is 5-7 days and
payment terms can be negotiated. The KSD-01F temperature control switch has a supply ability of 1,000,000 pieces per month and is perfect
for a wide range of temperature control applications. This temperature controller is an excellent choice for those looking for a reliable thermal
protector.
Customization:
Heat Protector
Brand Name: LINKUN
Model Number: Temperature control switch Thermal protector
Place of Origin: China DongGuang
Certification: CQC,UL,RoHS,VDE
Minimum Order Quantity: 1000
Price: Negotiate
Packaging Details: Negotiate
Delivery Time: 5-7 days
Payment Terms: T/T,Negotiate
Supply Ability: 1,000,000 pieces/month
Name: BW-9700 Series Thermal Protector
Heat Resistance: -20～＋125°C
Color: Black/White/Grey
Material: Plastic Shell
Durability: High
Heat Protector is a high current ceramic temperature control switch
with thermal control and thermal control switch capabilities. It
can provide reliable thermal protection with its thermal protector.
It has a minimum order quantity of 1000 pieces, with a delivery
time of 5-7 days. Moreover, it has a heat resistance of -20～＋125°C,
a plastic shell material, and a high durability. Plus, it is
certified by CQC,UL,RoHS, and VDE.
