| MZ4P6S1915-10-20R5S12V/65 | PTC THERMISTOR |
| 1. APPEARANCE |
1-1.Dimensions
|
| 2.PACKING AND STORAGE |
2-1.Material of Packing
| 1.Inner Foam Box 2.Carton |
2-2. Packing Method
| 1.A carton to be placed ten foam box 2. Qty/Per Carton: |
2-3. Storage Condition
| Temperature: -10℃～+40℃ Humidity: ≤70%RH Term: ≤12 months (First-in/ First-out) After unpacking of the minimum package, reseal it promptly or store
it inside a sealed container with a drying agent. |
Part No:
MZ4P6S1915-10-20R5S12V/65 | PTC THERMISTOR10-20Ω | Rev: 0/A (2023.10.13)
Page 2 of 5 |
| 3.ELECTRICAL CHARACTERISTICS |
Item
| Specification
| Test Conditions & Methods
|
3-1. Rated Zero-power Resistance (RN) | 10-20Ω | Ambient temp. range : 25℃±1℃ Testing voltage : 1.5VDC
|
3-2. Curie Temperature (TC) | 60±7℃ (只作为参考) | The resistance at TC is twice of RN
|
3-3.Max.Operating Voltage
| 12V | |
3-4.Surface Temperature
| 65±10℃ | At ambient Temperature: 25℃±2℃ Applying Voltage:3.7V Test Instruments:Digital Thermometer After applying 3.7V for 10minutes,test the middle of the disc
temperature. |

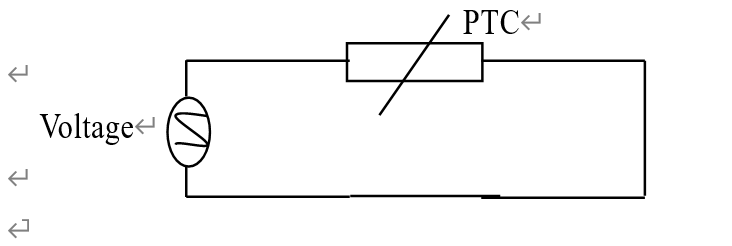

3-5. Withstand Voltage(Ub) (Ub) | 40V/60S | At ambient Temperature: 25℃±2℃ Test circuit diagram
|
4. Test for life tests |
4-1.Room temperature intermittent load test |
There is no abnormal appearance, structure and electrical
properties. |
at 25±2℃ apply 3.7VDC for 60sec on and 300sec off, total 1000 cycles. |
4-2.Continuous load test at normal temperature |
There is no abnormal appearance, structure and electrical
properties. |
at 25±2℃,on 3.7VDC continuous 1,00 hours. |
Part No:
MZ4P6S1915-3R5S12V/65 | PTC THERMISTOR10-20Ω | Rev: 0/A (2024.10.13)
Page 3 of 5 |
| 5.PART NUMBER CODE |
Example : MZ4 P6 S1915 – 15R S 12V/ 65 (1) (2) (3) (4) (5) (6) (7)
(1)――Heating PTC thermistor
(2)――Curie Temperature P6――60℃ P8――80℃ X2――120℃ X8――180℃ Y2――220℃ Y8――270℃
(3)――Disc Size S1915――Ф19*1.5 S202030――L20*W20*T3.0
(4)――Resistance at 25℃ 3R5――3.5Ω 150――15Ω 141――140Ω 202――2000Ω
(5)――Tolerance of Resistance M――±20％ N――±30％ X――±25％ S――Specialties
(6)――Rated Voltage 12V――12V V24――24V V110――110V V230――230V
(7)――Surface Temperature 65――65℃ 105――105℃ 240――240℃ |
Part No:
MZ4P6S1915-10-20R5S12V/65 | PTC THERMISTOR10-20Ω | Rev: 0/A (2024.10.13)
Page 4 of 5 |
| 6.R-T CURVE |
Part No: MZ4P6S1915-3R5S12V/65
7.TTENTION
(1)Please read this specification before use the product. (2)Please do not expose posistor to any abnormal environment.Or it
may deteriorate posistor's character, worsely,may cause
malfunction(or damage). ●Please use posistor within the specified maximum voltage. ●When this product is operated,please make sure that surrounding
parts and inserting material can withstand the temperature.If the
surrounding part and materials is kept under such condition,they
may be deteriorated or may produce harmful
gas(C12,H2S,NH3,Sox,Noxetc.).And,such harmful gas may deteriorate
the element. ●This product does not have waterproof construction. A splashed
water may cause failure mode such as decline of characteristic or
current leak. ●The ceramic element of this product is fragile,and care must be
taken not to load a excessive pressforce or not to give a shock at
handling,Such forces may cause cracking or chipping. ●Please store posistor under following conditions,without breaking
package ①Storage temperature:between-10℃ and 40℃Storage humidity: less than
85%RH(no dew) ②Storage place : keep away from sun, any halogen gas,such as
chorine or sulfurous Materials.
●Please do keep Posistor away ①From caustic and reductive gas(such as Cl2,H2S,NH3,SOx, NOx, etc.) ②From volatile and combustible gas. ③From water salt solution,oil, lotion and organic solvent. (3)You are requested not to use our product deviating from the
agreed specifications. (4)Please make sur ethat your product has beenevaluated in view of
your specifications with our product Being mounted to your product (5)Please return one duplicate of this product specification to us
with your signature to acknowledge your receipt.If the duplicate is not returned by the date this product
specification will be deemed to have been received by you.
8.RoHS-compatible |
Product Description:
Factory strength display:
Features:
- Product Name: PTC Chip
- Name: PTC Constant Temperature Heating Piece
- Curie Temperature: (50℃-310℃)±7℃
- Withstand Voltage(Ub) : 20V-220V/60S
- Rated Zero-power Resistance: 1Ω-10000Ω
- Surface Temperature: (50℃-300℃)±10℃
Technical Parameters:
| Name | PTC Constant Temperature Heating Piece |
|---|
| Dimension | 5mm -20mm |
|---|
| Surface Temperature | (50℃-300℃)±10℃ |
|---|
| Rated Zero-power Resistance | 1Ω-10000Ω |
|---|
| Curie Temperature | (50℃-310℃)±7℃ |
|---|
| Material | Ceramics |
|---|
| Withstand Voltage(Ub) | 20V-220V/60S |
|---|
Applications:
The LK-PTC PTC Heater is a revolutionary heating solution that offers a wide range of
applications. This PTC Constant Temperature Heating Piece features a Curie Temperature of (50℃-310℃)±7℃, and a Rated Zero-power Resistance of 1Ω-10000Ω. With its 5mm -20mm dimension and Ceramics material, this PTC Heating Chip is perfect for a variety of
applications, from medical and industrial to consumer electronics.
The LK-PTC PTC Heater is a reliable and efficient heating solution,
giving users the ability to heat efficiently and securely. Its wide
range of applications makes it perfect for a variety of tasks,
including industrial processes, medical applications, and consumer
electronics.
This PTC Ceramic Heater has been designed to withstand extreme temperatures, providing a
reliable, safe, and efficient heating solution. With its Model Number of 5mm-20mm, and Place of Origin of China, the LK-PTC PTC Heater is the perfect choice for any
application where temperature control is essential.
Customization:
Customized PTC Chip
The PTC Chip is manufactured by LK-PTC, with model number 5mm-20mm. It is made
in China, and has a dimension of 5mm -20mm. The PTC Constant
Temperature Heating Piece is made with ceramics, and has a rated
zero-power resistance of 1Ω-10000Ω, with a surface temperature
range of (50℃-300℃)±10℃.
The LK-PTC PTC Chip is ideal for heating chip applications, PTC
start relay chip applications, and all other PTC chip requirements.
Packing and Shipping:
Packaging and Shipping
PTC Chip will be packaged in a standard durable cardboard box, with
a secure lid and a reinforced bottom. The box will contain a soft
foam insert to secure the device and prevent any damage during
transit. The box will also contain an instruction manual and a
warranty card.
We will ship PTC Chip using the most reliable and secure courier
services available. Depending on the destination, we will ship
either through air or sea freight. Our team will ensure that the
product is safely packaged and shipped in a timely manner.
FAQ:
Q1: What is the Brand Name of PTC Chip?
A1: The Brand Name of PTC Chip is LK-PTC.
Q2: What is the Model Number of PTC Chip?
A2: The Model Number of PTC Chip is 5mm-20mm.
Q3: Where is PTC Chip made?
A3: PTC Chip is made in China.
Q4: What are the features of PTC Chip?
A4: PTC Chip features excellent surge protection, high-temperature
performance, and stable performance.
Q5: What are the applications of PTC Chip?
A5: PTC Chip is widely used in automotive, medical, consumer
electronics, communication, and other industries.
