PTC Thermistor For Motor Starting 16*2.5mm 4R7 Constant Temperature
PTC Heating Piece Ceramic Heating Piece For Starting
Factory strength:
Product Description:

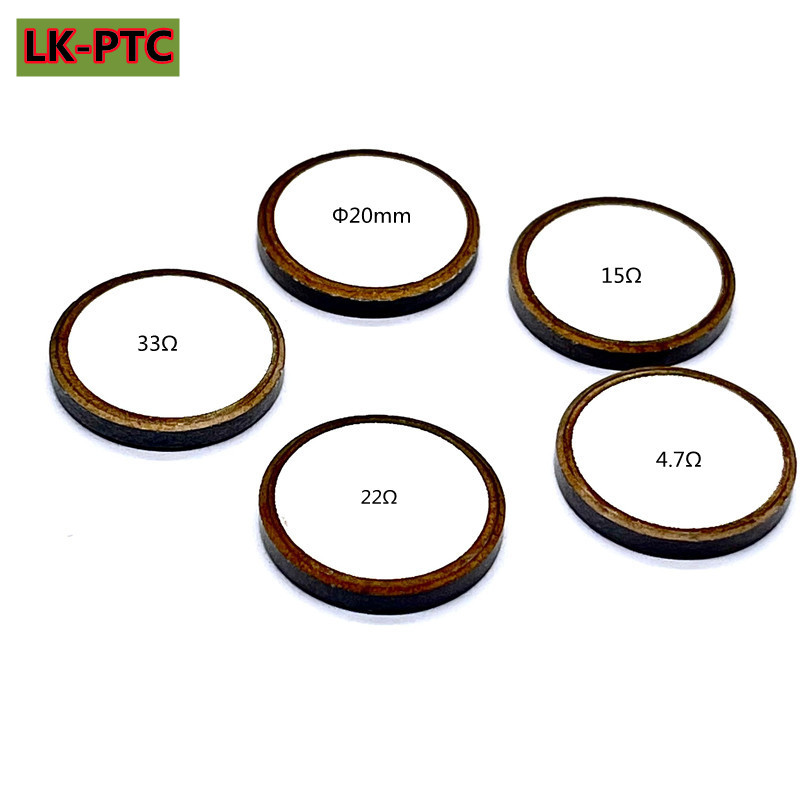

The PTC Chip is a constant temperature heating piece made from high-grade
ceramics. The Curie temperature of the PTC chip ranges from 50℃ to
310℃, with a tolerance of ±7℃. This PTC chip can withstand voltage
from 20V to 220V for up to 60 seconds. The rated zero-power
resistance of the chip ranges from 1Ω to 10000Ω. It is widely used
in PTC starter chips, PTC start relay chips, and PTC heaters chips.
Features:
- Product Name: PTC Chip
- Withstand Voltage(Ub) : 20V-220V/60S
- Surface Temperature: (50℃-300℃)±10℃
- Curie Temperature: (50℃-310℃)±7℃
- Material: Ceramics
- Dimension: 5mm -20mm
- PTC Ceramic Heater
- PTC Heatrs
- PTC Ceramic Heater Chip
Technical Parameters:
| Parameter | Value |
|---|
| Name | PTC Constant Temperature Heating Piece |
| Withstand Voltage(Ub) | 20V-220V/60S |
| Rated Zero-power Resistance | 1Ω-10000Ω |

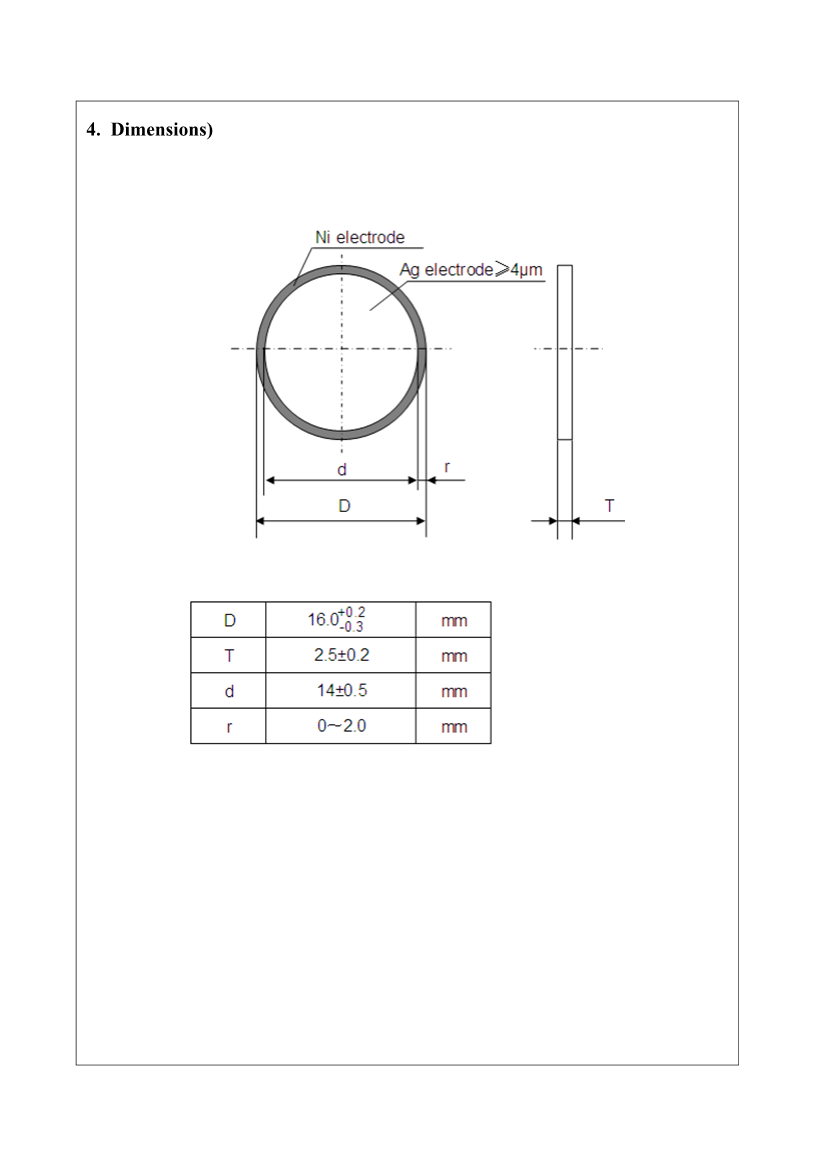

| Dimension | 5mm -20mm |
| Material | Ceramics |
| Curie Temperature | (50℃-310℃)±7℃ |
| Surface Temperature | (50℃-300℃)±10℃ |
Applications:
LK-PTC PTC Constant Temperature Heating Piece is a reliable and
cost-effective solution for a variety of applications. It is made
of high-quality ceramics, with a Curie Temperature range of
(50℃-310℃)±7℃ and a Surface Temperature range of (50℃-300℃)±10℃.
The PTC Constant Temperature Heating Piece is available in 5mm
-20mm dimensions, making it a perfect fit for any application.
The PTC Constant Temperature Heating Piece is ideal for use in a
variety of applications, such as power supplies, motor starters,
and even home appliances. It is also commonly used in PTC heaters,
PTC start relay chips, and other electronic components. The PTC
Constant Temperature Heating Piece can help to reduce the amount of
energy consumed and improve the efficiency of the system, while
still providing reliable and safe performance.
LK-PTC PTC Constant Temperature Heating Piece is an excellent
choice for those who are looking for a reliable and cost-effective
solution for their applications. It is available in a variety of
sizes and is built with high-quality materials for reliable and
long-lasting performance. Its Curie Temperature range and Surface
Temperature range make it suitable for a variety of applications
and offer a reliable and cost-effective solution.
Customization:
PTC Chip Customization Service
LK-PTC provides a comprehensive customization service for PTC Start
Relay Chip, PTC Ceramic Heater, and PTC Ceramic Heater Element. Our
products feature model number 5mm-20mm, made of high-quality
ceramics and can withstand voltages of 20V-220V/60S. The curie
temperature is (50℃-310℃)±7℃, with dimensions of 5mm-20mm. The
surface temperature is (50℃-300℃)±10℃.
Packing and Shipping:
Packaging and Shipping for PTC Chip
Packaging
PTC Chip will be packaged in a sealed plastic container, measuring
5” x 5” x 5”, to protect the product during shipment.
Shipping
PTC Chip will be shipped using a reliable courier service, such as
FedEx or UPS. Delivery times may vary depending on the destination,
but typically takes 2-3 business days.
FAQ:
- Q1: What is the brand name of the PTC Chip?
- A1: The brand name of the PTC Chip is LK-PTC.
- Q2: What is the model number of the PTC Chip?
- A2: The model number of the PTC Chip is 5mm-20mm.
- Q3: Where is the PTC Chip from?
- A3: The PTC Chip is from China.
- Q4: What is the key feature of the PTC Chip?
- A4: The key feature of the PTC Chip is its fast response time and
high temperature resistance.
- Q5: What is the application range of the PTC Chip?
- A5: The PTC Chip can be used in various industries, such as
automotive, home appliance, industrial control and medical
equipment.
