MZ4 P7 S0820 – 18 N V14
(1)(2)(3) (4)(5)(6)
(1)――Heating PTC thermistor
(2)――Curie Temperature
P6――60℃ P7――70℃
X1――110℃ X8――180℃
Y2――220℃ Y8――270℃
(3)――Disc Size
S0870――Ф8.0*7.0
S202030――L20*W20*T3.0
(4)――Resistance at 25℃
3R5――3.5Ω
150――15Ω
181――180Ω
122――1200Ω
(5)――Tolerance of Resistance
M――±20％
N――±30％
X――±25％
S――Specialties
(6)――Rated Voltage
3V7――3.7V
V14――14V
V110――110V
V265――265V
6.R-T CURVE
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PTC Heater Element 170C 200C 220C 250C 220V Constant Temperature
Heating Thermistor for Hair Iron Hair Straightener
Product Description
The constant temperature heating characteristic of the PTC
thermistor for constant temperature heating is determined by the
material characteristics. The principle is that when the PTC
thermistor is energized, the temperature of the component body
rises due to self-heating, the resistance value enters the jump
zone, and the current drops rapidly, so the surface temperature of
the constant temperature heating PTC thermistor continues to
maintain a constant value. This temperature is only related to the
Curie temperature of the PTC thermistor and the applied voltage,
and has nothing to do with the ambient temperature.
PTC constant temperature heater is a heating device designed by
using constant temperature heating PTC thermistor constant
temperature heating characteristics. In the occasion of low and
medium power heating, PTC heater has the advantages of constant
temperature heating, no open flame, high heat conversion rate,
minimal influence of power supply voltage, long natural life and
other traditional heating elements. Its application in electric
heating appliances is becoming more and more popular. Favored by
R&D engineers.
Constant temperature: The heating PTC thermistor can be made into a
variety of shapes and structures and different specifications, the
common ones are wafer shape, rectangle, strip shape, ring and
honeycomb porous shape, etc. Combining the above-mentioned PTC
heating elements and metal components can form various forms of
high-power PTC heaters.
Application Design
Using constant temperature: The constant temperature heating
principle characteristics of heating PTC thermistors can be
designed and applied to hair straighteners, hair clips, hair
splints, ion perm, perm, perm board, ceramic perm board, hair
tongs, curling iron, electric comb, Negative ion hair irons,
massagers, mosquito machines, flood killers, flood repellents,
mosquito coils, perfumers, perfumers, hot melt glue guns, foot
washing heaters, glue machines, thermos cups, water boilers, coffee
machines, Coffee insulation, coffee heater, water dispenser, hot
and cold water dispenser, milk heater, water heater, shower heater,
electric mosquito repellent, hand warmer, dryer, electric hot
plate, electric soup bucket, electric soldering iron, electric
stick Combines, curling irons, showers, heaters, drying rooms,
electric heaters, electric heaters, air conditioning, air
conditioning heating, heaters, air heating, soup pots, shoe dryers,
shoe dryers, foot warmers, electric heating Plate, spectrum
analyzer, spectrum therapy, physiotherapy, infrared heating,
clothes dryer, motorcycle carburetor, electric humidifier, electric
instrument moisture-proof heating, small crystal device constant
temperature bath, constant temperature incubator, electronic
thermos, incubator, Insulation cup, insulation plate, insulation
cabinet, insulation table, electric heating plate, hyperthermia,
hot coffee machine, steam beauty, wax melting device, steam
generator, humidifier, humidifier, chocolate extruder, hot
treasure, electricity Soldering iron, acupuncture, urinary
catheter, foot warmer, hand dryer, cotton candy machine, massager,
liquefied gas cylinder heating, small warm air heater, hair dryer,
room warmer, dryer, drying cabinet, clothes dryer , Industrial
drying equipment, electric dust collector heater, train locomotive
electric heating, mold heating, control cabinet heating,
moisture-proof, moisture-proof monitor, electric oven, electric
oven, infusion treasure, medical equipment, household appliances,
household appliances, small Home appliances... etc.
1. PTC Heating Element

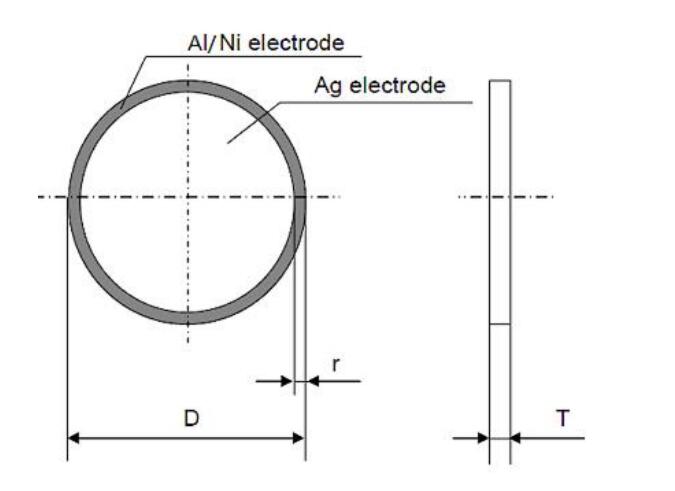

Structure
Models and Parameters
| Resistance in normal temperature 25℃/Ω | Surface Temperature /℃ | Max Voltage /V | Diameter D/mm | Length L/mm | Width W/mm | Thickness T/mm | Application |
| 500～1500 | 50 | 270 | 8 | | | 3 | Physiotherapy |
| 300～800 | 85 | 140 | | 16 | 11 | 2.5 | Massage equipment |
| 150～400 | 90 | 140 | | 16 | 11 | 2.5 | Massage equipment |
| 600~1500 | 100 | 270 | 20 | | | 2.5 | Massage equipment |
| 500～1500 | 110 | 270 | | 16 | 11 | 2.2 | Shoe dryer |
| 500～1500 | 130 | 270 | 20 | | | 2.2 | Heating plate |
| 200～800 | 150 | 140 | 10.8 | | | 2.2 | Degaussing heating |
| 200～800 | 155 | 270 | 10.8 | | | 2.2 | Wax melter |
| 500～1500 | 155 | 270 | 10.8 | | | 2.2 | Heating plate |
| 1.5~5K | 170 | 140 | | 5 | 4 | 1.6 | Delay switch |
| 150～500 | 175 | 140 | 10.8 | | | 2.2 | Heating plate |
| 500～1500 | 180 | 270 | 10.8 | | | 2.2 | Plastic clip |
| 200～800 | 185 | 270 | 10.8 | | | 2.2 | Degaussing heating |
| 1～3K | 195 | 270 | 8 | | | 2.5 | Mosquito killer |
| 800～2K | 230 | 270 | | 19 | 12 | 2.2 | Curling iron |
| 800～2K | 250 | 270 | 13 | | | 2.5 | Mosquito killer |
| 2～5K | 250 | 270 | 20 | | | 2.5 | Water heating |
| 800～2K | 250 | 140 | | 23.5 | 10 | 2.2 | Heating plate |
| 800～2K | 255 | 270 | | 23.5 | 10 | 2.2 | Hair straightener, heating plate |
| 500～2K | 275 | 270 | | 35 | 10 | 2.1 | Hair straightener, heating plate |
| 300~800 | 280 | 140 | | 24 | 15 | 2.5 | Air heating |
| 0.8~3.5K | 280 | 270 | | 24 | 15 | 2.5 | Air heating |
Use Attention
1) The PTC heater has the characteristics of automatic constant
temperature and does not require a temperature control system. It
is the core element of all PTC heaters.
2) There are four kinds of electrodes for customers to choose:
electroless nickel + silver, melt-blown metal aluminum, printed
aluminum + silver, printed aluminum.
3) The working voltage is very wide. When the operating voltage
changes twice, the change in surface temperature is very small.
4) When multiple PTC heaters are used together, they should be
connected in parallel, not in series.
5) This product has no lead wires and insulation layer. If the
customer cannot use it, please choose an insulation film type
product or a metal shell type product.

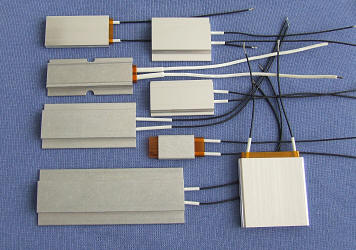

2. Metal Shell Type PTC Heater
Structure
Models and Parameters
| Length/mm | Width/mm | Thickness/mm | Surface Temperature /℃ | Insulation withstand voltage /V | Use voltage /V | Application |
| 30~120 | 20 | 5.0 | 60~280 | 3750 | 100~240 | Constant temperature heating |
| 30~120 | 30 | 6.0 | 60~280 | 3750 | 100~240 | Constant temperature heating |
| 30~120 | 33 | 7.0 | 60~280 | 3750 | 100~240 | Constant temperature heating |
| 30~120 | 35 | 7.0 | 60~280 | 3750 | 100~240 | Constant temperature heating |
| 30~120 | 40 | 7.0 | 60~280 | 3750 | 100~240 | Constant temperature heating |
| 30~120 | 43 | 7.0 | 60~280 | 3750 | 100~240 | Constant temperature heating |
| 30~120 | 46 | 7.0 | 60~280 | 3750 | 100~240 | Constant temperature heating |
| 30~120 | 56 | 7.0 | 60~280 | 3750 | 100~240 | Constant temperature heating |
According to customer requirements, the temperature can be designed
between 60°C and 280*C, and the operating voltage can be designed
between 12V and 240V.
Use Attention
1) The heating power increases from large to small after power-on,
and finally stabilizes. The stable power is related to the use
conditions. For the same PTC heater, the power may be several times
different if the use conditions are different. The faster the heat
dissipation, the greater the stable power; the higher the surface
temperature of the PTC, the higher the power.
2) The surface temperature of the PTC heating element is controlled
by the PTC itself, or it can be controlled by disconnecting the
circuit, but the surface temperature cannot be controlled by
adjusting the voltage.
3) PTC itself is highly reliable and has a long life span. However,
if the product is improperly assembled, the power and temperature
of the product will be unstable.
4) When multiple PTCs are used together, they should be connected
in parallel, not in series.
3. Insulating Film Type PTC Heater
Structure
Models and Parameters
| Length/mm | Width/mm | Thickness/mm | Surface Temperature /℃ | Insulation withstand voltage /V | Use voltage /V | Application |
| 24 | 10 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 24 | 15 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 35 | 8 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 35 | 10 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 35 | 13 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 35 | 15 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 48 | 8 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 48 | 10 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 48 | 13 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 48 | 15 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 60 | 8 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 60 | 10 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 60 | 13 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 60 | 15 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 70 | 8 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 70 | 10 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 70 | 13 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| 70 | 15 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
| Above 70 | 15 | 3.0~3.5 | 85~280 | 3750 | 100~240 | Constant temperature heating |
According to customer requirements, the temperature can be designed
between 50^C and 280C, and the operating voltage can be designed
between 3V and 240V.
Use Attention
1) The heating power increases from large to small after power-on,
and finally stabilizes. The stable power is related to the use
conditions. For the same PTC heater, the power may be several times
different if the use conditions are different. The faster the heat
dissipation, the greater the stable power; the higher the surface
temperature of the PTC, the higher the power.
2) The surface temperature of the PTC heating element is controlled
by the PTC itself, or it can be controlled by disconnecting the
circuit, but the surface temperature cannot be controlled by
adjusting the voltage.
3) PTC itself is highly reliable and has a long life span. However,
if the product is improperly assembled, the power and temperature
of the product will be unstable.
4) When multiple PTCs are used together, they should be connected
in parallel, not in series.
