5x20mm Miniature Cartridge Fuse 250V 1A-16A Glass Tube

Ask Lasest Price
Brand Name :	LinKun
Model Number :	521 527 511 Series
Certification :	UL ROHS CCC CUL VDE
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	100,000 pieces/month
Delivery Time :	5-7 days

Add to Cart

Product Details
Company Profile

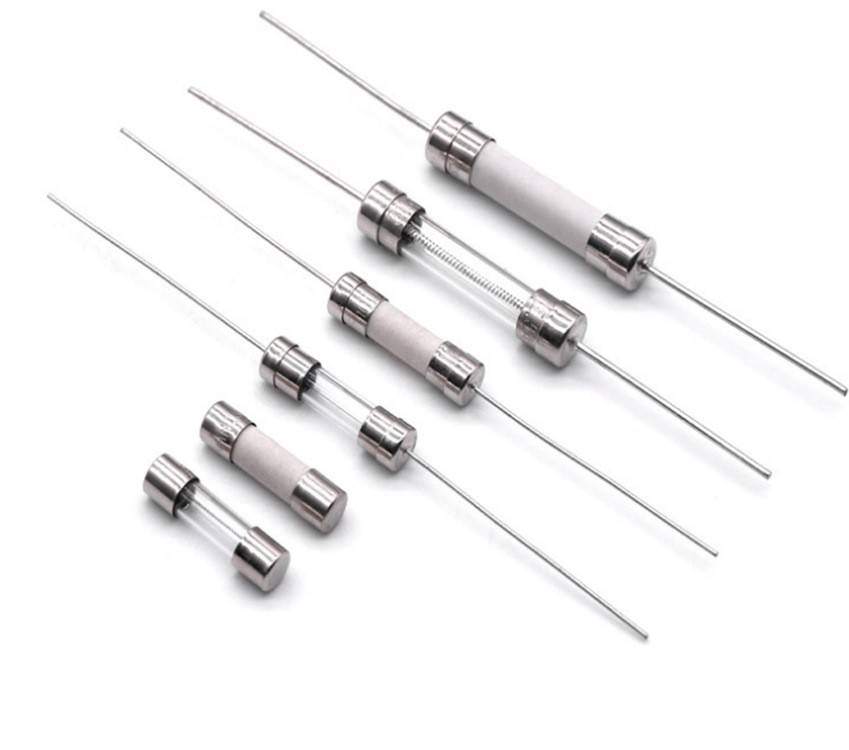

5x20mm Miniature Cartridge Fuse 250V 1A-16A Glass Tube

Product Description:

5x20 Quick Blow Fast Acting Glass Tube Fuse 5x20mm Miniature Cartridge Fuse

Series: 5x20mm tube glass fuse

product keywords: No.521/5*20mm fast acting cartridge fuse

521 series is fast-acting low break fuse, suitable for AC voltage 250V, breaking capacity less than 100A protection circuit.
521 series fuses are mainly used in electronic equipment and equipment protection circuits.

Time-current characteristics: fast fusing (F)

Cutting capacity: 10kA /125V AC, 100A/250V AC

Standard: IEC 60127-2/II

Certifications: cURus,CQC,VDE,PSE,CCC

Material: shell - glass tube, metal cap - nickel plated brass, axial lead - nickel plated cap, tin plated copper wire

Operating temperature: -55℃ ~ +125℃

Solderability: 260℃≤5 seconds (wave soldering);350℃≤3 seconds (manual welding)

Welding temperature bearing capacity: 260℃, 10 seconds

Storage condition: +10℃ ~ +60℃;The annual average relative humidity is less than 75%, and the relative humidity reaches 95% for a maximum of not more than 30 days

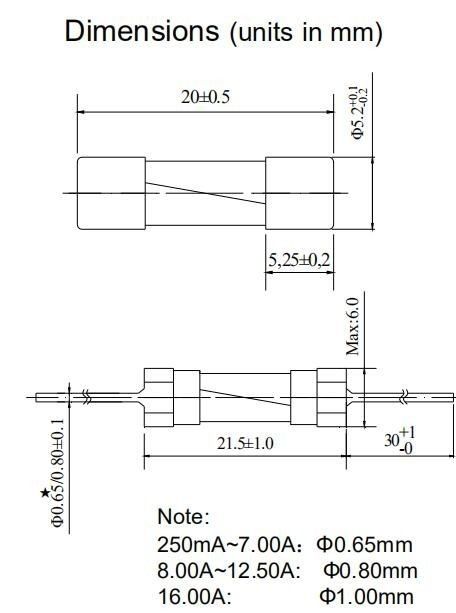

Time vs Current Characteristics: IEC 60127-2/II
Rated current	150%	210%	275%	400%	1000%
250mA~6.3A	>1h	<30min	50ms~2 s	10 ms~300 ms	≤20ms
8A~10A	>1h	<30min	50ms~2 s	10 ms~400 ms	≤40ms
12.5A~16A	>30min	<30min	50ms~3 s	10 ms~600 ms	≤80ms

Amp Code	Rated Current	Rated Voltage	Voltage Drop Max(mV)	Max.Power Dissipation(W)	Typical Cold Resistance (mΩ)	Nominal Melting I2t(A2sec)	Breaking Capacity	Approvals
								cURus	CQC	VDE	PSE	CCC

0250	250mA	125 V AC 250 V AC	1400	1.6	570	0.026	10KA/125V AC 100A/250V AC	●	○	○	○	○
0315	315mA		1300	1.6	860	0.109		●	○	●	○	●
0400	400mA		1200	1.6	540	0.240		●	○	○	○	●
0500	500mA		1000	1.6	220	0.168		●	○	●	○	●
0630	630mA		650	1.6	285	0.723		●	○	●	○	●
0800	800mA		240	1.6	120	0.757		●	○	●	○	●
1100	1.00A		200	1.6	101	1.64		●	○	●	●	●
1125	1.25A		200	1.6	65.0	2.56		●	○	●	●	●
1150	1.50A		190	1.6	51.47	3.76		●	○	○	○	○
1160	1.60A		190	1.6	50.35	4.00		●	○	●	●	●
1200	2.00A		170	1.6	40.65	5.76		●	○	●	●	●
1250	2.50A		170	1.6	30.00	9.61		●	○	●	●	●
1300	3.00A		150	2.5	25.00	13.9		●	○	○	○	○
1315	3.15A		150	2.5	24.00	20.7		●	○	●	●	●
1400	4.00A		130	2.5	17.60	22.1		●	○	●	●	●
1500	5.00A		130	2.5	13.50	41.0		●	○	●	●	●
1630	6.30A		130	2.5	10.60	70.6		●	○	●	●	●
1700	7.00A		130	2.5	9.48	106		●	○	○	○	○
1800	8.00A		130	4	7.50	164		●	●	●	●	○
2100	10.00A		130	4	6.30	272		●	●	●	●	○
2125	12.50A		100	6	3.80	702		○	●	○	○	○
2160	16.00A		100	6	3.10	1332		○	●	○	○	○

Note: (1) Permissible continuous operating current is 100% at ambient temperature of 23°C (73.4°F)

(2) The cURus certification by 125V and 250V; the VDE certification with 8A~10A by 125V and 250V; the others certification by 250V.

(3) The current values used for calculating I2T should be within the standard range of 8ms ~ 10ms.

Series: 5x20mm tube glass fuse

Product keywords: No.527/5*20mm 5x20 quick blow glass fuse

527 series is fast-acting and low break fuse, suitable for 250V AC voltage, breaking capacity less than 125A protection circuit.
527 series fuses are mainly used in electronic equipment and equipment protection circuits.

Time-current characteristics: fast fusing (F)

Dividing power: 12.5A:125A@250Vac,16A:160A@250V AC

Standard: GB/T9364.7

Certification passed: CQC

Material: shell - glass tube, metal cap - nickel plated brass, lead cap - nickel - plated cap, tin - plated copper wire

Operating temperature: -55℃ ~ +125℃

Solderability: 260℃≤5 seconds (wave soldering);350℃≤3 seconds (manual welding)

Welding temperature bearing capacity: 260℃, 10 seconds;280℃, 5 seconds;

Storage condition: +10℃ ~ +60℃;The annual average relative humidity is less than 75%, and the relative humidity reaches 95% for a maximum of not more than 30 days

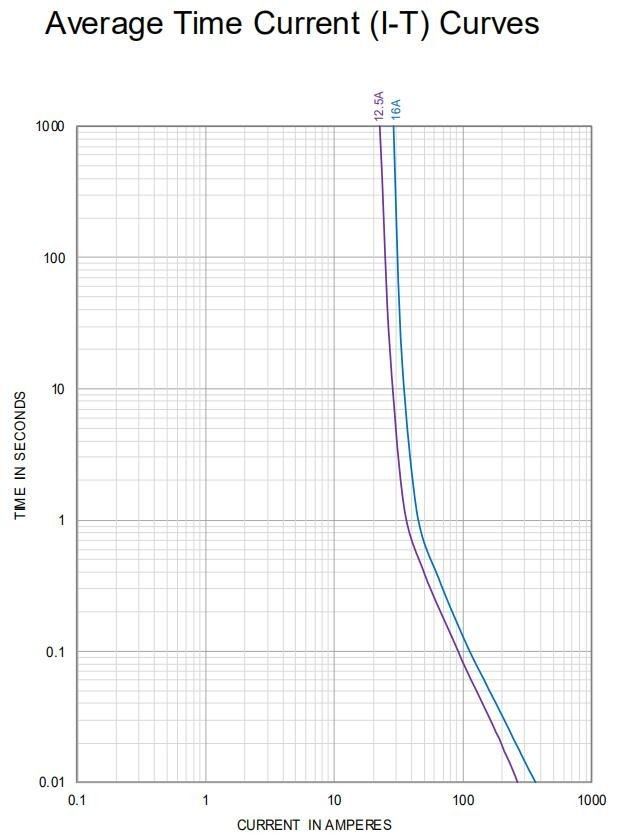

Time Vs Current Characteristics: GB/T9364.7
Rated current	150%	210%	275%	400%	1000%
12.5A~16A	>30min	<30min	50ms~3 s	10 ms~600 ms	≤80ms

Electrical Characteristics at 25℃

Amp Code

Rated Current

Rated Voltage

Max. Voltage Drop(mV)

Max. Power Dissipation
(W)

Typical Cold Resistance (mΩ)

Nominal Melting I²t(A²sec)

Breaking Capacity

Approvals

CQC

2125

12.50A

250V AC

93.00

1.1

3.8

702.25

125A@250V AC

●

2160

16.00A

68.75

1.1

3.0

1332.3

160A@250V AC

●

Note: 1.Permissible continuous operating current is 100% at ambient temperature of 23°C (73.4°F)
2. The current values used for calculating I2T should be within the standard range of 8ms ~ 10ms.

Series: 5x20mm tube glass fuse
Product keywords: No.511/5*20mm 5x20mm miniature cartridge fuse

511 series is quick-acting and low break fuse, suitable for AC voltage 250V, breaking capacity less than 200A protection circuit.
511 series fuses are mainly used in electronic equipment and equipment protection circuits.

Time-current characteristics: fast-acting fusing (F)

Breaking capacity: 10kA@125V AC / 100A@250V AC 50-60Hz Cosφ0.7 ～0.8[1A~3A],10kA@125V AC,200A@250V AC 50-60Hz Cosφ0.7 ～0.8[5A] 100A@125Vac100A@250V AC50-60Hz Cosφ0.7 ～0.8[7A~15A]

Standard: UL 248-14

Accreditation: cURus, PSE

Material: shell - glass tube, metal cap - nickel - plated brass, lead cap - nickel - plated cap, tin - plated copper wire

Operating temperature: -55℃ ~ +125℃

Solderability: 260℃≤5 seconds (wave soldering);350℃≤3 seconds (manual welding)

Welding temperature bearing capacity: 260℃, 10 seconds;280℃, 5 seconds;

Storage condition: +10℃ ~ +60℃;The annual average relative humidity is less than 75%, and the relative humidity reaches 95% for a maximum of not more than 30 days

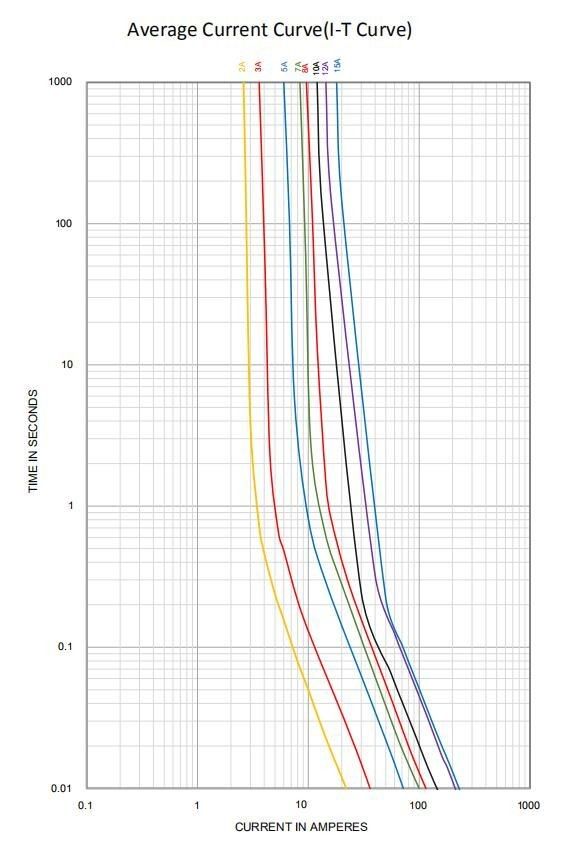

Time Vs Current Characteristics: UL 248-14
Rated current	100%	135%	200%
250mA~15A	>4h	<1h	<5s

Electrical Characteristics at 25℃
Amp	Rated Current	Max Voltage	Nominal Melting I²t(A²sec)	Typical Cold Resistance (mΩ)	Breaking Capacity	Approval
						s cURus	PSE
1100	1.00A	250V AC	2.89	106.3	10kA@125V AC 100A@250V AC 50-60Hz Cosφ0.7～0.8	●	○
1200	2.00A		4.84	47.80		●	○
1250	2.50A		8.72	37.72		●	○
1300	3.00A		12.96	32.00		●	○
1500	5.00A		51.84	17.00	10kA@125V AC 200A@250V AC 50-60Hz Cosφ0.7～0.8	●	○
1700	7.00A		100	10.08	100A@125V AC 100A@250V AC 50-60Hz Cosφ0.7～0.8	●	○
1800	8.00A		132.2	9.70		●	○
2100	10.00A		204.5	7.80		●	○
2120	12.00A		289	5.00		●	○
2150	15.00A		441	4.62		●	●

Note: (1) Permissible continuous operating current is 100% at ambient temperature of 23°C (73.4°F)

(2) The cURus certification by 125V and 250V, the PSE certification only by 250V.
