Product Description:
Electrical Axial Lead 250V Cartridge Quick Blow Fast Acting
3.6x10mm Tube Glass Fuse
Series:3.6x10mm tube glass fuse
Product keyword:NO.331/3.6*10mm 3.6x10mm glass fuse
331 series are fast-acting and low breaking capacity fuses,
suitable for 250V AC voltage, breaking capacity less than 63A
protection circuit.
331 series fuses are mainly used in lighting, power supply and
power adapters.
Time-current characteristics: fast fusing (F)
Dividing ability: 50A@125Vac[250mA~6.3A], 35A or
10In@250Vac[250mA~6.3A], 50A@250Vac[7~10A]
Standard: UL 248-14
Accredited: cURus, CQC, PSE, TUV
Material: shell-glass tube, metal cap-nickel-plated brass, lead
cap-nickel-plated cap, tin-plated copper wire
Operating temperature: -55℃ ~ +125℃
Solderability: 260℃≤5 seconds (wave soldering);350℃≤3 seconds
(manual welding)
Welding temperature bearing capacity: 260℃, 10 seconds;280℃, 5
seconds;
Storage condition: +10℃ ~ +60℃;The annual average relative humidity
is less than 75%, and the relative humidity reaches 95% for a
maximum of not more than 30 days
| Time vs Current Characteristics: UL248-14 |
| Rated Current | 150% | 210% | 275% | 400% | 1000% |
| 250mA~5A | >1h | <30min | 10ms~3s | 3ms~300ms | ≤20ms |
| 6.3A~10A | >1h | <30min | 50ms~10s | 5ms~400ms | ≤20ms |
Electrical Characteristics at 25℃ |
Amp Code | Ratede Current | | Max.Power Dissipation (mW) | Typical cold Resistance(mΩ) | Nominal Melting I²t(A²sec) | Breaking Capacity | Approvals |
| | | | | | | cULus | PSE | TUV | CCC |
| | | | | | | 125V | 250V | 250V | 250V | 250V |
| 0500 | 500mA | 350 | 459 | 137.80 | 0.384 |
50A/125V AC 35A or 10ln/250V AC
| ● | ● | ○ | ● | ● |
| 0630 | 630mA | 320 | 529 | 95.23 | 0.656 | ● | ● | ○ | ● | ● |
| 0800 | 800mA | 300 | 630 | 123.75 | 1.00 | ● | ● | ○ | ● | ● |
| 1100 | 1.00A | 280 | 375 | 55.00 | 2.25 | ● | ● | ● | ● | ● |
| 1125 | 1.25A | 280 | 919 | 43.00 | 2.57 | ● | ● | ● | ○ | ○ |
| 1160 | 1.60A | 250 | 1050 | 37.80 | 2.89 | ● | ● | ● | ● | ● |
| 1200 | 2.00A | 240 | 1260 | 26.00 | 2.25 | ● | ● | ● | ● | ● |
| 1250 | 2.50A | 200 | 1313 | 19.90 | 6.75 | ● | ● | ● | ● | ● |
| 1315 | 3.15A | 180 | 1488 | 15.00 | 13.69 | ● | ● | ● | ● | ● |
| 1400 | 4.00A | 160 | 1680 | 11.22 | 22.09 | ● | ● | ● | ● | ● |
| 1500 | 5.00A | 150 | 1969 | 8.78 | 39.69 | ● | ● | ● | ● | ● |
| 1630 | 6.30A | 150 | 1969 | 7.00 | 62.41 | ● | ● | ○ | ● | ● |
| 1800 | 8.00A | 150 | 1969 | 5.83 | 92.16 | 50A/125V AC 50A/250V AC | ● | ● | ○ | ○ | ○ |
| 2100 | 10.00A | 150 | 1969 | 4.80 | 156 | ● | ● | ○ | ○ | ○ |
Note: 1.Permissible continuous operating current is 100% at ambient
temperature of 23°C (73.4°F)
2.The current values used for calculating I2T should be within the
standard range of 8ms ~ 10ms.

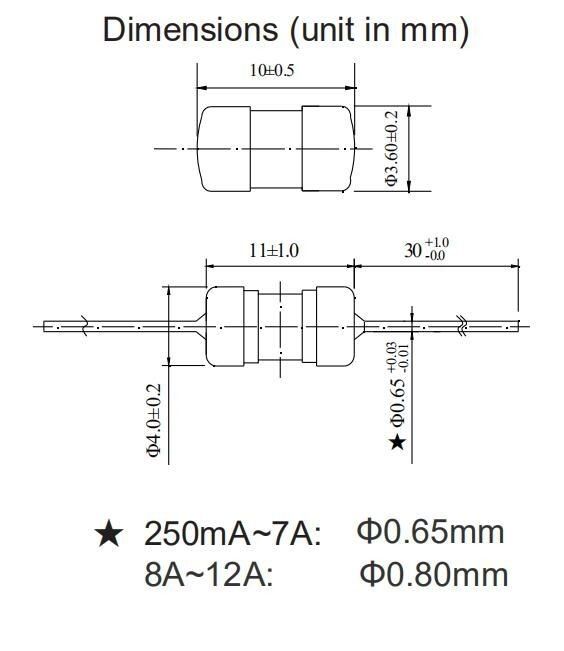

Series:3x10mm tube glass fuse
Product keyword:NO.311/3*10mm fast acting glass fuse
Series 311 are fast blow and low breaking capacity fuses, suitable
for 250V AC voltage, breaking capacity less than 50A protection
circuit.
311 series fuses are mainly used in lighting, power supply and
power adapters.
Time-current characteristics: fast-acting fusing (F)
Dividing ability: 50A@250Vac / 50A@125Vac
Standard: UL 248-14
Accredited: cULus
Material: shell - glass tube, metal cap - nickel plated brass, lead
cap - nickel - plated cap, tin - plated copper wire
Operating temperature: -55℃ ~ +125℃
Solderability: 260℃≤5 seconds (wave soldering);350℃≤3 seconds
(manual welding)
Welding temperature bearing capacity: 260℃, 10 seconds;280℃, 5
seconds;
Storage condition: +10℃ ~ +60℃;The annual average relative humidity
is less than 75%, and the relative humidity reaches 95% for a
maximum of not more than 30 days

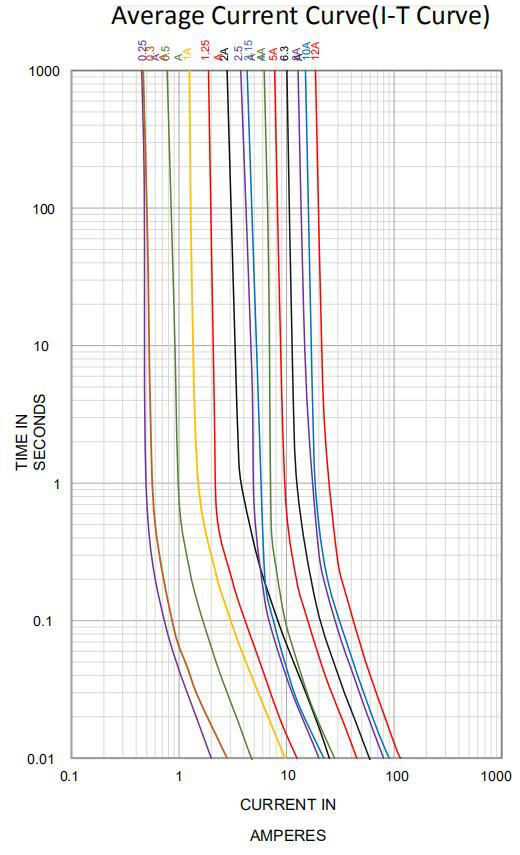

| Time vs Current Characteristics: UL248-14 |
| Rated Current | 100% | 200% |
| 250mA~12A | >4h | <5s |
| Electrical Characteristics at 25℃ |
Amp Code | Ratede Current | Rated Voltage | Typical cold Resistance(mΩ) | Nominal Melting I²t(A²sec) | Breaking Capacity | Approvals |
| |
250V AC
| | | 50A @ 250V AC 50A @ 125V AC
| cULus |
| 0250 | 250mA | 540 | 0.040 | 125V | 250V |
| 0300 | 300mA | 335 | 0.078 | ● | ● |
| 0500 | 500mA | 182 | 0.225 | ● | ● |
| 0630 | 630mA | 145 | 0.357 | ● | ● |
| 0800 | 800mA | 131 | 0.576 | ● | ● |
| 1100 | 1.00A | 70.0 | 0.940 | ● | ● |
| 1125 | 1.25A | 62.8 | 1.56 | ● | ● |
| 1150 | 1.50A | 52.0 | 3.45 | ● | ● |
| 1200 | 2.00A | 31.5 | 6.25 | ● | ● |
| 1250 | 2.50A | 32.3 | 4.00 | ● | ● |
| 1300 | 3.00A | 22.0 | 11.9 | ● | ● |
| 1315 | 3.15A | 23.1 | 4.97 | ● | ● |
| 1400 | 4.00A | 15.5 | 7.84 | ● | ● |
| 1500 | 5.00A | 12.0 | 20.3 | ● | ● |
| 1630 | 6.30A | 9.73 | 34.5 | ● | ● |
| 1700 | 7.00A | 8.20 | 48.8 | ● | ● |
| 1800 | 8.00A | 7.80 | 64.0 | ● | ● |
| 2100 | 10.00A | 6.31 | 81.0 | ● | ● |
| 2120 | 12.00A | 5.31 | 132 | ● | ● |
Note: 1.Permissible continuous operating current is 100% at ambient
temperature of 23°C (73.4°F)
2.The current values used for calculating I2T should be within the
standard range of 8ms ~ 10ms.
Miniature Cartridge Fuse
The Miniature Cartridge Fuse is a small and compact fuse designed
for various electrical applications. It is also known as a Tiny,
Micro, or Compact Cartridge Fuse. This fuse is used to provide
overcurrent protection in circuits with low voltage ratings.
Product Description
The Miniature Cartridge Fuse is a type of fuse that has axial
leads, which are tin-plated copper wires. This design allows for
easy installation and replacement in applications with limited
space. The tin-plated copper wires also provide excellent
conductivity and corrosion resistance, ensuring a stable and
reliable electrical connection.
Storage Conditions
The recommended storage conditions for the Miniature Cartridge Fuse
are between +10℃ to +60℃. It is important to store the fuse in a
dry and well-ventilated area to prevent exposure to moisture, which
can affect its performance.
Product Specifications
- Rated Voltage: 250V AC
- Standard: IEC 60127-2/Ⅱ; GB/T9364.7
- Main Characteristics: Miniature Cartridge Fuse; Fast-Acting(F)
The Miniature Cartridge Fuse is compliant with IEC 60127-2/Ⅱ and
GB/T9364.7 standards, ensuring its quality and safety. It is
designed to be fast-acting, which means it will quickly interrupt
the circuit in case of overcurrent, protecting the circuit and its
components from damage.
Applications
The Miniature Cartridge Fuse is commonly used in various electronic
devices and appliances, such as computers, televisions, and home
appliances. It is also suitable for use in automotive, industrial,
and medical equipment.
Conclusion
The Miniature Cartridge Fuse is a reliable and compact fuse that
provides overcurrent protection in low voltage circuits. Its axial
leads and tin-plated copper wires make it easy to install and
ensure a stable connection. With its fast-acting characteristic and
compliance with international standards, the Miniature Cartridge
Fuse is a top choice for various electrical applications.
