Product Description:
Subminiature Cartridge Slow Blow Time-Lag 3x10mm 3.6x10mm Tube
Glass Fuse
Series:3x10mm glass fuse
Product keywords: No.332/3*10mm 3.6x10mm tube glass fuse
332 series are time-lag and low breaking capacity fuses, suitable
for 250V AC voltage, breaking capacity less than 50A protection
circuit.
332 series fuses are mainly used in lighting, power supply and
power adapters.
Time-current characteristics: Time-lag fuse (T)
Dividing power: 50A@125Vac,35Aor10In@250Vac,50A@250Vac
Standard: IEC 60127-3/IV
Accreditation: cURus,PSE,TUV,CQC,KC
Material: shell - glass tube, metal cap - nickel - plated brass,
lead cap - nickel - plated cap, tin - plated copper wire
Operating temperature: -55℃ ~ +125℃
Solderability: 260℃≤5 seconds (wave soldering);350℃≤3 seconds
(manual welding)
Welding temperature bearing capacity: 260℃, 10 seconds;280℃, 5
seconds;
Storage condition: +10℃ ~ +60℃;The annual average relative humidity
is less than 75%, and the relative humidity reaches 95% for a
maximum of not more than 30 days

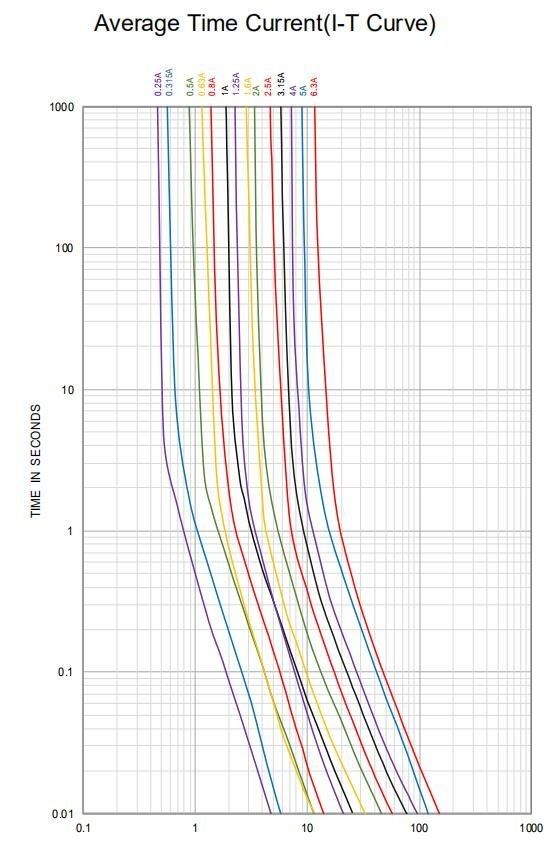

| Time vs Current Characteristics: IEC60127 -3/IV |
| Rated current | 150% | 210% | 275% | 400% | 1000% |
| 250mA~7A | >1h | <2min | 400ms~10s | 150ms~3s | 20ms~150ms |
| 8A~10A | >1h | <5min | 1s~20s | 150ms~3s | 20ms~ 150ms |
| Electrical Characteristics at 25C |
| Rated | Ratede Current | Ratede Voltage | Max Dissipation Drop(mV) | Max.Power Dissipation(mW) | Typical Cold Resistance (mΩ) | Nominal Melting I2t(A2sec) | Breaking Capacity | Approvals |
| cURus | PSE | TUV | CQC | KC |
| 125V | 250V | 250V | 250V | 250V | 250V |
| 0250 | 250mA | 250 V AC | 240 | 220 | 600 | 0.221 |
50A/125V AC
35A or 10In/250V AC | ● | ● | ○ | ● | ○ | ● |
| 0315 | 315mA | 250 V AC | 220 | 250 | 470 | 0.336 | ● | ● | ○ | ● | ○ | ○ |
| 0350 | 350mA | 250 V AC | 210 | 250 | 340 | 0.397 | ● | ● | ○ | ○ | ○ | ○ |
| 0500 | 500mA | 250 V AC | 190 | 310 | 250 | 1.00 | ● | ● | ○ | ● | ● | ● |
| 0630 | 630mA | 250 V AC | 180 | 360 | 150 | 1.35 | ● | ● | ○ | ● | ● | ● |
| 0800 | 800mA | 250 V AC | 160 | 430 | 117 | 1.56 | ● | ● | ○ | ● | ● | ● |
| 1100 | 1.00A | 250 V AC | 140 | 500 | 80.0 | 6.50 | ● | ● | ● | ● | ● | ○ |
| 1125 | 1.25A | 250 V AC | 130 | 600 | 56.0 | 4.62 | ● | ● | ● | ● | ● | ○ |
| 1150 | 1.50A | 250 V AC | 120 | 730 | 45.0 | 10.6 | ● | ● | ○ | ○ | ○ | ○ |
| 1160 | 1.60A | 250 V AC | 120 | 730 | 50.0 | 10.9 | ● | ● | ● | ● | ● | ○ |
| 1200 | 2.00A | 250 V AC | 100 | 870 | 38.0 | 20.3 | ● | ● | ● | ● | ● | ○ |
| 1250 | 2.50A | 250 V AC | 100 | 1000 | 28.0 | 32.5 | ● | ● | ● | ● | ● | ○ |
| 1315 | 3.15A | 250 V AC | 100 | 1200 | 18.5 | 57.0 | ● | ● | ● | ● | ● | ○ |
| 1400 | 4.00A | 250 V AC | 100 | 1400 | 14.5 | 94.1 | ● | ● | ● | ● | ● | ○ |
| 1500 | 5.00A | 250 V AC | 100 | 1400 | 12.69 | 121 | ● | ● | ● | ● | ● | ○ |
| 1630 | 6.30A | 250 V AC | 100 | 1400 | 8.50 | 225 | ● | ● | ○ | ● | ● | ○ |
| 1800 | 8.00A | 250 V AC | 100 | 1400 | 6.40 | 169 | ● | ● | ○ | ○ | ● | ○ |
| 2100 | 10.00A | 250 V AC | 100 | 1400 | 3.95 | 196 | ● | ● | ○ | ○ | ○ | ○ |
Note: (1) Permissible continuous operating current is ≤100% at
ambient temperature of 23°C (73.4°F)
(2) The cURus certification by 125V and 250V; the others
certification by 250V.
(3) The current values used for calculating I2T should be within
the standard range of 8ms ~ 10ms.
Series: 3x10mm tube glass fuse
Product keywords: No.312/3*10mm 3.6x10mm time-lag glass fuse
Series 312 are time-lag and low breaking capacity fuses, suitable
for 250V AC voltage, breaking capacity less than 50A protection
circuit.
Series 312 fuses are mainly used in lighting, power supply and
power adapters.
Time-current characteristics: time-lag fuse (T)
Dividing ability: 50A@250Vac / 50A@125VAC
Standard: UL 248-14
Accredited: cULus
Material: shell - glass tube, metal cap - nickel - plated brass,
lead cap - nickel - plated cap, tin - plated copper wire
Operating temperature: -55℃ ~ +125℃
Solderability: 260℃≤5 seconds (wave soldering);350℃≤3 seconds
(manual welding)
Welding temperature bearing capacity: 260℃, 10 seconds;280℃, 5
seconds;
Storage condition: +10℃ ~ +60℃;The annual average relative humidity
is less than 75%, and the relative humidity reaches 95% for a
maximum of not more than 30 days

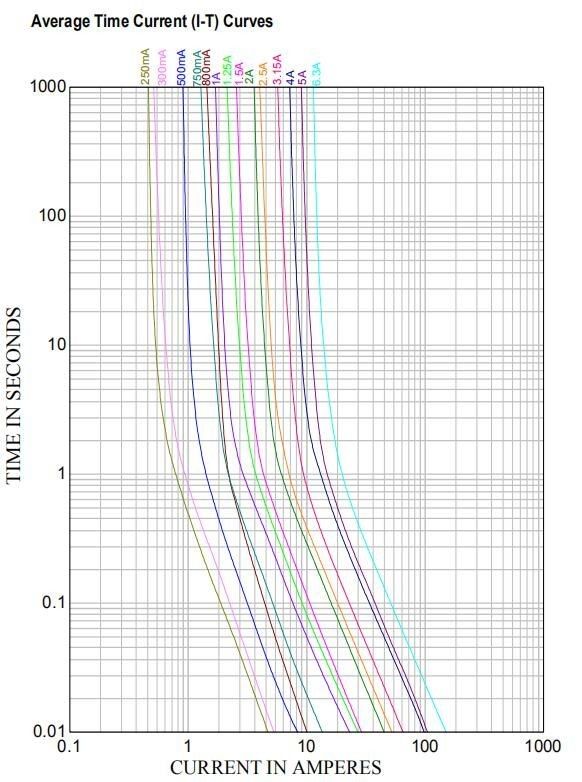

| Time vs Current Characteristics: UL248-14 |
| Rated Current | 100% | 200% |
| 250mA~10A | >4h | 5s~60s |
| Electrical Characteristics at 25℃ |
Amp Code | Ratede Current | Rated Voltage | Typical cold Resistance(mΩ) | Nominal Melting I²t(A²sec) | Breaking Capacity | Approvals |
| |
250V AC
| | |
50A @ 250V AC 50A @ 125V AC
| cULus |
| 0250 | 250mA | 674 | 0.221 | 125V | 250V |
| 0300 | 300mA | 485 | 0.281 | ● | ● |
| 0315 | 315mA | 415 | 0.302 | ● | ● |
| 0350 | 350mA | 340 | 0.384 | ● | ● |
| 0400 | 400mA | 310 | 0.490 | ● | ● |
| 0500 | 500mA | 285 | 0.706 | ● | ● |
| 0750 | 750mA | 114.5 | 1.85 | ● | ● |
| 0800 | 800mA | 140 | 1.00 | ● | ● |
| 1100 | 1.00A | 115 | 5.28 | ● | ● |
| 1125 | 1.25A | 57.8 | 7.29 | ● | ● |
| 1150 | 1.50A | 52.0 | 8.41 | ● | ● |
| 1160 | 1.60A | 45.0 | 8.75 | ● | ● |
| 1200 | 2.00A | 33.0 | 20.3 | ● | ● |
| 1250 | 2.50A | 27.95 | 27.6 | ● | ● |
| 1300 | 3.00A | 25.0 | 64.0 | ● | ● |
| 1315 | 3.15A | 21.0 | 42.3 | ● | ● |
| 1350 | 3.50A | 19.0 | 68.5 | ● | ● |
| 1400 | 4.00A | 14.7 | 96.1 | ● | ● |
| 1500 | 5.00A | 11.9 | 110 | ● | ● |
| 1630 | 6.30A | 8.50 | 228 | ● | ● |
| 1700 | 7.00A | 4.50 | 64.0 | ● | ● |
| 1800 | 8.00A | 6.20 | 77.4 | ● | ● |
| 2100 | 10.00A | 5.10 | 121 | ● | ● |
Note: 1.Permissible continuous operating current is 100% at ambient
temperature of 23°C (73.4°F)
2.The current values used for calculating I2T should be within the
standard range of 8ms ~ 10ms.

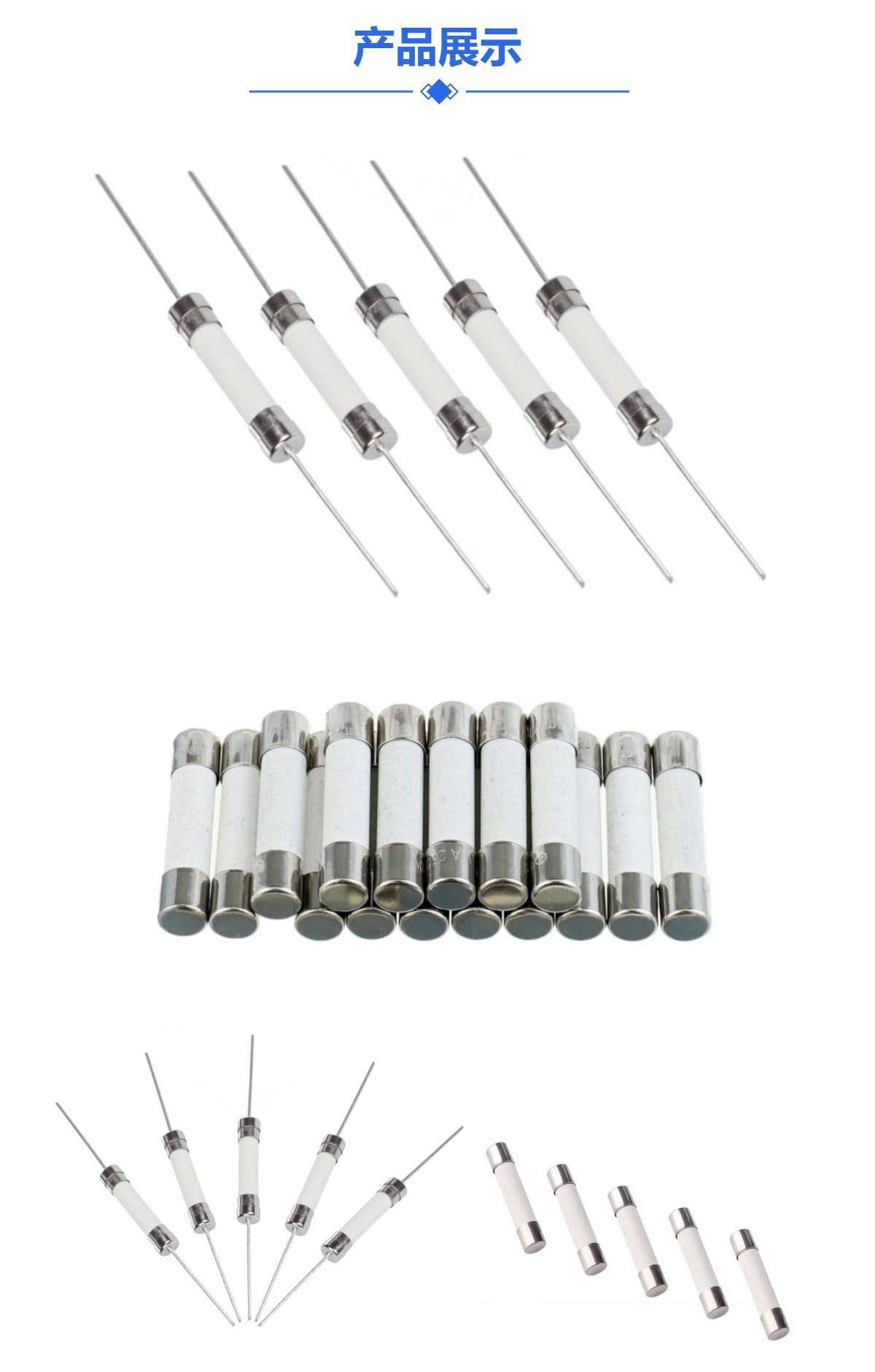

Miniature Cartridge Fuse
The Miniature Cartridge Fuse is a type of cartridge style fuse,
designed to provide reliable overcurrent protection for electronic
equipment and electrical systems. It is commonly used in a variety
of applications, such as home appliances, industrial machinery, and
automotive electronics.
Product Overview
The Miniature Cartridge Fuse is a small, cylindrical device with
two axial leads attached to either end. It is manufactured using
high-quality materials and advanced technology, making it durable
and capable of withstanding high temperatures and harsh
environments.
Product Attributes
| Storage Conditions | +10℃ to +60℃ |
|---|
| Operating Temperature | -55℃ to +125℃ |
|---|
| Standard | IEC 60127-2/Ⅱ; GB/T9364.7 |
|---|
| Rated Voltage | 250V AC |
|---|
| Axial Leads | Tin-plated Copper Wires |
|---|
The Miniature Cartridge Fuse is designed to meet international
standards and specifications, ensuring its compatibility with a
wide range of electronic and electrical systems. It is rated for a
maximum voltage of 250V AC, making it suitable for use in most
household and industrial applications.
Additionally, the axial leads of the fuse are made of tin-plated
copper wires, providing excellent conductivity and corrosion
resistance. This allows for efficient and reliable current flow,
ensuring the proper functioning of the protected equipment or
system.
Key Features
The Miniature Cartridge Fuse offers the following key features:
- Micro size for space-saving installation
- High temperature and shock resistance
- Fast acting and reliable overcurrent protection
- Compatible with a wide range of electronic and electrical systems
- Easy to install and replace
With its compact size and reliable performance, the Miniature
Cartridge Fuse is an ideal choice for protecting sensitive
electronic equipment and ensuring the safety and stability of
electrical systems.
Features:
- Product Name: Miniature Cartridge Fuse
- Storage Conditions: +10℃ To +60℃
- Axial Leads: Tin-plated Copper Wires
- Rated Voltage: 250V AC
- Main Characteristics: Miniature Cartridge Fuse; Fast-Acting(F)
- End Caps: Nickel-plated Brass
- Product Type: Cartridge Style Fuse
- Size: Tiny
- Material: Ceramic Tube
- Mounting Style: Axial Leads
- Operating Temperature: -55℃ To +125℃
- Breaking Capacity: 35A
- RoHS Compliant: Yes
- Certifications: UL, CSA, VDE
Technical Parameters:
| Product Name | Miniature Cartridge Fuse |
|---|
| Operating Temperature | -55℃ To +125℃ |
|---|
| Axial Leads | Tin-plated Copper Wires |
|---|
| Rated Current | 250mA-16A; 12.5A-16A; 1A-15A |
|---|
| Rated Voltage | 250V AC |
|---|
| Storage Conditions | +10℃ To +60℃ |
|---|
| Standard | IEC 60127-2/Ⅱ; GB/T9364.7 |
|---|
| Main Characteristics | Miniature Cartridge Fuse; Fast-Acting(F) |
|---|
| Fast acting | Glass Tube |
|---|
| End Caps | Nickel-plated Brass |
|---|
