    Micro Fuse Tube 382 Cylindrical Plug In Fuse T1A T2A T3.15A T5A T6.3A T10 250V 125V Plastic Case

    Ask Lasest Price
    Brand Name : LinKun
    Model Number : 382 Series
    Certification : UL ROHS CCC CUL VDE
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 100,000 pieces/month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    Micro Fuse Tube 382 Cylindrical Plug In Fuse T1A T2A T3.15A T5A T6.3A T10 250V 125V Plastic Case

    Product Description:

    Power Board Commonly Used Round Type Radial Leads Miniature Fast Blow Subminiature Micro Fuse


    From: 100mA~6.3A 125V/250V


    Test standard UL 248.14 CSA C22.2 No.248.14


    Electrical Characteristics (Quick Acting)


    Rated1.0 ln2.0 ln
    Current
    100mA~6.3A
    Min.Max.
    4 h60 sec.

    Rated Current(A)Rated Voltage(V)Breaking Capacity
    100mA
    125mA
    160mA
    200mA
    250mA
    300mA
    315mA
    350mA
    400mA
    500mA
    600mA125/250@125 VI250V
    630mA50A
    800mA50~60HzcoSφ=1.0
    1A
    1.25A
    1.5A
    1.6A
    2A
    2.5A
    3A
    3.15A
    3.5A
    4A
    5A
    6A
    6.3A

    Mechanical test


    Lead pull strength: 10N(EN60068-2-21)


    Solderability: 260℃ ≤ 3 sec. (Wave)

    350°C≤ 1 sec.(Hand)


    Resistance to Solder heat: 260°C , 10s (EN60068-2-20)

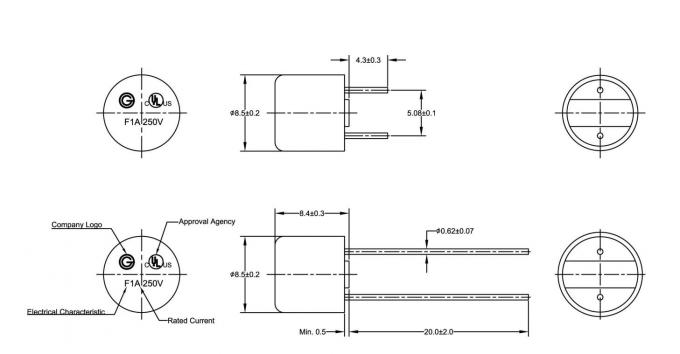

    No.Part NameMaterial
    1CapBlack or Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0
    2BaseBlack or Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0
    3Fuse elementAlloy
    4Lead wireCopper, Tin-plated

    Fast Blow
    RatingBlowing Time
    210%30min Max
    275%10 ms~3 s
    1000%20 ms max

    Application


    This product is suitable for various kinds of electronic devices’ circuit over current protection. Widely used in industrial of Battery Charges, Consumer Electronics, Power supplies, Industrial Controllers, etc.

    Round Radial Leads Miniature Cartridge Fuse Fast Blow Subminiature Fuse 0
