Product Description:
Axial Lead 3x8mm Resistor Type Fast Quick Blow Fast-acting Micro
Cartridge Pico Fuse
Series:2mm Fuses
keyword:No.211/2*7mm fast-acting pico fuse
Time-current features:Fast-Acting(F)
Breaking Capacity: 535A@150/250VAC,50A@150/250VAC
Standard:UL248-14
Approvals: cURus, TUV
Materials:shell-ceramic tube, metal cap-nickel-plated brass, lead
cap-nickel-plated cap, tin-plated copper wire
Operating Temperature:-55℃ to +150℃
Soldering Parameters:260℃.≤10 sec (Wave Soldering),350℃.≤2 sec
(Hand Soldering)
Soldering Peak:260℃. 10 sec.,280℃. 5 sec.
Storage Conditions:+10℃ to +60℃
Relative humidity:≤75% yearly average Without dew, maximum 30 days
at 95%

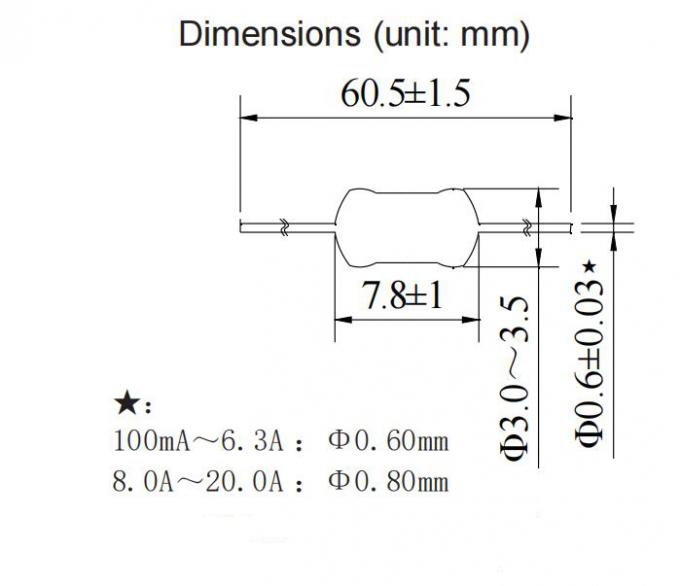

Application of Fast Acting Micro Pico Fuse
Mainly used in emergency lights, battery protection, LED drive
power, adapters, LCD displays, low-power medical equipment
| Time vs Current Characteristics: UL248-14 |
| Rated Current | 100% 200% |
| 200mA~16A | >4h <60s |
| Electrical Characteristics at 25℃ |
| Amp code | Rated Current | Rated Voltage | Typical Cold Resistance (mΩ) | Naminal Melting I²t(A²sec) | Breaking Capacity | Approvals |
| cULus | cURus | TUV | PSE |
| 0200 | 200mA | 125V AC
250V AC | 990 | 0.077 | 50A@250V AC
50A@125V AC | ● | ○ | ○ | ○ |
| 0250 | 250mA | 680 | 0.082 | ● | ○ | ● | ○ |
| 0315 | 315mA | 369 | 0.190 | ● | ○ | ● | ○ |
| 0375 | 375mA | 340 | 0.200 | ● | ○ | ○ | ○ |
| 0400 | 400mA | 270 | 0.210 | ● | ○ | ● | ○ |
| 0500 | 500mA | 201 | 0.480 | ● | ○ | ● | ○ |
| 0630 | 630mA | 160 | 0.930 | ● | ○ | ● | ○ |
| 0750 | 750mA | 87.0 | 0.093 | ● | ○ | ○ | ○ |
| 0800 | 800mA | 62.0 | 0.564 | ● | ○ | ● | ○ |
| 1100 | 1.00A | 60.0 | 0.531 | ● | ○ | ● | ○ |
| 1125 | 1.25A | 44.3 | 1.03 | ● | ○ | ● | ○ |
| 1150 | 1.50A | 33.1 | 1.60 | ● | ○ | ○ | ○ |
| 1160 | 1.60A | 37.84 | 0.85 | ● | ○ | ● | ○ |
| 1200 | 2.00A | 30.3 | 2.40 | ● | ○ | ● | ○ |
| 1250 | 2.50A | 20.5 | 5.83 | ● | ○ | ● | ○ |
| 1300 | 3.00A | 19.0 | 5.90 | 35A@250V AC
35A@125V AC | ○ | ○ | ○ | ● |
| 1315 | 3.15A | 17.0 | 5.90 | ○ | ● | ● | ○ |
| 1400 | 4.00A | 13.5 | 4.70 | ○ | ● | ● | ○ |
| 1500 | 5.00A | 10.0 | 8.30 | ○ | ● | ○ | ● |
| 1630 | 6.30A | 9.00 | 12.3 | ○ | ● | ○ | ○ |
| 1700 | 7.00A | 5.88 | 16.6 | ○ | ● | ○ | ○ |
| 1800 | 8.00A | 5.88 | 21.0 | ○ | ● | ○ | ○ |
| 2100 | 10.00A | 5.05 | 41.0 | ○ | ● | ○ | ○ |
| 2120 | 12.00A | 32V AC
16V AC | 3.50 | 78.32 | 50A@32V AC
100A@16V AC | ○ | ● | ○ | ○ |
| 2150 | 15.00A | 3.01 | 249.6 | ○ | ● | ○ | ○ |
| 2160 | 16.00A | 2.85 | 169.49 | ○ | ● | ○ | ○ |

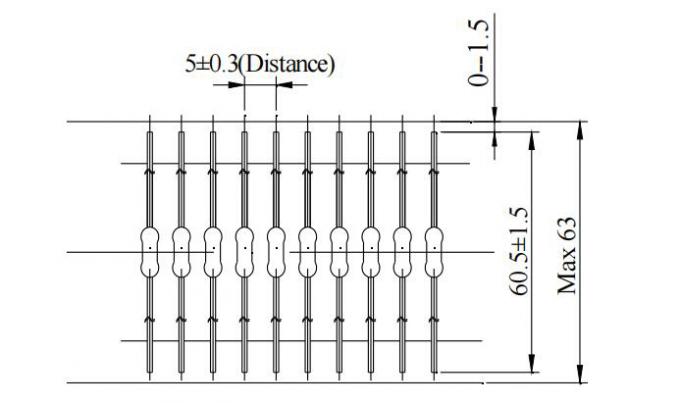

Note: (1) Permissible continuous operating current is 100% at
ambient temperature of 23°C (73.4°F)
(2) The cURus and cULus certification for 100mA~10A only by 125V
and 250V AC, for 12A~16A only by 16V and 32V AC; the TUV
certification only by 250V AC.
(3) The current values used for calculating I2T should be within
the standard range of 8ms ~ 10ms.
