Product Description:

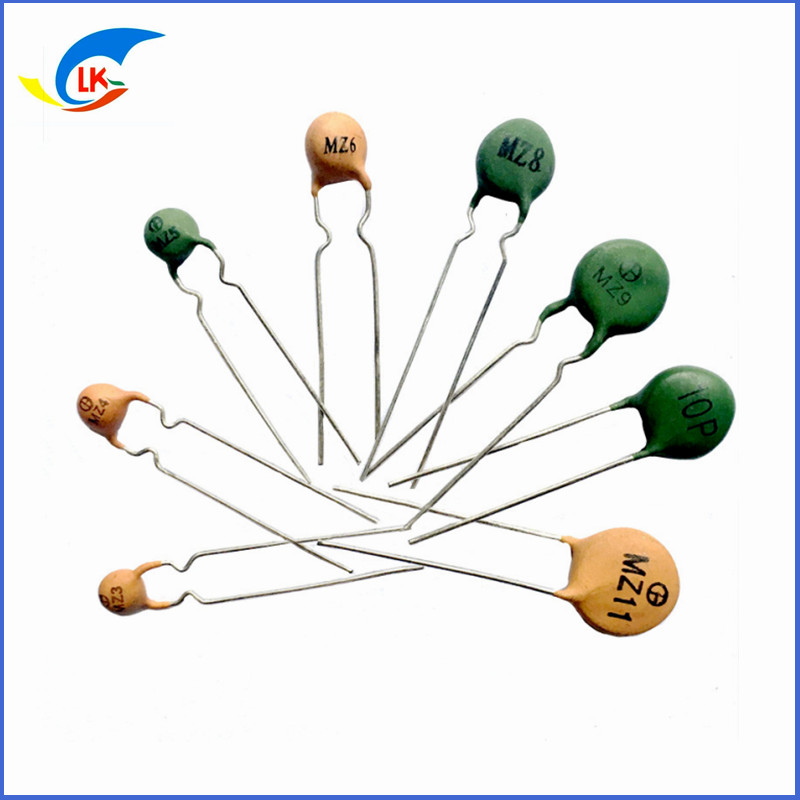

19P Current Limited 19MM 47OHM 50OHM Welding Machine Positive Temperature Coefficient PTC Thermistor
Brief Introduction
Function:PTC Thermistor Special for over current,overload
protection of welding machines.
MZ31 series 15P,16P,19P PTC thermistor are million- time safety
thermistor of automatic circuit protection,recoverability, using
repeatedly, and no trigger, noise or protective component that
could protect and restore from abnormal temperature and current
automatically,which called "auto restore fuse" and
"ten-thousand-time fuse".Recoverability, using repeatedly, and no
trigger, noise or sparks.
The above three models are all used for overcurrent overload
protection of welding machines, just different welding machine size
use different PTC thermistor Model.
Working Principle
When the circuit is in normal state, the current passing through
the PTC thermistor is less than the rated current, and the PTC
thermistor is normal and the resistance is small.Does not affect
the normal operation of the protected circuit. When the circuit
fails and the current greatly exceeds the rated current, the PTC
thermistor suddenly heats up and is in a high resistance state. The
circuit is disconnected to protect the circuit from damage. When
the failure is eliminated, the PTC thermistor automatically returns
to a low resistance state and the circuit returns to normal
operation.
Dimension
| Part No | DMAX | W±1.0 | TMAX | Φd±0.05 |
| MZ21-P101RNM | 19.0 | 7.5 | 8.0 | 0.8 |
Characteristics Curve
Electrical Performance
| part no | rated resistance (25℃±1℃) | switch temperature (±7℃) | break down voltage Ac | non-operating current (at 40℃) | typical trip current | Operating ambient temperature range |
| MZ21-P101RNM | 100Ω±25% | 120℃ | 600 V | 180 mA | 400mA | -10~+105℃ |
Advantage
1.Automatic circuit protection,can resume steadily,
2.contactless,noiseless and flameless,
3.reacts fast,
4. with a better performance of overvoltage protection,
5.wide operating voltage range,
6.small steady resistance,
7.low rated current,
8.small resistance,small size,
9.stable for a long time,
10.no need to be reset supply after overload protection,
11.wide operating temperature range, 0 ~ +60°C (V=Vmax), -25 ~
+125°C (V=0),
12.RoHS compliant.
Special PTC Thermistor for Welding machine overload protection
Appearance and Dimension(In: mm)
15P Thermistor:
finished product diameter 15.5-16 .0 mm, mold size is 16mm.
Foot distance is 7.5 ± 0.5 mm.
Foot length: the length of the cut foot is 5mm.
16P Thermistor: finished product diameter 17-17 .5 mm, mold size is
20 mm.
Foot distance is 5 ± 0.5 mm.
Foot length: the length of the cut foot is 8mm.
19P Thermistor:
finished product diameter 17.5-18 .0 mm, mold size is 20mm.
Foot distance is 7.5 ± 0.5 mm.
Foot length: the length of the cut foot is 6mm.
16P is thinner than 15P and 19P is thicker than 15P and 16P.
Application
Inverter welding machine
