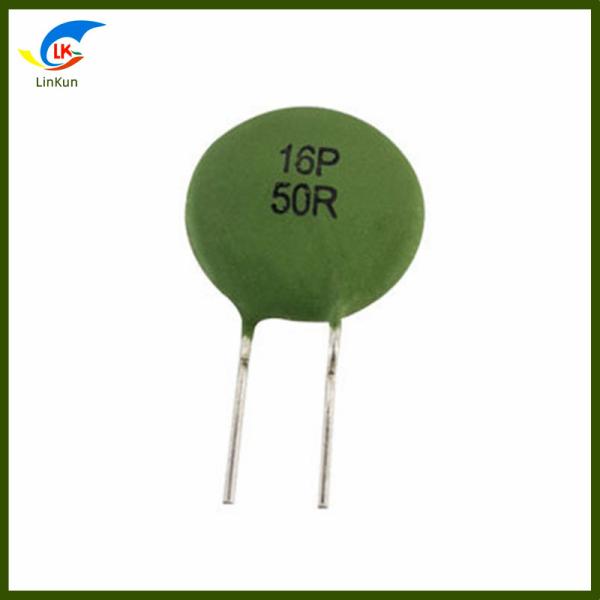

    MZ21 16P 50 Ohm Positive Temperature Coefficient Thermistor 18MM PTC Thermistor Resistance

    Ask Lasest Price
    Brand Name : lin kun
    Model Number : 16P(MZ21- P501 RMN)
    Certification : UL ROHS
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100,000 pieces/month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    MZ21 16P 50 Ohm Positive Temperature Coefficient Thermistor 18MM PTC Thermistor Resistance

    Product Description:

    MZ21 Type Thermistor used for overcurrent protection in telecommunication and AC circuit.
    Function:PTC Thermistor Special for over current,overload protection of welding machines.
    Technical parameters of Welding machine overload protection PTC Thermistor:
    16P nominal R25 resistance: conventional 6 Ω, also 3.7 Ω, 5 Ω, 7 Ω, 10 Ω, 12 Ω, 15 Ω
    Allow R25 resistance deviation: 100 Ω ± 30%, others: ± 25 %
    Rated power: 0.5 W

    Summary


    16P PTC Thermistor used for overcurrent protection in telecommunication and AC circuit.


    Structure and Dimensions

    16P 5 OHM 120C 900mA NTC PTC Thermistors Inverter Welding Machine 1
    16P 5 OHM 120C 900mA NTC PTC Thermistors Inverter Welding Machine 2

    Shape and Dimension (unit :mm)


    Part noDMAXW±1.0TMAXΦd±0.05
    MZ21- P501RMN18.05.05.00.8


    Performance Specification



    Part no
    rated resistance (25℃±1℃)switch temperature (±7℃)break down
    voltage Ac

    non-operating current
    (at 40℃)
    typical trip currentOperating ambient
    temperature range
    MZ21-P501RMN50Ω±20%120℃300 V450 mA900 mA-10~+45℃


    How to Order 16P PTC Thermistor
    16P 5 OHM 120C 900mA NTC PTC Thermistors Inverter Welding Machine 3
    ① — PTC Thermistor

    Product style
    2Current limited
    3Delay time

    Product typeSequence No.
    11.Coating type
    2.Plastic type
    3.Empty body
    3No mark

    ④ — — switch temperature,P:120℃
    ⑤ — Ω(resistance value) 5=5×10 0 ,
    ⑥ — ( OHM )
    ⑦ — — (Tolerance) K:±10%, M:±20%, N:±25%
    ⑧ — — (Diameter of Chip) N:Ф16mm


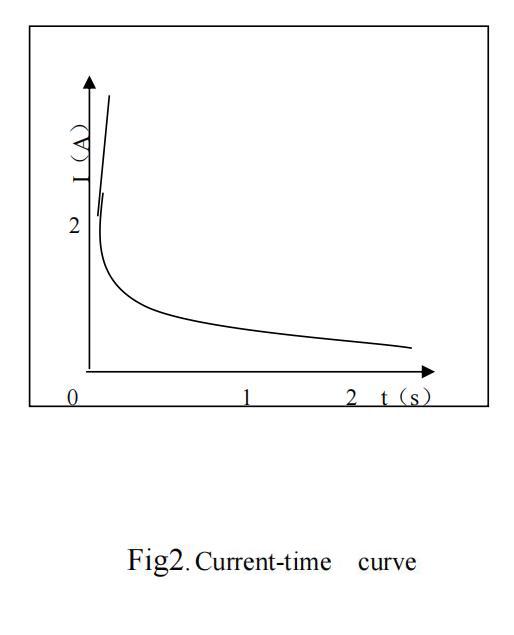

    The 16P PTC Thermistor Characteristics Curve

    16P 5 OHM 120C 900mA NTC PTC Thermistors Inverter Welding Machine 4
    16P 5 OHM 120C 900mA NTC PTC Thermistors Inverter Welding Machine 5
    16P 5 OHM 120C 900mA NTC PTC Thermistors Inverter Welding Machine 6


    Working Principle


    When the circuit is in normal state, the current passing through the PTC thermistor is less than the rated current, and the PTC thermistor is normal and the resistance is small.Does not affect the normal operation of the protected circuit. When the circuit fails and the current greatly exceeds the rated current, the PTC thermistor suddenly heats up and is in a high resistance state. The circuit is disconnected to protect the circuit from damage. When the failure is eliminated, the PTC thermistor automatically returns to a low resistance state and the circuit returns to normal
    operation.

    Advantage


    1.Automatic circuit protection,can resume steadily,
    2.contactless,noiseless and flameless,
    3.reacts fast,
    4. with a better performance of overvoltage protection,
    5.wide operating voltage range,
    6.small steady resistance,
    7.low rated current,
    8.small resistance,small size,
    9.stable for a long time,
    10.no need to be reset supply after overload protection,
    11.wide operating temperature range, 0 ~ +60°C (V=Vmax), -25 ~ +125°C (V=0),
    12.RoHS compliant.
