10Lux Bright Resistance Photoresistor GM5506 2-5KΩ High Sensitivity
Spectral Characteristics Easy To Use Resistor
A photoresistor is a resistor made of semiconductor material whose
conductivity changes linearly with changes in illumination.
Photoresistors are widely used in toys, lamps, cameras and other
industries.

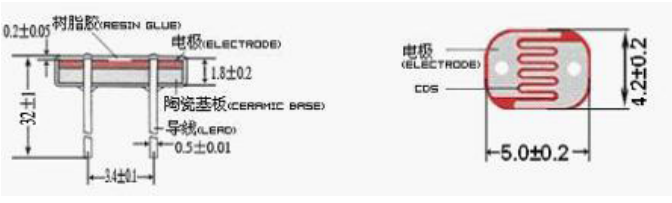

Schematic
Unit:mm
Performance and features
Epoxy resin encapsulation, good reliability
Small size and high sensitivity
Fast response speed and good spectral characteristics
Application scope
Camera automatic metering Photoelectric control
Indoor light control Alarm
Industrial control Light control switch
Light control lamp Electronic toys
Models and Specifications
| Specification | Model | Max Voltage VDC | Max Power consumptionmw | Environment temperature℃ | Spectrum peaknm | Bright resistor(10Lux) KΩ | Dark resistance≥ MΩ | γ100 10 | Response time(ms) | Illuminance characteristic diagram number |
| Rise | Decline |
| φ5series | GM5506 | 150 | 90 | -30~+70 | 540 | 2-5 | 0.1 | 0.5 | 30 | 30 | 1 |
| GM5516 | 150 | 90 | -30~+70 | 540 | 5-10 | 0.2 | 0.5 | 30 | 30 | 1 |
| GM5528 | 150 | 100 | -30~+70 | 540 | 10-20 | 1 | 0.6 | 20 | 30 | 2 |
| GM5537-1 | 150 | 100 | -30~+70 | 540 | 20-30 | 2 | 0.6 | 20 | 30 | 3 |
| GM5537-2 | 150 | 100 | -30~+70 | 540 | 30-50 | 3 | 0.7 | 20 | 30 | 3 |
| GM5539 | 150 | 100 | -30~+70 | 540 | 50-100 | 5 | 0.8 | 20 | 30 | 4 |
| GM5549 | 150 | 100 | -30~+70 | 540 | 100-200 | 10 | 0.9 | 20 | 30 | 5 |
Measurement conditions
Maximum applied voltage: the maximum voltage that can be
continuously applied to the component in the dark;
Dark resistance: The resistance value at the 10th second after
turning off the 10Lux light;
Maximum power consumption: Maximum power consumption when the
ambient temperature is 25°C;
Brightness resistance: Test value under 10Lux light of standard
light source (color temperature 2854K) after irradiation with
400-600Lux light for 2 hours;
γ value: The logarithm of the ratio of the standard resistance
value under 10Lux illumination and 100Lux illumination.
Lg (R10/R100)
γ= =Lg(R10/R100)
Lg (100/10)
R10､R100 are the resistance values under 10Lux and 100Lux
illumination respectively (the tolerance of γ is ±0.1)

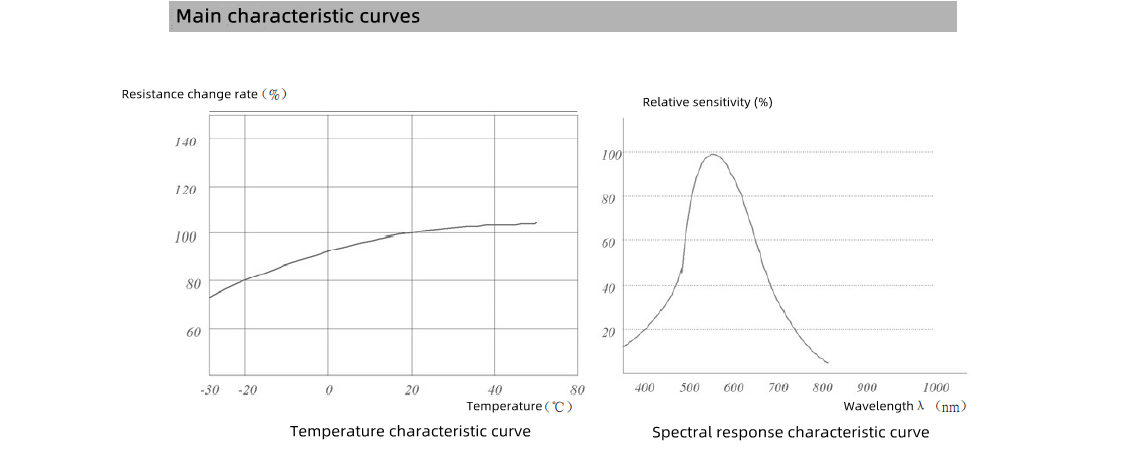

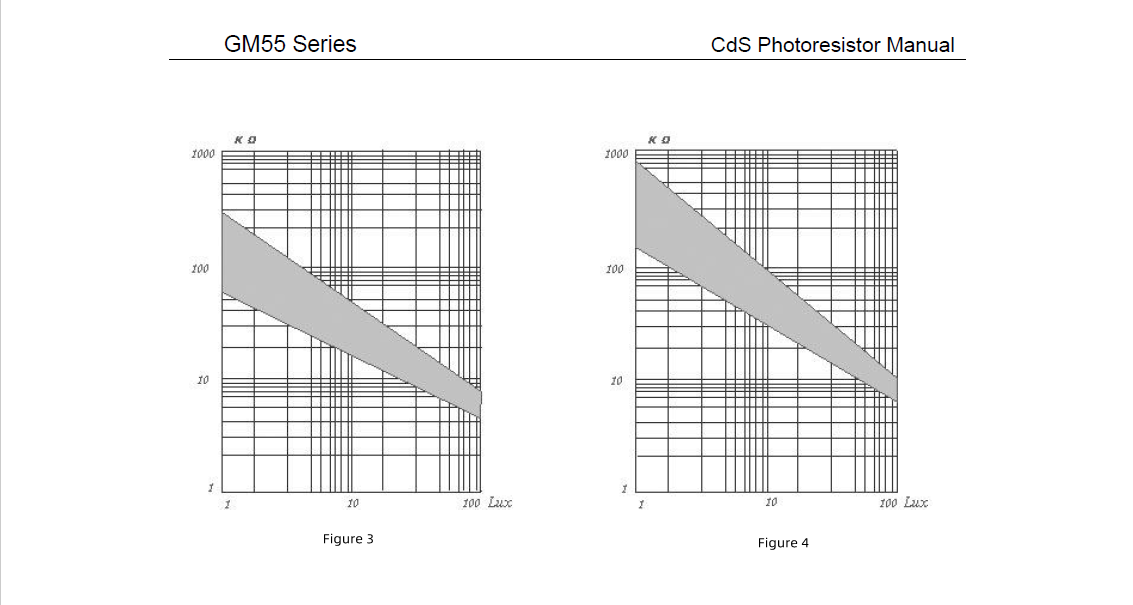

Main characteristic curves
Precautions
1. This product is packed with environmentally friendly materials,
with 200 pieces in small packaging and 2,000 pieces in large
packaging;
2. Avoid storing this product in humid and high-temperature
environments;
3. It should be stored in non-corrosive gas, otherwise the tin
plating layer will be oxidized and the solderability will be
reduced.
Therefore, it should be used as soon as possible after opening the
package.
4. Working environment humidity ≦95%
5. The welding time should be as short as possible; immerse it in
230℃ tin liquid (Sn63 Pb37) to a distance of 5mm from the CdS
photoresistor body and maintain it for 3-5 seconds.
6. Note that the lead welding position should be more than 4mm away
from the ceramic base.
Product Description:
The GM55 series photoresistor, also known as the Light Dependent
Resistor (LDR), is a 3mm series photoresistor that is designed to
detect the presence of light. It is characterized by its dark
resistance of 0.2MΩ, maximum voltage of 150 VDC, and low power
consumption of 90 mW. This product is ideal for applications that
require the detection of light levels, such as light sensors, light
dimmers, light switches, and street lights. It is highly reliable
and provides excellent accuracy and sensitivity in a wide range of
light conditions. The GM55 series photoresistor is a
cost-effective, low-maintenance solution that is sure to meet the
needs of any application.
Features:
- Product Name: Light Dependent Resistor
- Lead Length: 5mm
- Environment temperature ℃: -30~+70°C
- Response time (ms): Rise 30ms Decline 30ms
- Dark resistance: 0.2MΩ
- Series: GM55 series photoresistor
Technical Parameters:
| Product Name | Light Dependent Resistor |
|---|
| Model | GM5506 |
| Spectrum Peak (nm) | 540 |
| Bright Resistor (10Lux) | 2-5KΩ |
| Response Time (ms) | Rise 30ms, Decline 30ms |
| Lead Length | 5mm |
| Power Consumption (mW) | 90 |
| Dark Resistance | 0.2MΩ |
| Max Voltage (V DC) | 150V |
| Environment Temperature (°C) | -30~+70°C |
Applications:
LINKUN's Photoresistor 5506 is a light dependent resistor designed
for a wide range of applications, from 7mm series photoresistor to
3mm series photoresistor and 5mm series photoresistor. It is
precisely engineered to provide accurate and reliable results in
any environment. With a lead length of 5mm, power consumption of
90mw, bright resistor (10Lux) of (2-5)KΩ, maximum voltage of 150
VDC and environment temperature of -30~+70°C, LINKUN's
Photoresistor 5506 is the ideal choice for any application that
requires a light dependent resistor.
Customization:
LINKUN GM55 Series Photoresistor, Light-Sensitive Resistor, Model
Number: Photoresistor 5506, is a great choice for your application.
It has a power consumption of 90mw and a response time of 30ms for
both rise and decline. The max voltage it can handle is 150 V and
its lead length is 5mm. The bright resistor (at 10Lux) is between
2-5KΩ. It originates from Dongguan, Guangdong, China.
Support and Services:
Light Dependent Resistor Technical Support and Service
Light Dependent Resistor (LDR) provides a wide range of technical
support and services to ensure that customers get the most out of
their LDR products. Our professional team of experts is available
24/7 for any inquiries, troubleshooting, and repairs.
For technical issues, customers can contact our support team via
phone, email or live chat. Our support team will respond promptly
and provide detailed instructions on how to use the product and
troubleshoot any technical issues.
We also provide maintenance and repair services to ensure that the
LDR product is operating correctly. Our trained technicians can
diagnose and repair any technical issues with the product.
Additionally, we offer a wide range of training and educational
materials to help customers better understand the product and its
features. These materials include instructional videos, user
manuals, and online tutorials.
If you have any questions or need any assistance, please do not
hesitate to contact our support team.
Packing and Shipping:
Packaging and Shipping for Light Dependent Resistor
Packaging
Light Dependent Resistor shall be packed in a custom designed box
for protection against dust, moisture, and physical shock during
transportation.
Shipping
Light Dependent Resistor shall be shipped in accordance with
international standards and regulations. It shall be shipped via a
reliable and secure freight carrier.
FAQ:
