Performance and features

Coated with epoxy

Good reliability

Small volume

High sensitivity

Quick response

Good spectrum characteristic

Application scope

Camera automation photometry

Indoor sunlight control

Photoelectric control

Optical control switch

Optical control lamp

Electronic toy

Annunciator

Optical control musicI.C

Electronic proverbial vlitional

Industrial control

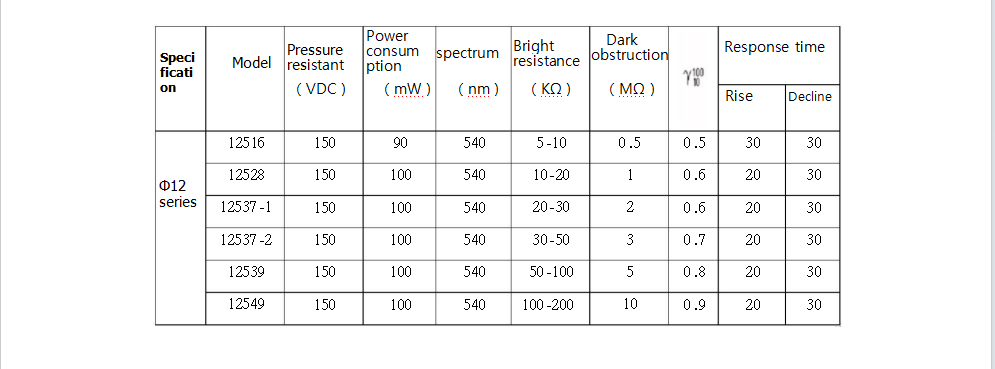

Specifications

Packaging and precautions

The product is packaged in neutral packaging, with 200 pieces in small packaging and 1,000 pieces in large packaging:

Do not place the photoresistor in a humid or high-temperature environment:

Note that the lead welding position should be more than 4mm away from the ceramic base:

Test Conditions

1. Bright resistance: resistance value measured with 10Lux illumination under standard light source A (color temperature 2854K).

2 Dark resistance: refers to the resistance value at the 10th second after the light is turned off (OLux).

R10 and R100 are the brightness resistance values under 10Lux and 100Lux illumination respectively, and the tolerance of γ value is ±0.1

3,The γ value refers to the standard value under 10Lux and 100Lux illumination..

4,Maximum power loss: Maximum power loss when the ambient temperature is 25°C.

5,Maximum applied voltage: refers to the maximum voltage that can be continuously applied to the component in the dark.

——————————————————————————————————————————————

Page 2 of 4

Spectral response characteristics

Product Description:

Light Dependent Resistor (LDR) is a 7mm series photoresistor with a 3mm series photoresistor. It is used to detect light intensity and respond to changes in environmental light. It can be used in various light sensing applications, such as automatic lighting control, etc.

The key features of Light Dependent Resistor include:

• Environment temperature range: -30~+70°C
• Dark resistance: 0.2MΩ
• Spectrum peak: 540nm
• Max voltage: 150 V
• Bright resistor (10Lux): (2-5)KΩ

Light Dependent Resistor is suitable for applications requiring sensing of light intensity, such as outdoor lighting, solar energy, etc. It is capable of providing long-term reliable performance in various temperatures and lighting conditions.

Features:

• Product Name: Light Dependent Resistor
• Response time(ms): Rise30ms Decline30ms
• Model: GM5506
• Max VoltageVDC: 150 V
• Spectrum peaknm: 540
• 5mm series photoresistor
• 3mm series photoresistor

Technical Parameters:

Applications:

The Light Dependent Resistor from LINKUN with model number Photoresistor 5506 is a great choice for applications that require reliable and dependable performance. It is designed with a 7mm series photoresistor, 3mm series photoresistor, and a GM5506, and is built to withstand temperature ranging from -30 to 70°C. It has a dark resistance of 0.2MΩ and a response time of 30ms for rising and falling. LINKUN's Light Dependent Resistor is perfect for demanding projects that require high-precision and accuracy.

Customization:

Support and Services:

At XYZ, our goal is to provide the best technical support and service for our Light Dependent Resistor (LDR) products. We understand that our customers rely on us to provide reliable and timely information and support.

Our knowledgeable and experienced team of engineers is available to answer any questions you may have about your LDR product. We provide prompt and accurate technical support to ensure that you get the most out of your product. We also strive to stay ahead of the latest developments in the industry and can advise you on the best LDR products available.

In addition to providing technical support, we also offer repair services. Our team of experienced technicians can diagnose and repair any issues you may be having with your LDR product. We also provide warranties on all our products to guarantee your satisfaction.

If you have any questions or need assistance with your LDR product, please do not hesitate to contact us. We are here to help you get the most out of your product. Thank you for choosing XYZ for your Light Dependent Resistor needs.

Packing and Shipping:

Light dependent resistors are packaged in cardboard boxes and shipped in a variety of ways. For domestic orders, they are typically shipped through FedEx, UPS, or the US Postal Service. For international orders, they are most often shipped by air or sea freight.

The boxes are padded with foam to protect the resistors from shock and vibration. They are also labeled with a tracking number and an expiration date. All products are inspected for quality control before being shipped.

FAQ:

1. Q: What brand is the Light Dependent Resistor?
   A: The Light Dependent Resistor is from LINKUN, with the model number of Photoresistor 5506.
2. Q: Where is the Light Dependent Resistor manufactured?
   A: The Light Dependent Resistor is manufactured in Dongguan, Guangdong, China.
3. Q: What is the working voltage range of the Light Dependent Resistor?
   A: The working voltage range of the Light Dependent Resistor is 0.1V-0.5V.
4. Q: What is the spectral response range of the Light Dependent Resistor?
   A: The spectral response range of the Light Dependent Resistor is 400nm-1100nm.
5. Q: What is the maximum power dissipation of the Light Dependent Resistor?
   A: The maximum power dissipation of the Light Dependent Resistor is 100mW.
