1808 SMD Fuse 6125 SMD Fuse 0.5A-30A SMD Fuse 2410 125V 250V 300V
Product Description:
Interrupting Rating Brick Square Type Surface Mount Chip
Fast-Acting Quick Fast Blow SMD Fuses 6125 1812 2410
Description
6125 Series fast acting square surface mount fuses are made from
ceramic and copper,ROHS comliant,halogen free and lead-free,with
U.S.(UL)safety agency approvals.Providing board level primary and
secondary circuit protection in a wide variety
of applications,Caps can be silver or gold plated.
6125 Series,Surface Mount Fuse ,Fast blow,125V/250V/300V
Body:ceramic
Caps:Copper silver/gold plated
Fuse element:Alloy wire
Package:1000pcs/reel
| Electrical Characteristics(UL)File No.E468765 |
| Rated Ampere | % ofRatedAmpere | Blowing Time |
| 0.05A-15A | 100% | ＞4hours |
| 0.05A-15A | 200% | ＜120secs |
| Model | Ampere
Rating(A) | Voltage
Rating(V) | Interrupting
Rating |
| SCF0050 | 0.050 | 250V SCF(0.05-7A)
300V SMF(0.05-7A)
125V SGF(0.05-15A) | |
| SCF0062 | 0.062 | |
| SCF0080 | 0.080 | |
| SCF0100 | 0.100 | |
| SCF0125 | 0.125 | |
| SCF0200 | 0.200 | |
| SCF0250 | 0.250 | 50A@250V/300V |
| SCF0300 | 0.300 | 200A@125V |
| SCF0375 | 0.375 | |
| SCF0400 | 0.400 | |
| SCF0500 | 0.500 | |
| SCF0600 | 0.600 | |
| SCF0630 | 0.630 | |
| SCF0700 | 0.700 | |
| SCF0750 | 0.750 | |
| SCF0800 | 0.800 | |
| SCF1100 | 1 | |
| SCF1125 | 1.25 | 250V SCF(0.05-7A)
300V SMF(0.05-7A)
125V SGF(0.05-15A) | |
| SCF1150 | 1.5 | |
| SCF1200 | 2 | |
| SCF1250 | 2.5 | |
| SCF1300 | 3 | |
| SCF1315 | 3.15 | |
| SCF1350 | 3.5 | 50A@250V/300V |
| SCF1400 | 4 | 200A@125V |
| SCF1500 | 5 | |
| SCF1600 | 6 | |
| SCF1630 | 6.3 | |
| SCF1700 | 7 | |
| SCF1750 | 7.5 | |
| SCF1800 | 8 | |
| SCF2100 | 10 | |
| SCF2120 | 12 | |
| SCF2150 | 15 | |
Features
Lead-Free and RoHS compliant
Inrush withstand capability
Wide range of current rating(125V/250V/300V)
Wide range of current rating(50mA-15A)
Excellent environmental integrity
Operating temperature range-55 ℃ to +125 ℃ (consider de-rating)
Applications
LED driver
Notebook/Laptops
PC computer
Digital camera
Office electronic equipment
Networking device
Telecom device
Industrial equipment
Power supply
LCD/LEDmonitor
backlight inverter

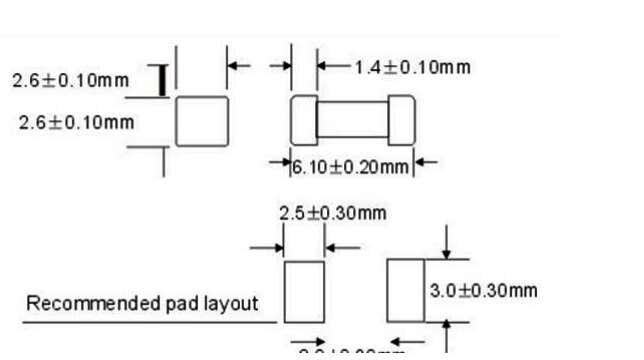

Dimension(Unit:mm)
Surface Mount Fuse - SinglFuse
Product Overview
The SinglFuse Surface Mount Fuse is a high-quality, compact and
efficient circuit protection solution for electronic devices and
systems. With a voltage rating of 350V and rated current of 2A,
this 2410 SMD Fuse provides slow blow protection for your valuable
equipment. It is designed to protect against overcurrent and short
circuits, ensuring the safe and reliable operation of your
electronic devices.
Key Features
- 2410 SMD Fuse
- Surface Mount Fuse
- Slow Blow Fuse
- Voltage Rating of 350V
- Rated Current of 2A
- Ul Recognized for 1A-20A
- Compact Size
- High-Quality Materials
- Reliable Circuit Protection
- Efficient Performance
- Easy to Install
Benefits
| Benefit | Description |
|---|
| Compact Size | The small size of this Surface Mount Fuse makes it suitable for use
in a variety of electronic devices and systems, without taking up
too much space. |
| High-Quality Materials | The SinglFuse is made from high-quality materials, ensuring its
durability and long-lasting performance. |
| Reliable Circuit Protection | This SMD Fuse provides reliable protection against overcurrent and
short circuits, ensuring the safe and uninterrupted operation of
your electronic devices. |
| Efficient Performance | The slow blow feature of this fuse allows for a slight delay before
breaking in case of a temporary surge, preventing unnecessary
interruptions and replacements. |
| Easy to Install | The Surface Mount design of this fuse makes it easy to install and
replace, saving time and effort in maintenance and repairs. |
Applications
The SinglFuse Surface Mount Fuse is suitable for a wide range of
electronic devices and systems, including but not limited to:
- Power Supplies
- LED Lighting
- Consumer Electronics
- Industrial Equipment
- Telecommunication Systems
- Medical Devices
- Automotive Electronics
Ordering Information
To order the SinglFuse Surface Mount Fuse, please use the following
table:
| Tradename | Speed | Voltage Rating | Rated Current | Ul Recognized |
|---|
| SinglFuse | Slow Blow | 350V | 2A | 1A-20A |
Contact Us
For any inquiries or to place an order, please contact our sales
team:
- Email: sales@singlfuse.com
- Phone: +1 (555) 123-4567
- Address: 123 Main Street, Anytown, USA
Features:
- Product Name: Surface Mount Fuse
- Package: Tape In Reel
- Current Ratings: 50mA-15A
- Voltage: 350V
- Width: 0.81 Mm
- Spq: 1500PCS Per Reel
- 6125 Brick Surface Mount Fuses
- SMD 0603 Surface Mount Fuses
- Surface Mount Fuses
Technical Parameters:
| Product Name | Surface Mount Fuse |
|---|
| SPQ | 1500 PCS Per Reel |
|---|
| Package | Tape In Reel |
|---|
| Tradename | SinglFuse |
|---|
| UL Recognized | 1A-20A |
|---|
| Current Ratings | 50mA-15A |
|---|
| Factory Pack Quantity | 1000 |
|---|
| Speed | Slow Blow |
|---|
| Resistance Tolerance | F=±1%, G=±2%, J=±5% |
|---|
| Power | 0.125W/0.25W/0.5W/1W/2W |
|---|
| Mounting | SMD |
|---|
| Key Features | 6125 Brick Surface Mount Fuses, SMD 0603 Surface Mount Fuses, 1032
1031 SMD Surface Mount Fuses |
|---|
Applications:
Surface Mount Fuse - LINKUN 2410 SBF
Brand Name: LINKUN
Model Number: 2410 SBF
Place of Origin: China DongGuang
Factory Pack Quantity: 1000
Current Ratings: 50mA-15A
Package: Tape In Reel
Standard Packaging Quantity (SPQ): 1500PCS Per Reel
Resistance Tolerance: F=±1%,G=±2%,J=±5%
SMD Fuse for Reliable Circuit Protection
The LINKUN 2410 SBF is a surface mount fuse used for reliable
circuit protection. It is designed for use in various electronic
devices and equipment to protect against overcurrent and short
circuit events.
Compact and Efficient Design
The SMD 0603 Surface Mount Fuse has a compact and efficient design,
making it suitable for use in small and compact electronic devices.
It can be easily mounted onto the surface of a printed circuit
board, saving space and reducing production costs.
Wide Range of Current Ratings
With a range of current ratings from 50mA to 15A, the 2410 SBF can
be used in a variety of electronic devices and equipment. This
makes it a versatile and adaptable fuse for various applications.
Highly Reliable and Consistent Performance
The SMD Fuse is designed to provide highly reliable and consistent
performance. It has a resistance tolerance of F=±1%, G=±2%, and
J=±5%, ensuring consistent and accurate protection for your
electronic devices.
Easy to Use and Handle
The LINKUN 2410 SBF comes in a tape in reel package, with a
standard packaging quantity of 1500PCS per reel. This makes it easy
to use and handle in production processes, ensuring efficient and
convenient installation.
Made in China with High-Quality Standards
The 2410 SBF is proudly made in China, specifically in DongGuang,
with high-quality standards. It undergoes strict quality control
processes to ensure its reliability and performance, making it a
trusted and dependable choice for circuit protection.
Applications and Usage Scenarios
The LINKUN 2410 SBF is suitable for a wide range of applications,
including but not limited to:
- Smartphones and tablets
- Laptops and computers
- Printers and scanners
- LED lighting systems
- Automotive electronics
- Home appliances
- Industrial equipment
It can be used in various usage scenarios, such as:
- Consumer electronics
- Telecommunications
- Industrial automation
- Medical equipment
- Power supplies
Customization:
Customization Service for Surface Mount Fuse - LINKUN 2410 SBF
Product Attributes:
- Brand Name: LINKUN
- Model Number: 2410 SBF
- Place of Origin: China DongGuang
- Current Ratings: 50mA-15A
- Gross Weight: 0.15 G
- Mounting: SMD
- Tradename: SinglFuse
- Ul Recognized: 1A-20A
Key Features:
The LINKUN 2410 SBF is a surface mount fuse designed for use in
various electronic applications. With a wide range of current
ratings from 50mA to 15A, this fuse is suitable for different power
requirements. It is lightweight with a gross weight of only 0.15 G,
making it ideal for compact and portable devices.
The fuse is mounted using surface mount technology, allowing for
easy and efficient installation. Its tradename, SinglFuse, ensures
high-quality and reliable performance. Additionally, it is UL
recognized for current ratings ranging from 1A to 20A, ensuring
safety and compliance with industry standards.
Customization Options:
At LINKUN, we offer customization services for the 2410 SBF surface
mount fuse to meet specific requirements. Customers can choose from
a variety of current ratings, ranging from 50mA to 15A, to suit
their power needs. We also provide options for different mounting
styles, such as SMD and 6125 brick surface mount fuses, to
accommodate various applications.
Furthermore, our customization service allows for the addition of
special features, such as thermal and overcurrent protection, to
enhance the fuse's performance and reliability. Our team of experts
can work closely with customers to tailor the fuse according to
their unique specifications.
Choose LINKUN for your surface mount fuse needs and experience our
high-quality products and exceptional customization services.
Contact us today for more information.
