1206 Fuse SMD One-Time Blow Fuse 0.25A 0.5A 0.75A 1A 1.5A 2A 3A 5A
63(V)
Product Description:
1206 Electronic Components Miniature Chipe Type Slow Blow Time-lag
Time-Lag SMD Surface Mount Fuses
Electrical Characteristcs
| Rated Current | % of AmpRating | Opening Time |
| 250mA~10A | 100% | 4hours, min |
| 1A~3A | 200% | 1.0s - 60 s |
| 1A~5A | 250% | 5.0s max |
| 1A~5A | 300% | 0.1s - 3.0 s |
| 250mA~750mA | 350% | 5.0s max |
| 6A~10A | 350% | 5.0s max |
| 250mA~10A | 1000% | 0.2ms - 20.0 ms |
Specification
| Part No. | Rated Voltage | Rated Current | Breaking Capacity | Typical Cold Resistance (mOhms)² | Typical Voltage Drop (mV) | Typical Pre-Arcing I²t
(A²Sec)³ | Marking |
| 12.100.0.25 | 72Vdc 125Vdc | 63Vdc | 32Vdc 24Vdc | 250mA | 100A@ 72Vdc 125 Vdc | 100A@ 63Vdc | 100A@ 32Vdc 300A@ 24Vdc | 3700 | 1350 | 0.00038 | I |
| 12.100.0.375 | 375mA | 1850 | 720 | 0.00077 | E |
| 12.100.0.5 | 500mA | 1050 | 690 | 0.0019 | B |
| 12.100.0.75 | 750mA | 775 | 680 | 0.15 | C |
| 12.100.1 | 1A | 485 | 550 | 0.18 | H |
| 12.100.1.5 | 1.5A | 218 | 355 | 0.4 | K |
| 12.100.2 | 2A | 133 | 310 | 1.1 | N |
| 12.100.2.5 | 2.5A | 79 | 230 | 1.7 | O |
| 12.100.3 | 3A | 49 | 185 | 2.2 | P |
| 12.100.3.5 | 3.5A | - | 37 | 175 | 2.7 | R |
| 12.100.4 | 4A | 33 | 160 | 3.2 | S |
| 12.100.4.5 | 4.5A | 28 | 150 | 4.2 | X |
| 12.100.5 | 5A | 22 | 135 | 6 | T |
| 12.100.6 | | - | 6A | - | 15.5 | 140 | 12 | F |
| 12.100.7 | 7A | 11.5 | 120 | 18 | J |
| 12.100.8 | 8A | 8.0 | 100 | 18 | V |
| 12.100.10 | 10A | 7.0 | 90 | 30 | U |
Description
1206 SLOW BLOW SMD FUSE
12.100 Series are the fuses set the industry standard for
performance, reliability
and quality. The solder-free design provides excellent on-off and
temperature
cycling characteristics during use and also makes our SMD fuses
more heat and
shock tolerant than typical subminiature fuses.
Features
Rapid interruption of excessive current
Compatible with reflow and wave solder
Ceramic and glass construction
One time positive disconnect
Lead free and Halogen free material
Applicatons
Secondary circuit protection
Laptop, notebook, netbook
Flat panel displays
High definition television(HDTV)
LCD/LED backlighting Computers and peripherals
Gaming console systems
Handheld/portable equipment
Mobile device charges
Automotive
Central body control module
Heating ventilation and air conditioning
Doors,window lift and seat control
Digital instrument cluster
In-vehicle infotainment and navigation
Electric pumps,motor control
Powertrain control module(PCU)/Engine
Transimission Control Unit(TCU)
Installation Recommendations
| Reflow Conditon | Pb-free assembly |
| Pre Heat | - Temperature Min (Ts(min)) | 150℃ |
| - Temperature Max (Ts(max)) | 200℃ |
| - Time (Min to Max) (ts) | 60 – 120 seconds |
Average Ramp-up Rate (Liquidus Temp
(TL) to peak) | 3℃/second max. |
| TS(max) to TL - Ramp-up Rate | 5℃/second max. |
| Reflow | - Temperature (TL) (Liquidus)
- Temperature (tL) | 217℃
60 – 150 seconds |
| Peak Temperature (TP) | 260+0/-5℃ |
| Time within 5°C of actual peak Temperature (tp) | 30 seconds |
Ramp-down Rate
Time 25°C to peak Temperature (TP)
Do not exceed | 6°C/second max
8 minutes max. 260°C |
Product Characteristics
| Materials | Body: Ceramic
Terminatons: Silver over-plated with tin
Element: Alloy(Ag,Cu,Zn)
Cover Coat:Glass |
| Operatng Temperature | -55°C to 125°C
Consult temperature rerating curve chart. |
| Thermal Shock | 300 cycles -55°C to 125°C |
| Humidity | MIL-STD-202F, Method 103B,Condition D |
| Vibraton | Per MIL-STD-202F, Method 201A |
| Insulaton Resistance (Afer Opening) | Greater than 10,000 ohms |
| Resistance to Soldering Heat | MIL-STD-202G,Method 210F, Condition D |

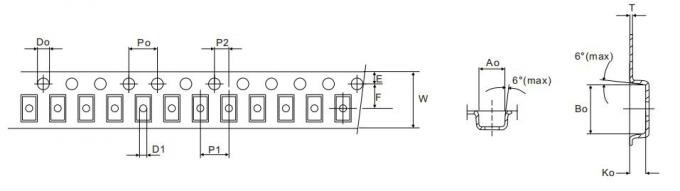

Packaging
3,000 pieces of fuses in plastic or paper taper
Product Overview: Surface Mount Fuse - SinglFuse
The Surface Mount Fuse, also known as SinglFuse, is a type of fuse
specifically designed for surface mount applications. It is a
small, compact and high-performance fuse that is widely used in
various electronic devices for overcurrent protection. The
SinglFuse is a part of the 6125 Brick Surface Mount Fuses series,
with the SMD 0603 Surface Mount Fuses being the most popular size.
UL Recognized for Safety
The SinglFuse has been UL Recognized, ensuring its compliance with
safety standards and regulations. This means that the fuse has been
tested and certified to meet the requirements for overcurrent
protection, providing peace of mind to users.
Wide Range of Current Ratings
The SinglFuse is available in a range of current ratings from 1A to
20A, making it suitable for a variety of applications. These
ratings are carefully selected to meet the needs of different
electronic devices, providing reliable protection against
overcurrent and short circuits.
Lightweight and Compact Design
The SinglFuse has a gross weight of only 0.15 G, making it a
lightweight and compact solution for overcurrent protection. Its
small size allows for easy installation on circuit boards, saving
valuable space and reducing production costs.
SMD Mounting for Easy Installation
The SinglFuse is designed for SMD (Surface Mount Device) mounting,
which is a popular method for attaching electronic components to
circuit boards. This type of mounting allows for automated
production processes, reducing the time and cost of installation.
High Quantity per Reel
The SinglFuse is packaged in reels with a standard quantity of 1500
pieces per reel. This high quantity per reel makes it a
cost-effective solution for manufacturers, reducing the need for
frequent reel changes and increasing production efficiency.
Overall, the SinglFuse is a reliable, safe, and efficient solution
for overcurrent protection in surface mount applications. Its UL
Recognized certification, wide range of current ratings,
lightweight and compact design, SMD mounting, and high quantity per
reel make it the top choice for electronic manufacturers.
Features:
- Product Name: Surface Mount Fuse
- Fuse Element: Cu-Ag Alloy Wire
- Resistance Tolerance: F=±1%,G=±2%,J=±5%
- Speed: Slow Blow
- Mounting: SMD
- Factory Pack Quantity: 1000
- Other variations available: 6125 Brick Surface Mount Fuses, 2410
SMD Fuse
Technical Parameters:
Applications:
Surface Mount Fuse for Reliable Overcurrent Protection – LINKUN
2410 SBF
Welcome to the world of LINKUN 2410 SBF - the perfect solution for
your overcurrent protection needs. Our surface mount fuse is
designed to meet the highest standards of safety and reliability,
making it a popular choice for various electronic applications.
Brand Name and Model Number
LINKUN is a well-known brand in the electronics industry, and our
2410 SBF is one of our most popular products. The model number 2410
indicates the size of the fuse, which is 2.4mm x 1.0mm, and SBF
stands for "surface mount fuse".
Origin and Mounting
Our 2410 SBF fuses are proudly made in China, specifically in the
city of DongGuang. They are designed to be mounted on the surface
of a printed circuit board (PCB), making them easy to install and
replace.
Fuse Element
The fuse element is the heart of any fuse, and ours is made of
high-quality Cu-Ag alloy wire. This material offers excellent
conductivity and resistance to heat, ensuring the fuse can handle
high currents without melting or breaking.
Package and Tradename
The 2410 SBF fuses come in a convenient tape in reel package,
making them suitable for mass production in electronic
manufacturing. They are also known by the tradename SinglFuse,
which represents their single-use design.
Rated Current
The 2410 SBF fuses have a rated current of 2A, which means they can
handle a maximum current of 2 amps without blowing. This makes them
ideal for protecting sensitive electronic circuits from overcurrent
damage.
Application and Usage Scenario
The 2410 SBF fuses are widely used in various electronic
applications, such as power supplies, battery chargers, LED
lighting, and motor control systems. They are essential for
protecting these devices from short circuits and overloads,
ensuring their safe and reliable operation.
For example, imagine a power supply circuit that is connected to
multiple electronic devices. If there is a short circuit in one of
the devices, it can cause a surge of current that can damage the
entire circuit. However, with the 2410 SBF fuse in place, it will
quickly blow and cut off the flow of current, preventing any damage
to the circuit.
In another scenario, let's say you are using an LED lighting system
in your home. If there is a sudden spike in the power supply, it
can cause the LEDs to burn out. But with the 2410 SBF fuse
installed, it will act as a safety barrier and prevent any
overcurrent from reaching the LEDs, saving you from costly repairs.
Conclusion
The LINKUN 2410 SBF is a highly reliable and efficient surface
mount fuse that offers excellent overcurrent protection for various
electronic applications. With its compact size, strong fuse
element, and easy installation, it is the perfect choice for any
circuit that requires a dependable safety measure. Trust LINKUN for
all your fuse needs and ensure the safety of your electronic
devices.
Customization:
LINKUN Surface Mount Fuse Customized Service
LINKUN provides customizable services for our SMD 0603 Surface
Mount Fuses, model number 2410 SBF. Our fuses are manufactured in
our factory in China DongGuang and are designed to meet the
specific needs of our customers.
Product Details
- Brand Name: LINKUN
- Model Number: 2410 SBF
- Place of Origin: China DongGuang
- Rated Current: 2A
- Package: Tape In Reel
- Ul Recognized: 1A-20A
- Speed: Slow Blow
- Factory Pack Quantity: 1000
Customization Options
At LINKUN, we understand that every project has unique requirements
and we offer customizable options to meet those needs. Our
customization options include:
- Adjusting the rated current to fit your application
- Customized packaging options
- Personalized labeling with your company logo
- Customized fuse length for space-saving solutions
For more information on our customization options, please contact
our sales team.
Why Choose LINKUN?
There are many reasons why LINKUN is the best choice for your
surface mount fuse needs:
- Over 10 years of experience in the industry
- State-of-the-art manufacturing facility in China DongGuang
- High-quality products with UL recognition
- Strict quality control measures to ensure product reliability
- Competitive pricing and fast delivery
- Expert technical support and customer service
Choose LINKUN for all your surface mount fuse needs. Contact us
today for a customized quote and see the difference our products
and services can make for your business.
Packing and Shipping:
Packaging and Shipping of Surface Mount Fuse
The Surface Mount Fuse is carefully packaged to ensure its safety
and protection during shipping. The packaging materials used are of
high quality and are designed to withstand any potential damage
during transportation.
Packaging Materials
- Anti-static bags
- Bubble wrap
- Cardboard box
Packaging Process
First, the Surface Mount Fuse is placed in an anti-static bag to
prevent any static electricity from damaging the product. Then, the
bag is wrapped with bubble wrap to provide additional protection
against any impact during shipping.
After that, the wrapped product is placed in a sturdy cardboard
box, which is then sealed and labeled with the necessary
information, such as product name, model number, and shipping
address.
Shipping Methods
The Surface Mount Fuse can be shipped through various methods,
depending on the customer's preference and location. These methods
include:
- Standard shipping
- Express shipping
- International shipping
We work with trusted shipping carriers to ensure prompt and secure
delivery of our products to our customers worldwide.
For bulk orders, special packaging and shipping arrangements can be
made to meet the specific needs of our customers.
Shipping Documents
Along with the product, we provide all the necessary shipping
documents, including a commercial invoice, packing list, and
certificate of origin, to facilitate smooth customs clearance and
delivery of the product.
Thank you for choosing our Surface Mount Fuse. We are committed to
providing high-quality products and ensuring their safe delivery to
our customers.
