Product Description:
1032 1031 LCD Backlight Inverter System Telecom Square Type Slow
Blow Fast Acting SMD Fuses
| SCOPE |
| Notebook PC | LCD/PDF TV | LCD/PDP panel | LCD monitor |
| LCD backlight inverter | Portable DVE player | Power supply | Networking |
| PC server | Cooling fan system | Storage system | Telecom system |
| Wireless base station | White goods | Game console | Automotive |
| Battery charging circuit | Office Automation | Industrial equipment | Medical equipment |
| NO. | Component | Material | Quantity |
| ① | Cap | Silver Plated Brass | 2 |
| ② | Body | Ceramic tube | 1 |
PRODUCT CHARACTERISTICS
| No. | Item | Contain | Reference standard |
| 1 |
Insulation Resistance | 10,000 ohms minimum | MIL-STD-202G, Method 302 Test ConditionA |
| 2 |
Solderability | T=235℃±5 ℃, t=5+0/-0.5s,
Cover≧95% | MIL-STD-202G, Method 208H |
| 3 |
Resistance to Soldering Heat | 10 sec at 260℃ | MIL-STD-202G, Method 210F Test
Condition B |
| 4 |
Thermal Shock | 5 cycles, -65℃ to 125℃,
15minutes @each extreme | MIL-STD-202G, Method 107G Test
Condition B |
| 5 |
Mechanical Shock | 100G’s peak for 6 milliseconds, 3 cycles | MIL-STD-202G, Method 213B Test 1 |
| 6 |
Vibration | 0.03” amplitude, 10-55 Hz in 1 min. 2hrs each XYZ=6hrs | MIL-STD-202G, Method 201A |
| 7 |
Moisture Resistance | 10 cycles | MIL-STD-202G, Method 106G |
| 8 |
Salt spray | 48hrs | MIL-STD-202G, Method 101E Test
Condition B |
ELECTRICAL CHARACTERISTICS
| Ampere Rating | % of Ampere Rating | Opening Time |
| 200mA – 10A | 100% | 4 hours, Min . |
| 250% | 120s, Max . |
| Reflow Condition | Pb-Free Assembly |
| Preheating | -Temperature Min Ts(min) | 150℃ |
| -Temperature Max Ts(man) | 200℃ |
| -Time Max | 120 secs |
| Soldering | -Temperature (TL)(Liquidus) | 260℃ |
| -Time Max (TL) | 60 secs |
| -Temperature (TP) | Max260℃ |
| -Time Max (TP) | 10 secs |
Material Details
| NO. | Part Name | Material |
| 1 | Element | Silver Alloy . |
| 2 | Body . | Body |
| 3 | Cap | Brass gold plated |
Product Characteristic
| Rated current | Rated voltage | Breaking capacity | Safety Aproval |
| UR |
| 50mA | | | ● |
| 62mA | | | ● |
| 80mA | | | ● |
| 100mA | | | ● |
| 125mA | | | ● |
| 160mA | | | ● |
| 200mA | | | ● |
| 250mA | | | ● |
| 315mA | | | ● |
| 400mA | | | ● |
| 500mA | | 100A@125V | ● |
| 630mA | 125V/250V /350 | 100A@250V | ● |
| 800mA | V/400Vac | 50A@350V | ● |
| 1.0A | | 50A@400V | ● |
| 1.25A | | | ● |
| 1.6A | | | ● |
| 2.0A | | | ● |
| 2.5A | | | ● |
| 3.15A | | | ● |
| 4.0A | | | ● |
| 5.0A | | | ● |
| 6.3A | | | ● |
| 8.0A | | | ● |
| 10.0A | | | ● |
Opening Time
% of Ampere Rating | Opening Time(UL) |
100% | T>4hrs |
250% | T<120s |

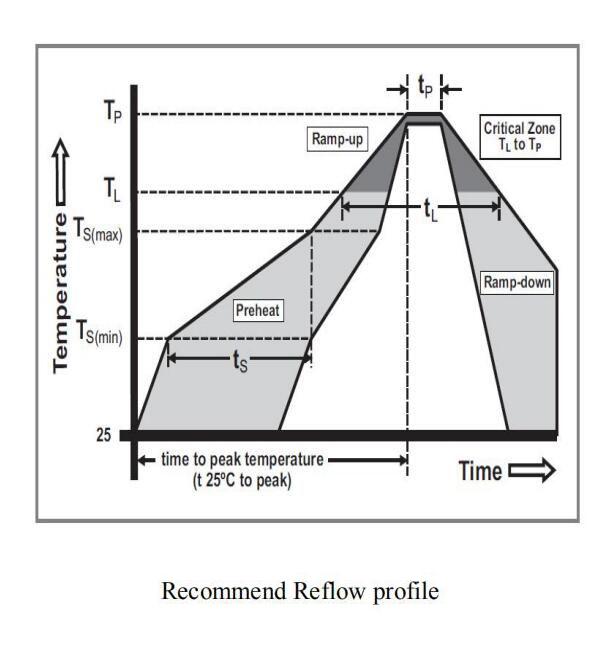

| Profile Featuren | Pb-Free assembly |
Average Ramp-up Rate (Tsmax to Tp) | 3 °C /sec Max. |
Preheat Temperature Min Ts(min) Temperature Max Ts(max) Temperature Max Ts(max) | 150°C 200°C 60-120 sec |
| Peak Temperature(Tp) | 250°C |
Time within 5°C of actual Peak Temperature(Tp) | 5 sec |
| Melting tin time(TL) | 20sec~4Osec |
| Ramp-down Rate | 6°C/sec Max . |
| Time25 °Cto peak Temperature | 8minutes Max |
Surface Mount Fuse
Surface Mount Fuse is a type of fuse that is designed to be mounted
on printed circuit boards (PCBs) using surface mount technology
(SMT). It is commonly used in electronic devices and equipment to
protect against overcurrent and short circuits. The Surface Mount
Fuse is a compact and reliable solution for circuit protection in a
wide range of applications.
Product Overview
The Surface Mount Fuse is a type of surface mount fuse that is
available in two models - 1032 and 1031. These fuses have a rated
current of 2A and a width of 0.81 mm, making them suitable for use
in various PCB designs. They are designed to be mounted on the
surface of the PCB using SMD technology, eliminating the need for
traditional through-hole mounting.
Features
- Rated Current: 2A
- Width: 0.81 mm
- Mounting: SMD
- SPQ: 1500PCS per reel
- Factory Pack Quantity: 1000
Benefits
The Surface Mount Fuse offers several benefits, including:
- Compact size: The small size of the Surface Mount Fuse makes it a
space-saving solution for circuit protection.
- Easy to install: The SMD mounting technology allows for easy and
quick installation on PCBs.
- High reliability: The Surface Mount Fuse is designed to provide
excellent protection against overcurrent and short circuits,
ensuring the safety and reliability of electronic devices and
equipment.
- Cost-effective: The high SPQ and factory pack quantity of the
Surface Mount Fuse make it a cost-effective choice for
manufacturers.
Applications
The Surface Mount Fuse can be used in a wide range of electronic
devices and equipment, including:
- Computers and laptops
- Mobile devices
- Consumer electronics
- Industrial equipment
- Automotive electronics
- Medical devices
- And more
Models
The Surface Mount Fuse is available in two models:
- 1032 Surface Mount Fuse: This model has a size of 1032, with
dimensions of 3.2 x 1.6 mm.
- 1031 Surface Mount Fuse: This model has a size of 1031, with
dimensions of 3.1 x 1.6 mm.
Conclusion
The Surface Mount Fuse is a reliable and cost-effective solution
for circuit protection in electronic devices and equipment. With
its compact size, easy installation, and high reliability, it is a
popular choice among manufacturers. Choose the 1032 or 1031 SMD
Surface Mount Fuse for your next PCB design and ensure the safety
and reliability of your electronic products.
Features:
- Product Name: Surface Mount Fuse
- Voltage: 350V
- Mounting: SMD
- Gross Weight: 0.15 G
- Spq: 1500PCS Per Reel
- Ul Recognized: 1A-20A
- 6125 Brick Surface Mount Fuses
- SMD Fuse
- 1032 1031 SMD Surface Mount Fuses
Technical Parameters:
| Product Name | Surface Mount Fuse |
|---|
| Voltage | 350V |
| Rated Current | 2A |
| Gross Weight | 0.15 G |
| Spq | 1500PCS Per Reel |
| Mounting | SMD |
| Speed | Slow Blow |
| Tradename | SinglFuse |
| Resistance Tolerance | F=±1%,G=±2%,J=±5% |
| Current Ratings | 50mA-15A |
| Width | 0.81 Mm |
| Keywords | 1032 1031 SMD Surface Mount Fuses, SMD 0603 Surface Mount Fuses,
SMD 0603 Surface Mount Fuses |
Applications:
Surface Mount Fuse - Perfect for a Wide Range of Applications
The Surface Mount Fuse, also known as SMD Fuse, is a small and
compact fuse designed to be mounted on the surface of a printed
circuit board (PCB). It is widely used in a variety of electronic
devices, such as televisions, computers, power supplies, and
automotive electronics. This versatile fuse is an essential
component for protecting electronic circuits from overcurrents and
short circuits.
At LINKUN, we specialize in manufacturing and supplying
high-quality 1032 1031 SMD Surface Mount Fuses, with the model
number 2410 SBF. Our fuses are made in China, in the city of
DongGuang, using the latest technology and highest quality
materials. Our commitment to excellence has made us a trusted SMD
Fuse Manufacturer and Supplier in the industry.
Product Features
- Brand Name: LINKUN
- Model Number: 2410 SBF
- Place of Origin: China DongGuang
- Resistance Tolerance: F=±1%,G=±2%,J=±5%
- Package: Tape In Reel
- Ul Recognized: 1A-20A
- Factory Pack Quantity: 1000
- Voltage: 350V
Application and Usage
The SMD Fuse is suitable for a wide range of applications and can
be used in any electronic device that requires protection from
overcurrents and short circuits. Some common applications include:
- Televisions and home appliances
- Computers and laptops
- Power supplies and chargers
- Automotive electronics
- Industrial control systems
- Medical equipment
The SMD Fuse is designed to be mounted on the surface of a PCB,
making it ideal for use in compact and space-constrained electronic
devices. Its small size and low profile also make it easy to
integrate into the design of various electronic circuits.
Why Choose LINKUN SMD Fuses?
As a leading SMD Fuse Manufacturer and Supplier, we take great
pride in the quality and reliability of our products. Here are some
reasons why you should choose LINKUN for your SMD Fuse needs:
- High-quality materials and advanced manufacturing processes ensure
superior performance and durability.
- Our fuses are UL recognized, providing peace of mind and assurance
of safety.
- We offer a wide range of resistance tolerances to meet the specific
needs of different electronic devices.
- The SMD Fuses are available in a tape in reel package, making them
easy to handle and use in high-volume production.
- We offer a factory pack quantity of 1000, providing
cost-effectiveness and convenience for our customers.
Choose LINKUN as your trusted SMD Fuse Supplier and experience the
reliability and quality of our products for yourself!
Customization:
LINKUN 2410 SBF Surface Mount Fuse Customized Service
Brand Name: LINKUN
Model Number: 2410 SBF
Place of Origin: China DongGuang
UL Recognized: 1A-20A
Width: 0.81 Mm
Fuse Element: Cu-Ag Alloy Wire
Factory Pack Quantity: 1000
Tradename: SinglFuse
Looking for a reliable surface mount fuse for your electronic
products? Look no further than LINKUN's 2410 SBF surface mount
fuse. Designed for easy installation and space-saving, our 2410 SBF
fuse is the perfect choice for your circuit protection needs.
With our customized service, you can trust that your specific
requirements will be met with precision and quality. Our
experienced team in China DongGuang will work closely with you to
ensure that your desired specifications are incorporated into the
design and production of your 2410 SBF fuse.
Not only is our 2410 SBF fuse UL recognized for its safety and
reliability, but it also comes in a wide range of amp ratings from
1A to 20A, making it suitable for various electronic applications.
With a width of only 0.81mm, this fuse is ideal for saving space in
your circuit design.
The fuse element of our 2410 SBF fuse is made of Cu-Ag alloy wire,
known for its high conductivity and low resistance, ensuring
efficient and effective circuit protection. And with a factory pack
quantity of 1000, you can count on us to provide you with a
consistent and reliable supply of SinglFuse 2410 SBF surface mount
fuses.
Choose LINKUN for your surface mount fuse needs and experience our
superior quality and customized service. Contact us today to learn
more and place your order!
Packing and Shipping:
Packaging and Shipping of Surface Mount Fuse
+ +
Surface Mount Fuse is packaged and shipped with the utmost care to
ensure its safe arrival at the destination. The packaging and
shipping process is carefully designed to protect the fuse from any
damage during transit.
+ +
Packaging
+ +
The Surface Mount Fuse is first placed in a protective plastic or
foam packaging to prevent any physical damage. The packaging is
then placed in a sturdy cardboard box with additional cushioning
materials such as bubble wrap or packing peanuts for extra
protection.
+ +
The box is sealed with strong packaging tape and labeled with the
product name, model number, and shipping information.
+ +
Shipping
+ +
Surface Mount Fuse is shipped via reliable and reputable shipping
carriers to ensure timely and safe delivery. The shipping method is
chosen based on the destination and urgency of the delivery.
+ +
Once the package is ready, it is handed over to the shipping
carrier and a tracking number is provided for easy tracking of the
shipment.
+ +
For international shipping, additional customs forms and documents
may be required to comply with the regulations of the destination
country.
+ +
Upon arrival at the destination, the package is inspected for any
damage before being handed over to the customer.
+ +
With our careful packaging and reliable shipping methods, you can
be assured that your Surface Mount Fuse will arrive safely and in
perfect condition.
