SET Radial Alloy Type Fuse Thermal Fuse Y Series Thermal Fuse
73℃-240℃ 5A 250V Thermal Fuse
Product Description:
S And T Series SET Square Temperature Fuse Fan Motor Thermal
Protector Thermal Cutoff Fuses
Model: S&T series
Rated temperature: 102℃ to 136℃
Actual operating temperature: 98℃ to 131℃
Keep temperature: 72℃ to 106℃
Limit temperature: 200℃
Rated current: 10A 15A16A
Rated voltage: 250V
Nominal surge: 5KA 6KA
Surge: 10KA 12KA
Approved: UL, CUL, VDE, CCC, PSE
Meet ROHS, REACH environmental protection requirements
Appearance size: 8.3*7.5*3.4
Application areas: lightning protection devices, batteries,
transformers, switching power supplies, lamps, household appliances
Packing information: product packing quantity: 20Kpcs/carton
Carton size: 44CM*30CM*26CM
Description
Alloy Thermal-link Thermal Cutoff (TCO) is defined as a
non-resettable protective device functioning one time only. It is
wide-ly used in electrical equipment. Alloy TCO is mainly consist
of fusible lloy, flux, plastic or ceramic case, sealant epoxy and
lead wires. Normally, fusible alloy is jointed to the two lead
wires. Under abnormal conditions, when the temp reaches to the
fusing temp. of aloy TCO, the fusible alloy melts and quickly
retracts to the two lead wire ends with the aid of the fux and
disconnects the circuit completely.
Structure

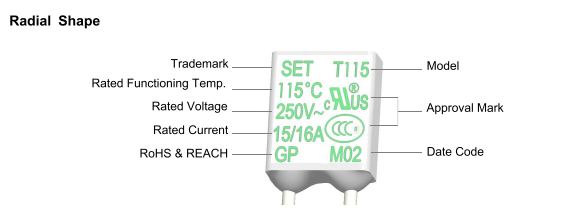

Marking
| A | B | C | D | E* | F* |
| 8.3士0.5 | 7.5士0.5 | 3.4士0.2 | 1.05士0.05 | 45士5 | 5.2士0.5 |
| Model NO. | Tf (°C) | Fuse-Temp(°C) | TH(°C) | TM(°C) | Ir(A) | Ur(V) | *In8/20us(15Time) | *Imax8/20us(1 Time) | UL | CUL | VDE | CCC | PSE | RoHS |
| S102 | 102 | 98+2 | 72 | 200 | 10 | 250AC | 5KA | 10KA | ● | ● | ● | ● | ● | ▲ |
| S115 | 115 | 111+2 | 85 | 200 | 10 | 250AC | 5KA | 10KA | ● | ● | ● | ● | ● | ▲ |
| S136 | 136 | 131+2 | 106 | 200 | 10 | 250AC | 5KA | 10KA | ● | ● | ● | ● | ● | ▲ |
| T102 | 102 | 98+2 | 72 | 200 | 15/16 | 250AC | 6KA | 12KA | ● | ● | ● | ● | ● | ▲ |
| T115 | 115 | 111+2 | 85 | 200 | 15/16 | 250AC | 6KA | 12KA | ● | ● | ● | ● | ● | ▲ |
| T136 | 136 | 131+2 | 106 | 200 | 15/16 | 250AC | 6KA | 12KA | ● | ● | ● | ● | ● | ▲ |
Key Features
● Plastic Case
● One-time Over Temperature Protection
● Alloy Type Thermal-link
● Large Surge Capacity(8/20μs)
● RoHS & REACH Compliant
Applications
● SPDs
● Batteries
● Transformers
● Lamps and Lanterns
● Switched-Mode Power Supply
● Home electrical Appliances
Customized
Other temperatures can be customized
such as:85℃,90℃,92℃,95℃,97℃,100℃,103℃,108℃,117℃,120℃,127℃,
and etc.The length of lead wires can be customized as required.
Thermal Cutoff Fuse
A thermal cutoff fuse, also known as a thermal overload switch or
temperature sensitive circuit breaker, is a safety device designed
to protect electrical appliances from overheating and potential
fires.
Product Description
The Thermal Cutoff Fuse is a highly effective and reliable safety
component that is essential in preventing potential hazards caused
by overheating. It is designed to interrupt the flow of electricity
when the rated temperature of the device is exceeded, thus
protecting the appliance and its surroundings from any potential
damage.
Rated Temperature
The Thermal Cutoff Fuse has a wide temperature range, with the
lowest rated temperature being 76℃ and the highest rated
temperature being 260℃. This makes it suitable for use in a variety
of electrical appliances, from small household devices to large
industrial equipment.
Case
The Thermal Cutoff Fuse is encased in a durable metal casing,
ensuring its longevity and protection against external factors such
as heat, moisture, and physical damage. This metal case also
provides a secure and stable structure for the fuse, making it
ideal for use in different environments.
Breaking Capacity
The Thermal Cutoff Fuse has a high breaking capacity, meaning it
can interrupt the flow of electricity quickly and effectively when
the rated temperature is exceeded. This ensures the safety of the
appliance and reduces the risk of potential fires or damage.
Shape
The Thermal Cutoff Fuse has a resistor shape, which is compact and
space-saving. This allows it to be easily integrated into different
electrical circuits without taking up too much space. The resistor
shape also helps to dissipate heat efficiently, making it suitable
for use in high-temperature environments.
Usage
The Thermal Cutoff Fuse is primarily used for thermal protection in
electrical appliances. It is commonly found in hair dryers, coffee
makers, electric irons, and other household appliances. It is also
widely used in industrial equipment, such as motors, transformers,
and electronic control panels, to prevent overheating and ensure
safety.
Conclusion
The Thermal Cutoff Fuse is an essential safety device that plays a
critical role in protecting electrical appliances and preventing
potential hazards. With its wide temperature range, durable metal
case, high breaking capacity, compact shape, and broad usage, it is
a reliable and effective thermal protection solution for both
household and industrial applications.
Features:
- Product Name: Thermal Cutoff Fuse
- Breaking Capacity: High
- Rated Current: 10A, 16A
- Case: Metal
- Rated Voltage: 250V
- Shape: Resistor
- Thermal Fuse
- Thermal Cutoff Switch
- Thermal Protection
- Overheat Protection
Technical Parameters:
| Specifications | Values |
|---|
| Product Name | Thermal Cutoff Fuse |
| Rated Current | 10A, 16A |
| Case | Metal |
| Rated Voltage | 250V |
| Shape | Resistor |
| Rated Temperature | 76℃ to 260℃ |
| Usage | Thermal Safety Cutoff, Thermal Overload Switch, Thermal Safety
Cutoff Fuse |
| Size | 62x4mm |
| Breaking Capacity | High |
Applications:
Thermal Cutoff Fuse - LinKun RY RYB Series
Brand Name: LinKun
Model Number: RY RYB Series
Place of Origin: China DongGuang
Rated Voltage: 250V
Breaking Capacity: High
Rated Current: 10A 16A
Usage: Thermal
Size: 62x4mm
Application and Scenario
