CDS photoresistor Φ3mm GM3516 bright resistance 5-10KΩ voltage 100V
Suitable for toys, lamps, cameras and other industries.
GM35 series photoresistor
A photoresistor is a resistor made of a semiconductor material
whose conductivity changes linearly as the illuminance changes.
Photoresistor is widely used in toys, lamps, cameras and other
industries.
Structure diagram
Unit: mm
Performance and characteristics
Epoxy resin package has Good reliability
Small size High sensitivity
Fast reaction speed Good spectral characteristics
Scope of application
The camera automatically measures light Photoelectric control
Indoor light control Alarm apparatus
Industrial control Light-controlled switch
Electronic toy Light control lights
Model and specification
| Specification | Model | Max Voltage VDC | Max Power consumptionmw | Environment temperature℃ | Spectrum peaknm | Bright resistor(10Lux) KΩ | Dark resistance≥ MΩ | y100 10
| Response time(ms) | Illuminance characteristic diagram number |
| Rise | Decline |
| Φ3series | GM3516 | 100 | 50 | -30~+70 | 540 | 5-10 | 0.2 | 0.5 | 30 | 30 | 1 |
| GM3528 | 100 | 50 | -30~+70 | 540 | 10-20 | 1 | 0.6 | 30 | 30 | 2 |
| GM3537-1 | 100 | 50 | -30~+70 | 540 | 20-30 | 2 | 0.6 | 30 | 30 | 3 |
| GM3537-2 | 100 | 50 | -30~+70 | 540 | 30-50 | 3 | 0.7 | 30 | 30 | 3 |
| GM3539 | 100 | 50 | -30~+70 | 540 | 50-100 | 5 | 0.8 | 30 | 30 | 5 |
| GM3549 | 100 | 50 | -30~+70 | 540 | 100-200 | 10 | 0.9 | 30 | 30 | 5 |
Test condition
Maximum applied voltage: the maximum voltage that can be
continuously applied to a component in the dark;
Dark resistance: resistance value of 10 seconds after 10Lux
illumination is turned off;
Maximum power consumption: the maximum power consumption when the
ambient temperature is 25℃;
Bright resistance: After 2 hours of irradiation with 400-600Lux,
the test value under 10Lux light of standard light source (color
temperature 2854K);
Gamma value: The logarithm of the ratio of the standard resistance
value at 10Lux and 100Lux.
Lg (R10/R100)
Gamma = =Lg(R10/R100)
Lg (100/10)
R10 and R100 are resistance values of 10Lux and 100Lux illumination
respectively (tolerance of γ is ±0.1)

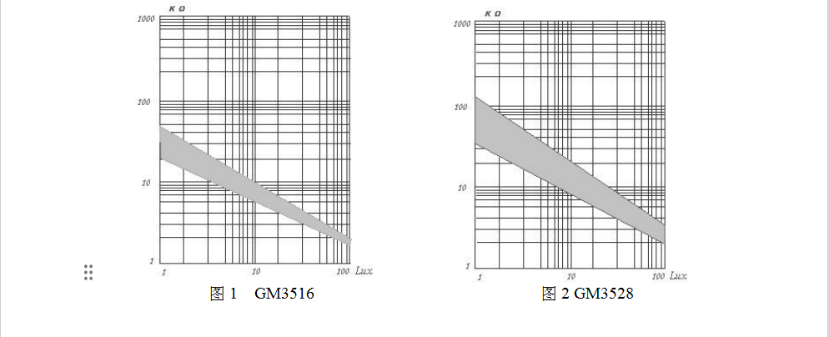

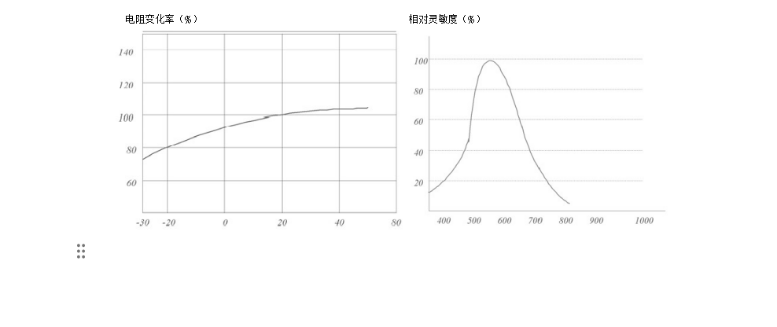

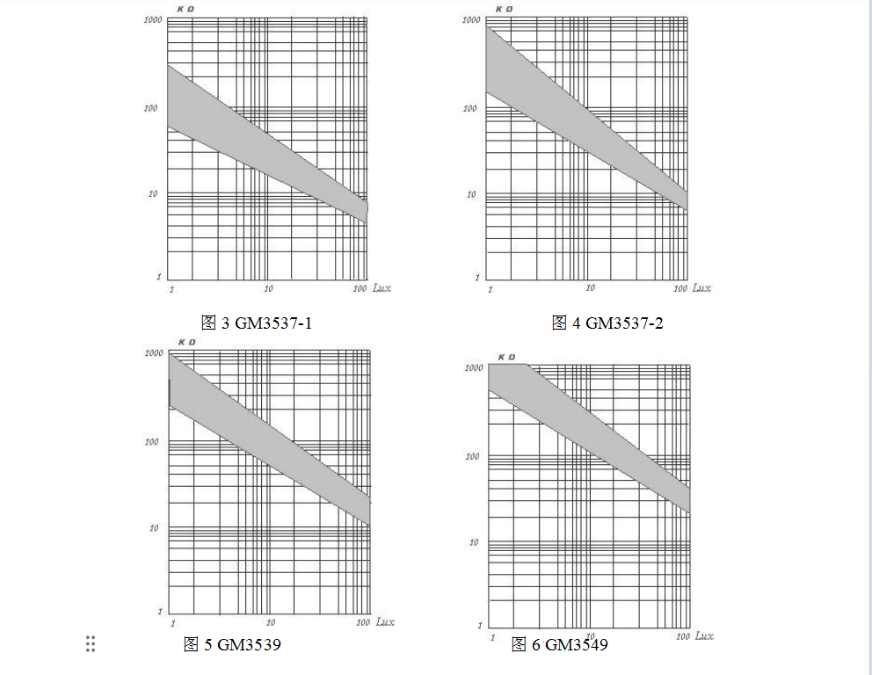

Main characteristic curve
Matters needing attention
1. This product is packed with environmentally friendly materials,
50 pieces of small packaging, 200 pieces of large packaging;
2. Avoid storing the product in humid and high temperature
environment;
3. It should be stored in a non-erosive gas, otherwise it will lead
to oxidation of the tin layer and decrease of weldability.
Therefore, after opening the package should be used as soon as
possible
4. Working environment humidity ≦95%
5. Welding time as short as possible; Soak the tin liquid (Sn63
Pb37) at 230℃ to 5mm away from the CdS photoresistor body, and
maintain 3-5s.
6. Note that the lead welding position should be more than 4mm away
from the ceramic base.
Product Description:
Light Dependent Resistor
Light Dependent Resistor (LDR) is a kind of optical resistor which
is used to sense the light intensity by changing the resistance
value. It is usually used in controlling the intensity of light,
automatic light switch, smart homes and other applications. The LDR
we provide is of series 7mm and 3mm, with a max voltage of 250 V,
environment temperature ranging from -30 to +70 °C, and a lead
length of 12mm. The bright resistor value (at 10Lux) is between 5
to 10KΩ.
Features:
- Product Name: Light Dependent Resistor
- Lead Length: 12mm
- Bright resistor(10Lux): (5-10)KΩ
- Max Voltage VDC: 250 V
- Dark resistance: 1MΩ
- Model: GM12516
- 3mm series photoresistor
- 12mm series photoresistor
- 3mm series photoresistor
- GM12516
Technical Parameters:
| Parameter | Value |
|---|
| Response time(ms): | Rise30ms Decline30ms |
| Spectrum peaknm: | 560 |
| Environment temperature℃: | -30~+70°C |
| Max VoltageVDC: | 250 V |
| Dark resistance: | 1MΩ |
| Model: | GM12516 |
| Lead Length: | 12mm |
| Product Name: | Light Dependent Resistor |
| Bright resistor(10Lux): | (5-10)KΩ |
| Power consumptionmw: | 200 |
| 3mm series photoresistor: | Yes |
| 7mm series photoresistor: | Yes |
