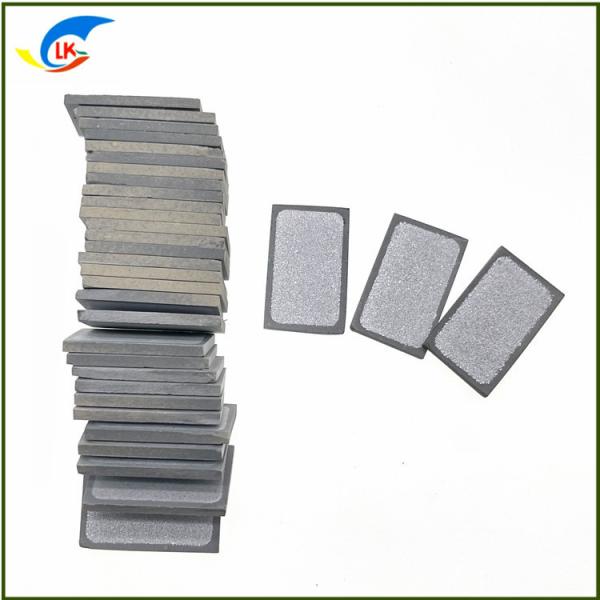

MZ4Y5241520 250℃ 5V 4-7Ω Surface Mount PTC Thermistor Silver
Electrode Heating Element
PTC thermal ceramic heating piece PTC
thermistor for heating.pdf
The characteristics of PTC ceramic heating pads are mainly
reflected in its three main aspects: resistance-temperature
characteristics, volt-ampere characteristics, and current-time
characteristics. Among them, resistance-temperature characteristics
are the most basic characteristics and the most important factor in
determining the performance of PTC materials. special.
working principle:
PTC thermistor ceramic heating piece has special functions of
constant temperature, temperature adjustment and self-temperature
control.
When an AC or DC voltage is applied to a PTC element, below the
Curie point temperature, the resistivity is very low and the
temperature rises quickly. Once the Curie point temperature is
exceeded, the resistivity suddenly increases, causing the current
to drop to a stable value. To achieve the purpose of automatic
temperature control and constant temperature, no additional
temperature control circuit device is needed, and the living
temperature of the PTC element can be adjusted according to
different temperature requirements through formulas to achieve the
required operating temperature in different application scenarios.
External structure:
There are three types of chip PTC heating element structures:
double-sided electrode lead type, single-sided electrode lead type,
and side electrode lead type.
| Type | Features | Advantage | Shortcoming |
| Double-sided electrode lead wire | The electrode surfaces are on the upper and lower large planes of
the PTC ceramic sheet. | Simple structure, low cost, resistance can be made very small | The large upper and lower surfaces require metal contact pieces to
conduct electricity, which is not as reliable as welding. |
| Single sided electrode lead wire | The two electrical contact points are on the same large plane of
the PTC ceramic sheet | Can be welded, the entire heater is small in size and highly
reliable | The cost is more expensive than the double-sided electrode lead,
and it cannot be used to make a heating plate with a small area. |
| Side electrode leads | Two electrical contact points are on the two small sides of the PTC
ceramic piece | Welding on the circuit board or welding wires on the side does not
affect heat transfer | The smaller the resistance, the more difficult it is to make. The
surface temperature of PTC cannot exceed the soldering
temperature.. |
In order to facilitate customer installation, we also provide
products with other structures, such as: PTC heating parts with
insulation layer (and wires), PTC heating pieces with shell (and
wires), used for water heating, hair straighteners, air heating,
etc. For PTC heaters, see this link to the left.
2.Usage examples:
Heaters, air conditioning heating, clothes dryers, mosquito
killers, motorcycle carburetors, car cold start preheating,
electric humidifiers, moisture-proof electrical instruments,
electric hot plates, massagers, thermotherapy instruments, glue
guns, curling hair, Hair straightener heating, hot coffee machine,
milk warmer, boiling water, water heater, steam beauty, etc. When
the product terminal temperature is below 260°C, PTC heating can be
used to maintain a constant temperature without temperature
control. It has a compact structure and long service life, which
has great advantages.
3.Usage precautions:
1) The PTC heating element has the characteristics of automatic
constant temperature and does not require a temperature control
system. Just energize the PTC directly.
2) When the PTC heating element is used to heat a liquid (such as
water), the PTC heating element will not be damaged after the
liquid is dried.
3) If the PTC heating element is used to heat cold air, the PTC
heating element will not be damaged when the air is not supplied.
4) There are four electrodes for customers to choose from:
electroless nickel + silver (can be welded), melt-blown metal
aluminum, printed aluminum + silver, printed silver zinc + silver
(can be welded), printed aluminum.
5) Long service life, if used in normal environment, the service
life can reach more than 10 years. Our company's heating plate life
test is at a high-quality level in China.
6) Reliable operation, using the internal characteristics of PTC to
control temperature, it will never overheat.
7) Changes in operating voltage have relatively little impact on
surface temperature. When the operating voltage increases by 2
times (or decreases by 1/2), the surface temperature increases (or
decreases) by about 8°C.
8) When multiple PTCs are used together, they should be connected
in parallel and not in series.
9) Different heat dissipation conditions make the heating power of
PTC vary greatly. The faster the heat dissipation, the greater the
power.
10) In general, double-sided electrode lead-out type PTC sheets are
used, but for special purposes, single-side electrode lead-out and
side electrode lead-out can also be used.
Parameter selection reference table:
| Shape | Use voltage(V) | Diameter(mm) | Length (mm) | Width (mm) | Thick (mm) | Normal temperature resistance(Ω) | surface temperature℃ |
| Round | 3～6 | 5～15 | | | 0.3～0.5 | 2～10 | 50～100 |
| Round | 12～50 | 5～25 | | | 0.5～1.5 | 2～20 | 50～300 |
| Round | 100～140 | 5～25 | | | 1.4～2.0 | 200～2000 | 50～320 |
| Round | 220～240 | 5～25 | | | 1.8～2.5 | 800～4000 | 50～320 |
| Round | 220～240 | 10～25 | | | 2.0～3.0 | 800～4001 | 250～320 |
| Round | 380～400 | 10～25 | | | 3.0～4.0 | 2000～8000 | 50～280 |
| Extra large round | 3～400 | 40～80 | | | 3.0～4.0 | | 50～280 |
| Square piece | 3～6 | | 1～3 | 1～2 | 0.3～0.5 | 50～150 | 50～100 |
| Square piece | 12～24 | | 2～5 | 1～2 | 0.3～0.5 | 100～300 | 50～150 |
| Square piece | 12～50 | | 5～40 | 3～20 | 1.0～1.5 | 2～20 | 50～300 |
| Square piece | 100～140 | | 5～40 | 3～20 | 1.4～2.0 | 200～2000 | 50～320 |
| Square piece | 220～240 | | 5～40 | 3～20 | 1.8～2.5 | 800～4000 | 50～320 |
| Square piece | 220～240 | | 10～40 | 6～20 | 2.0～3.0 | 800～4000 | 250～320 |
| Square piece | 380～400 | | 10～40 | 6～20 | 3.0～4.0 | 2000～8000 | 50～280 |
| Extra large square piece | 3～400 | | 50～70 | 35～50 | 3.0～4.0 | | 50～280 |
Note:
1) As the thickness of the PTC sheet increases, the withstand
voltage and reliability increase. For products with relatively high
voltage or other products that require relatively high reliability,
thicker PTC should be selected.
2) PTC ceramics are fragile, and a single PTC should not be made
into a large area. When a larger area is required (such as uniform
heating, or increased heating power, etc.), several PTCs can be
combined into a large area (with shell or insulation). and wires),
see our company's products: insulation-wrapped PTC heating sheet
and shell-type PTC heating element.
3) Special shapes, such as ring, hexagon, triangle, rod, ring rod,
etc., can be customized according to customer requirements. Extra
large sizes can be customized.
4) The price of the heating plate varies according to the specific
requirements and dosage of the product
Product Description:
PTC Heater Pills are made from high-quality ceramics, providing a
zero-power resistance range of 1Ω-10000Ω. With a surface
temperature range of (50℃-300℃)±10℃ and a Curie temperature range
of (50℃-310℃)±7℃, the dimension of these PTC Ceramic Heater Pills
are 5mm -45mm. PTC Ceramic Heaters are reliable PTC chip
components, making them suitable for a wide range of applications.
For those who need high-performance heating solutions, PTC Heater
Pills are the perfect choice.
Features:
- Product Name: PTC Heater Pills
- Surface Temperature: (50℃-300℃)±10℃
- Rated Zero-power Resistance: 1Ω-10000Ω
- Curie Temperature: (50℃-310℃)±7℃
- Withstand Voltage(Ub) : 20V-220V/60S
- Material: Ceramics
Technical Parameters:
| Name | PTC Heating Plate |
|---|
| Withstand Voltage(Ub) | 20V-220V/60S |
| Dimension | 5mm -45mm |
| Rated Zero-power Resistance | 1Ω-10000Ω |
| Surface Temperature | (50℃-300℃)±10℃ |
| Material | Ceramics |
| Curie Temperature | (50℃-310℃)±7℃ |
Applications:
The LK-PTC PTC Heating Plate is an efficient and reliable ceramic heater with an excellent
thermal performance, perfect for use in multiple applications. The
PTC Heater Pills are designed to provide reliable, efficient
heating for a variety of needs. This PTC Ceramic Heater comes in a
5mm – 45mm dimension, and has a surface temperature range of
(50℃-300℃)±10℃, as well as a withstand voltage (Ub) of
20V-220V/60S. It is made of high-grade PTC ceramic material that is
perfect for use in PTC start relay chip, PTC heating chip, and
other applications. The PTC Heater Pills is an essential component
in any device that requires reliable, efficient heating.
Customization:
We offer custom-made PTC Heaters Pills with the brand name of
LK-PTC. This PTC Heater Pills is made of high quality ceramics,
having a Curie Temperature of (50℃-310℃)±7℃ and a rated zero-power
resistance of 1Ω-10000Ω. Our PTC Heaters Pills come in different
dimensions from 5mm to 45mm. With our PTC Start Relay Chip, these
PTC Heaters Pills are perfect for a wide range of applications.
Support and Services:
PTC Heater Pills Technical Support and Service
At PTC Heater Pills, we offer comprehensive technical support and
service to ensure that all of our customers have a positive
experience. We have a team of experienced technicians who are
available 24/7 to help with any technical issues you may have.
Whether it's troubleshooting, installation, or general maintenance,
our technicians are here to help.
We also provide phone, email, and chat support to customers who
need assistance with their PTC Heater Pills product. If you need
help with product setup or have a question about using the product,
we are here to help. Simply contact us and one of our technicians
will be happy to assist you.
We also offer a 30-day money-back guarantee on all purchases. If
you are not satisfied with your purchase, simply return it for a
full refund.
Packing and Shipping:
Packaging and Shipping for PTC Heater Pills:
- PTC Heater Pills are packaged in individual sealed bags.
- The PTC Heater Pills are shipped in cardboard boxes.
- The boxes are filled with enough cushioning material to protect the
contents.
- The boxes are labeled with the product name and shipping
information.
