Excellent Stability NTC Thermistor Probe Ohm 100K Ttc 103 104 NTC
Sensor For Electronic Product
NTC temperature sensors are usually composed of 2 or 3 metal
oxides, mixed in a fluid-like clay, and calcined into a dense
sintered ceramic in a high-temperature furnace. Oxygen-bonded
metals tend to donate free electrons. Ceramics are generally
excellent insulators. But only theoretically, this is the case for
thermistor-type ceramics when the temperature approaches absolute
zero. However, as the temperature increases to more common ranges,
thermal excitations eject more and more free electrons. As more
electrons carry current through the ceramic, the effective
resistance decreases. Resistance changes very sensitively with
temperature. A typical change is a decrease of (-)7[%] to 3[%] per
degree Celsius. This is the most sensitive of any sensor suitable
for use over a wide temperature range.
Type | NTC(thermistor) Temperature Sensor |
Temperature range | -50℃ ~ +300℃；Customized |
Accurancy | 1%；5%；10% |
| 1K；2K；2.2k；2.7k；3K；5K；7K；8K；12K；15K；20K；25K；30K；40K；47K；50K；60K；70K；100K；200K；230K；250K；470K；500K；1000K；Customized |
B value | 3274；3435；3470；3928；3950；3977；4100；4200；4400；Customized |
Probe Material | Stainless steel SS304； aluminum；copper；plastic；epoxy；glass |

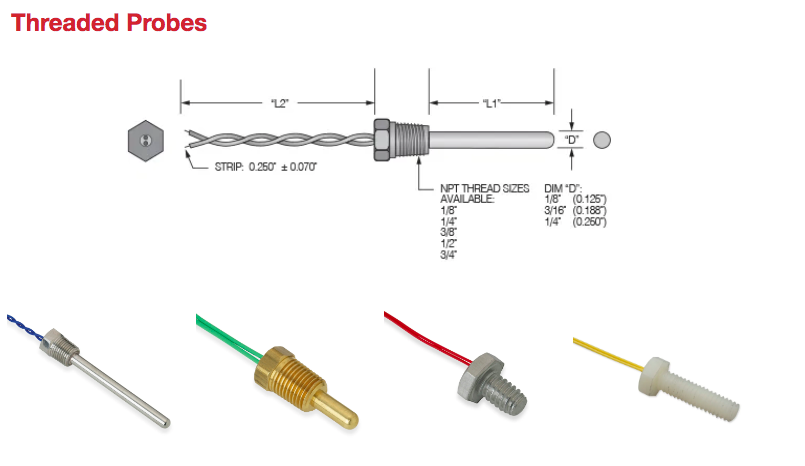

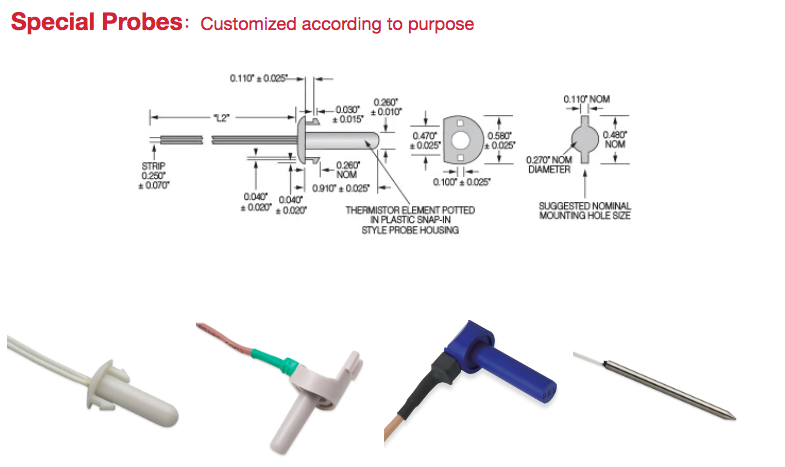

Installation | Flanged；Surface；Threaded；Plastic；Straight；Film；Customized |
Wire Material | Heat shrinkable tube；PVC tube；glass fiber tube； tube |
Connector | Molex；JST；DuPont；CWB；CJT；U type；Customized |
Waterproof | IP67；IP68 |
NTC thermistor temperature sensor characteristics:
1. High precision and high stability
2. Fast response
3. Excellent thermal shock resistance
4. Excellent moisture resistance
5. High-tech batch production ensures high quality and high
stability of products.

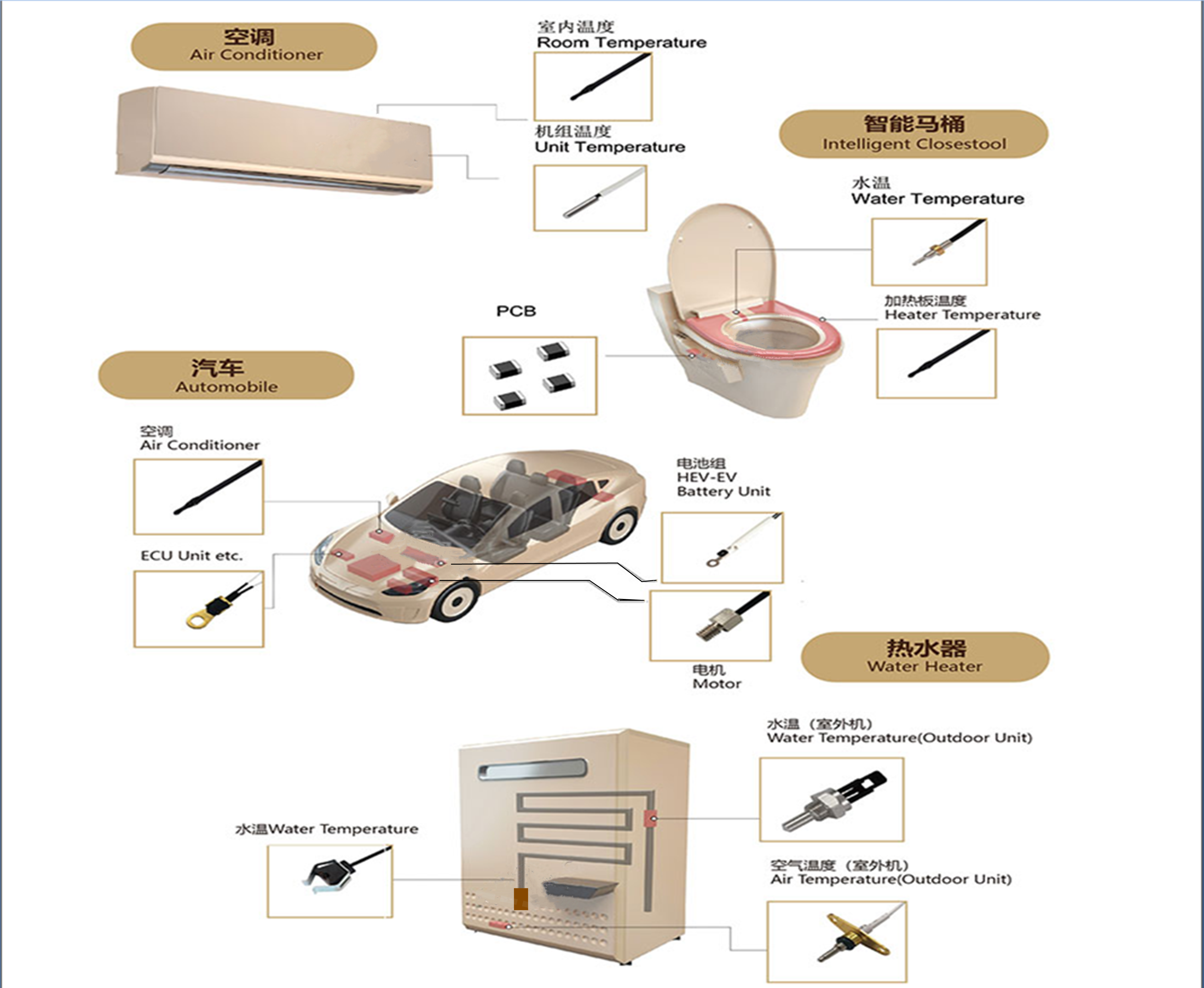

Application
● Air conditioners, refrigerators, freezers, water heaters, water
dispensers, heaters, dishwashers, disinfection cabinets, washing
machines, dryers and other home appliances.
● Automobile air conditioner, water temperature sensor, intake air
temperature sensor, engine
● Switching power supply, UPS uninterruptible power supply,
frequency converter, electric boiler, etc.
● Intelligent toilet, electric blanket, etc.
Working principle of temperature sensor
Using the NTC thermistor under a certain measurement power, the
resistance value drops rapidly as the temperature rises. Utilizing
this feature, the NTC thermistor can be used to determine the
corresponding temperature by measuring its resistance value, so as
to achieve the purpose of detecting and controlling the
temperature.
Conventional product electrical performance parameters
Part No. | R25℃ (KΩ) | B(K) 25/50℃ | Rated Power @25℃(mW) | Dissipation Factor(δ) (mW/℃) | Thermal time Constant (S) |
TS502□3274A | 5.0 | 3274 | 10-20 | 2-4 | 5-20 |
TS502□3435B | 5.0 | 3435 | 10-20 | 2-4 | 5-20 |
TS502□3470A | 5.0 | 3470 | 10-20 | 2-4 | 5-20 |
TS502□3950A | 5.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS103□3274A | 10.0 | 3274 | 10-20 | 2-4 | 5-20 |
TS103□3435B | 10.0 | 3435 | 10-20 | 2-4 | 5-20 |
TS103□3470A | 10.0 | 3470 | 10-20 | 2-4 | 5-20 |
TS103□3950A | 10.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS103□4100A | 10.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS153□3950A | 15.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS153□4100A | 15.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS203□3950A | 20.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS203□4100A | 20.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS223□4200A | 22.0 | 4200 | 10-20 | 2-4 | 5-20 |
TS403□3928A | 40.0 | 3928 | 10-20 | 2-4 | 5-20 |
TS503□3950A | 50.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS503□4100A | 50.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS104□3950A | 100.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS104□4100A | 100.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS104□4400A | 100.0 | 4400 | 10-20 | 2-4 | 5-20 |
