New Energy Special Thermistor MF52A 5K (502) Practical Waterproof
Temperature Sensor, Stable Negative Temperature Coeffi

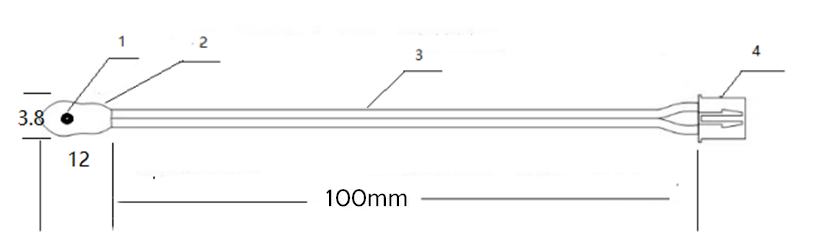

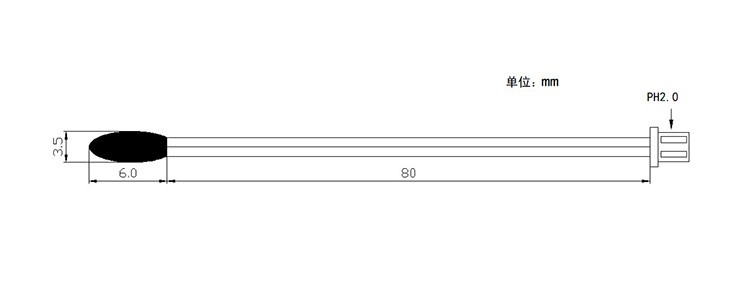

►Different NTC thermistor using in the NTC temperature sensors with
the following different operating temperature:
Chip or MF52A,MF51E,MF55: temperature resist grade 125℃,actual
temperature resist grade 150℃
MF58: temperature resist grade 200℃,actual temperature resist grade
250℃
MF51: temperature resist grade 200℃,actual temperature resist grade
250℃
Special MF51: temperature resist grade 250℃,actual temperature
resist grade 300℃
Weldless chip:temperature resist grade 450℃,actual temperature
resist grade 500℃
►Operating environment
In the environment of high temperature,high humidty and high
corrosion,we suggest to use glass sealed type thermistor as the
core element.And MF51 type will be the best NTC thermistor in high
humidity environment.
►Design considerations and procedure of temperature sensor
1. Choose the shape acoording to customer's design or assemble
requirements, and confirm the thermistor.
2. Confirm the thermistor element and other materials according to
customers' requirement
3. Choose the suitable resistance,B value and tolerance
4. Choose suitable moisture-proof and insulation technology to meet
customer's requirement
5. Choose suitable encapsulation structure to meet performance
requirements of mechanical shock resistance
6. Meet customer's special requirements.
Type | NTC(thermistor) Temperature Sensor |
Temperature range | -50℃ ~ +300℃；Customized |
Accurancy | 1%；5%；10% |
| 1K；2K；2.2k；2.7k；3K；5K；7K；8K；12K；15K；20K；25K；30K；40K；47K；50K；60K；70K；100K；200K；230K；250K；470K；500K；1000K；Customized |
B value | 3274；3435；3470；3928；3950；3977；4100；4200；4400；Customized |
Probe Material | Stainless steel SS304； aluminum；copper；plastic；epoxy；glass |
Installation | Flanged；Surface；Threaded；Plastic；Straight；Film；Customized |
Wire Material | Heat shrinkable tube；PVC tube；glass fiber tube； tube |
Connector | Molex；JST；DuPont；CWB；CJT；U type；Customized |
Waterproof | IP67；IP68 |
Main Technology Parameters
| Part number | Rated resistance R25 | B value (25/50) | Dissipattion Coeffient.
| Thermal time constant | Operating temperature |
| Range KOhm | Tolerance % | (K) | Tolerance % | Mw/℃ | sec | ℃ |
| CWF□□□3100 | 0.1~20 | ±1 ±2 ±3 ±5 | 3100 | ±1 | ≥2.2 | ≤70 | -55~+125 |
| CWF□□□3270 | 0.2~20 | 3270 |
| CWF□□□3380 | 0.5~50 | 3380 |
| CWF□□□3470 | 0.5~50 | 3470 |
| CWF□□□3600 | 1~100 | 3600 |
| CWF□□□3950 | 5~100 | 3950 |
| CWF□□□4000 | 5~100 | 4000 |
| CWF□□□4050 | 5~200 | 4050 |
| CWF□□□4150 | 10~250 | 4150 |
| CWF□□□4300 | 20~1000 | 4300 |
| CWF□□□4500 | 20~1000 | 4500 |
NCT temperature sensor application range
◆Heating and heating air conditioners and related equipment
◆Household appliances of various sizes: air conditioners,
refrigerators, battery stoves, bread ovens, baking ovens, electric
ovens, microwave ovens, electric fans, soybean milk machines,
electric water heaters, electric rice cookers, disinfection
cabinets, water dispensers, heaters, electric irons, disinfection
Cabinets, drinking fountains, lighting appliances, etc.
◆Temperature measurement and control circuits for agricultural,
medical, environmental protection, meteorological, food processing
and other equipment
◆Instrument coils, automotive circuits, integrated circuit modules,
transistor amplifier circuits, temperature compensation circuits
such as quartz crystal oscillators and thermocouples
Working principle of temperature sensor
Using the NTC thermistor under a certain measurement power, the
resistance value drops rapidly as the temperature rises. Utilizing
this feature, the NTC thermistor can be used to determine the
corresponding temperature by measuring its resistance value, so as
to achieve the purpose of detecting and controlling the
temperature.
Conventional product electrical performance parameters
Part No. | R25℃ (KΩ) | B(K) 25/50℃ | Rated Power @25℃(mW) | Dissipation Factor(δ) (mW/℃) | Thermal time Constant (S) |
TS502□3274A | 5.0 | 3274 | 10-20 | 2-4 | 5-20 |
TS502□3435B | 5.0 | 3435 | 10-20 | 2-4 | 5-20 |
TS502□3470A | 5.0 | 3470 | 10-20 | 2-4 | 5-20 |
TS502□3950A | 5.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS103□3274A | 10.0 | 3274 | 10-20 | 2-4 | 5-20 |
TS103□3435B | 10.0 | 3435 | 10-20 | 2-4 | 5-20 |
TS103□3470A | 10.0 | 3470 | 10-20 | 2-4 | 5-20 |
TS103□3950A | 10.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS103□4100A | 10.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS153□3950A | 15.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS153□4100A | 15.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS203□3950A | 20.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS203□4100A | 20.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS223□4200A | 22.0 | 4200 | 10-20 | 2-4 | 5-20 |
TS403□3928A | 40.0 | 3928 | 10-20 | 2-4 | 5-20 |
TS503□3950A | 50.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS503□4100A | 50.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS104□3950A | 100.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS104□4100A | 100.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS104□4400A | 100.0 | 4400 | 10-20 | 2-4 | 5-20 |
Application
