Radiator Temperature Protection Ntc Thermistor Sensor 100K3950 Flat
Shell Temperature Probe

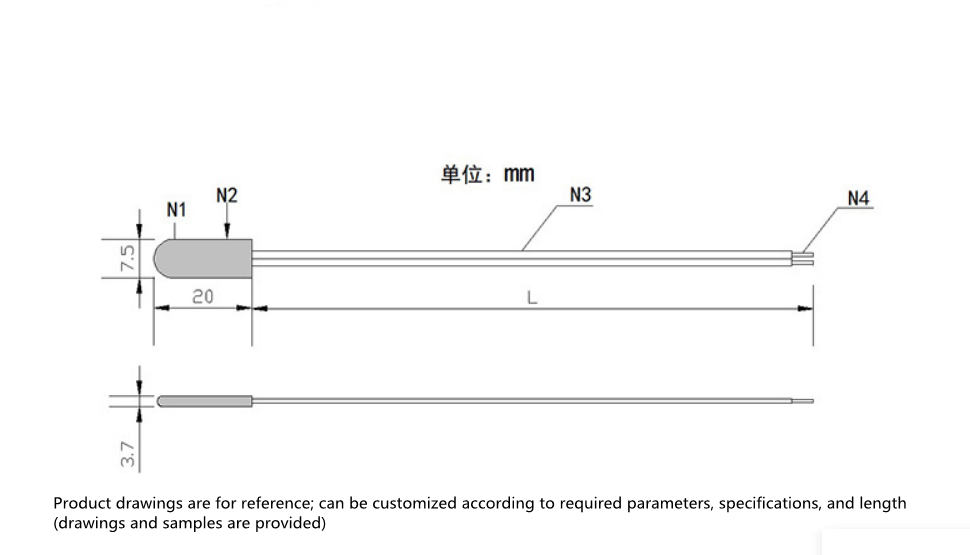

product information
Product type: Flat probe NTC temperature sensor
Product features: Easy to hide, low profile
Model usage: temperature measurement/temperature control/overheat
protection
Operating temperature range: -40~+150℃
Thermal time constant: about 10S
Water resistance: AC1800V*60S
Waterproof level: IP66
Product qualifications: Meet certification requirements
Product application scope
Cooling fans, equipment batteries, heaters, superheated pipes, etc.
Product customization instructions
(1) Resistance value of the product (nominal resistance value at
25°C, or others)
(2) Product accuracy (1%~5%)
(3) B value coefficient of the product
(4) Wire model and length (color, length, temperature resistance
requirements)
(5) Wire tail specifications (tin dipped, socket plug-in, special
specifications)
(6) Probe specifications and materials (nickel-plated copper, red
copper, stainless steel, ABS plastic shell
)
(7)Use temperature range
Type | NTC(thermistor) Temperature Sensor |
Temperature range | -50℃ ~ +300℃；Customized |
Accurancy | 1%；5%；10% |
| 1K；2K；2.2k；2.7k；3K；5K；7K；8K；12K；15K；20K；25K；30K；40K；47K；50K；60K；70K；100K；200K；230K；250K；470K；500K；1000K；Customized |
B value | 3274；3435；3470；3928；3950；3977；4100；4200；4400；Customized |
Probe Material | Stainless steel SS304； aluminum；copper；plastic；epoxy；glass |
Installation | Flanged；Surface；Threaded；Plastic；Straight；Film；Customized |
Wire Material | Heat shrinkable tube；PVC tube；glass fiber tube； tube |
Connector | Molex；JST；DuPont；CWB；CJT；U type；Customized |
Waterproof | IP67；IP68 |
Main Technology Parameters
| Part number | Rated resistance R25 | B value (25/50) | Dissipattion Coeffient.
| Thermal time constant | Operating temperature |
| Range KOhm | Tolerance % | (K) | Tolerance % | Mw/℃ | sec | ℃ |
| CWF□□□3100 | 0.1~20 | ±1 ±2 ±3 ±5 | 3100 | ±1 | ≥2.2 | ≤70 | -55~+125 |
| CWF□□□3270 | 0.2~20 | 3270 |
| CWF□□□3380 | 0.5~50 | 3380 |
| CWF□□□3470 | 0.5~50 | 3470 |
| CWF□□□3600 | 1~100 | 3600 |
| CWF□□□3950 | 5~100 | 3950 |
| CWF□□□4000 | 5~100 | 4000 |
| CWF□□□4050 | 5~200 | 4050 |
| CWF□□□4150 | 10~250 | 4150 |
| CWF□□□4300 | 20~1000 | 4300 |
| CWF□□□4500 | 20~1000 | 4500 |
NCT temperature sensor application range
◆Heating and heating air conditioners and related equipment
◆Household appliances of various sizes: air conditioners,
refrigerators, battery stoves, bread ovens, baking ovens, electric
ovens, microwave ovens, electric fans, soybean milk machines,
electric water heaters, electric rice cookers, disinfection
cabinets, water dispensers, heaters, electric irons, disinfection
Cabinets, drinking fountains, lighting appliances, etc.
◆Temperature measurement and control circuits for agricultural,
medical, environmental protection, meteorological, food processing
and other equipment
Working principle of temperature sensor
Using the NTC thermistor under a certain measurement power, the
resistance value drops rapidly as the temperature rises. Utilizing
this feature, the NTC thermistor can be used to determine the
corresponding temperature by measuring its resistance value, so as
to achieve the purpose of detecting and controlling the
temperature.
Conventional product electrical performance parameters
Part No. | R25℃ (KΩ) | B(K) 25/50℃ | Rated Power @25℃(mW) | Dissipation Factor(δ) (mW/℃) | Thermal time Constant (S) |
TS502□3274A | 5.0 | 3274 | 10-20 | 2-4 | 5-20 |
TS502□3435B | 5.0 | 3435 | 10-20 | 2-4 | 5-20 |
TS502□3470A | 5.0 | 3470 | 10-20 | 2-4 | 5-20 |
TS502□3950A | 5.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS103□3274A | 10.0 | 3274 | 10-20 | 2-4 | 5-20 |
TS103□3435B | 10.0 | 3435 | 10-20 | 2-4 | 5-20 |
TS103□3470A | 10.0 | 3470 | 10-20 | 2-4 | 5-20 |
TS103□3950A | 10.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS103□4100A | 10.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS153□3950A | 15.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS153□4100A | 15.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS203□3950A | 20.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS203□4100A | 20.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS223□4200A | 22.0 | 4200 | 10-20 | 2-4 | 5-20 |
TS403□3928A | 40.0 | 3928 | 10-20 | 2-4 | 5-20 |
TS503□3950A | 50.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS503□4100A | 50.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS104□3950A | 100.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS104□4100A | 100.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS104□4400A | 100.0 | 4400 | 10-20 | 2-4 | 5-20 |
