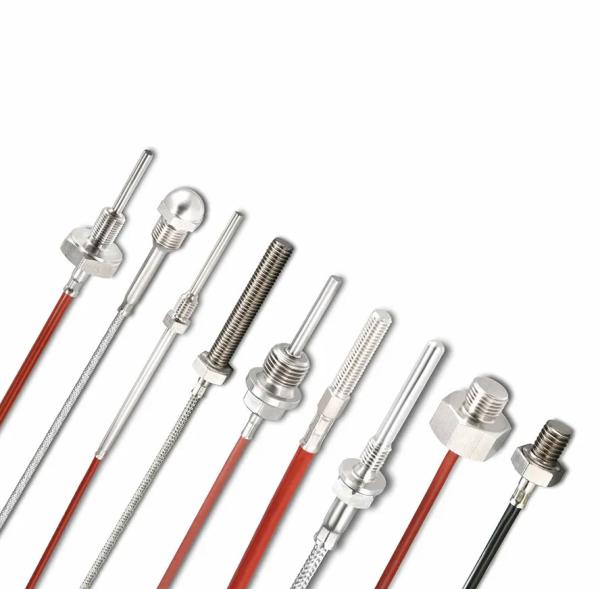

1k 2k 2.7k 3k 5k 10k 15k 20k 30k 40k 47k 50k 100k 200k Ohm 3950
3435 3977 Thermistor Probe Ntc Temperature Sensor
An NTC is a sensor that measures temperature using the resistance
characteristics of a ceramic/metal composite material. NTC
thermistor sensor is a product with negative temperature
coefficient, that is, as the temperature rises, its resistance
value will become smaller.
The NTC thermistor belongs to the contact measurement application,
which directly collects the temperature of the object, then
measures the electrical signal, and then calculates the temperature
value. It can be used as a digital thermometer for human body
temperature measurement, and can also be used in some dialysis
equipment, patient monitoring, etc. in the medical field, and can
also be used in household appliances such as clothes dryers, ovens,
and coffee machines.
Type | NTC(thermistor) Temperature Sensor |
Temperature range | -50℃ ~ +300℃；Customized |
Accurancy | 1%；5%；10% |
| 1K；2K；2.2k；2.7k；3K；5K；7K；8K；12K；15K；20K；25K；30K；40K；47K；50K；60K；70K；100K；200K；230K；250K；470K；500K；1000K；Customized |
B value | 3274；3435；3470；3928；3950；3977；4100；4200；4400；Customized |
Probe Material | Stainless steel SS304； aluminum；copper；plastic；epoxy；glass |
Installation | Flanged；Surface；Threaded；Plastic；Straight；Film；Customized |
Wire Material | Heat shrinkable tube；PVC tube；glass fiber tube； tube |
Connector | Molex；JST；DuPont；CWB；CJT；U type；Customized |
Waterproof | IP67；IP68 |
Features
Proven Stability and Reliability,
Cost effective solutions
Variety of metal and plastic housings and tubings designed for
specific applications
Potted with different kinds of resin for good sensor protection
Available with special kinds of cables (2-core cables or stranded
with PVC, Silicone, or Kynar insulation,cables with screen &
other), connectors and other attachments
Provides good protection from the environment conditions
Proven high voltage strength and dynamic strength
Wide range of Resistance/Temperature, characteristics
Designed for temperature measurement, control and compensation
Material, type and size:
Thermistors are bulk semiconductor devices and as such can be
manufactured in a variety of forms. More common ones include discs,
beads and rods. Sizes do vary from 1mm beads to discs a few
centimeters in diameter and thickness.
There are different types of thermistors, most of which respond
differently to changes in temperature. Thermistors are not linear
and their response curves vary from type to type. Some thermistors
have a nearly linear temperature-resistance relationship, others
have a sharp change in slope (sensitivity) at a specific
characteristic temperature.
Application
● Air conditioners, refrigerators, freezers, water heaters, water
dispensers, heaters, dishwashers, disinfection cabinets, washing
machines, dryers and other home appliances.
● Automobile air conditioner, water temperature sensor, intake air
temperature sensor, engine
● Switching power supply, UPS uninterruptible power supply,
frequency converter, electric boiler, etc.
● Intelligent toilet, electric blanket, etc.
Working principle of temperature sensor
Using the NTC thermistor under a certain measurement power, the
resistance value drops rapidly as the temperature rises. Utilizing
this feature, the NTC thermistor can be used to determine the
corresponding temperature by measuring its resistance value, so as
to achieve the purpose of detecting and controlling the
temperature.
Conventional product electrical performance parameters
Part No. | R25℃ (KΩ) | B(K) 25/50℃ | Rated Power @25℃(mW) | Dissipation Factor(δ) (mW/℃) | Thermal time Constant (S) |
TS502□3274A | 5.0 | 3274 | 10-20 | 2-4 | 5-20 |
TS502□3435B | 5.0 | 3435 | 10-20 | 2-4 | 5-20 |
TS502□3470A | 5.0 | 3470 | 10-20 | 2-4 | 5-20 |
TS502□3950A | 5.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS103□3274A | 10.0 | 3274 | 10-20 | 2-4 | 5-20 |
TS103□3435B | 10.0 | 3435 | 10-20 | 2-4 | 5-20 |
TS103□3470A | 10.0 | 3470 | 10-20 | 2-4 | 5-20 |
TS103□3950A | 10.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS103□4100A | 10.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS153□3950A | 15.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS153□4100A | 15.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS203□3950A | 20.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS203□4100A | 20.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS223□4200A | 22.0 | 4200 | 10-20 | 2-4 | 5-20 |
TS403□3928A | 40.0 | 3928 | 10-20 | 2-4 | 5-20 |
TS503□3950A | 50.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS503□4100A | 50.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS104□3950A | 100.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS104□4100A | 100.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS104□4400A | 100.0 | 4400 | 10-20 | 2-4 | 5-20 |
