High Precision Vehicle Temperature Sensor High Sensitivity And
Rapid Response
NTC temperature sensor is a kind of thermistor and probe. Its
principle is: the resistance value drops rapidly as the temperature
rises. It usually consists of 2 or 3 metal oxides, mixed in a
fluid-like clay, and calcined in a high-temperature furnace to form
a dense sintered ceramic. Actual size is very flexible, they can be
as small as 0.010 inches or very small diameter. There is almost no
limit to the maximum size, but usually under half an inch applies.
Type | NTC(thermistor) Temperature Sensor |
Temperature range | -50℃ ~ +300℃；Customized |
Accurancy | 1%；5%；10% |
| 1K；2K；2.2k；2.7k；3K；5K；7K；8K；12K；15K；20K；25K；30K；40K；47K；50K；60K；70K；100K；200K；230K；250K；470K；500K；1000K；Customized |
B value | 3274；3435；3470；3928；3950；3977；4100；4200；4400；Customized |

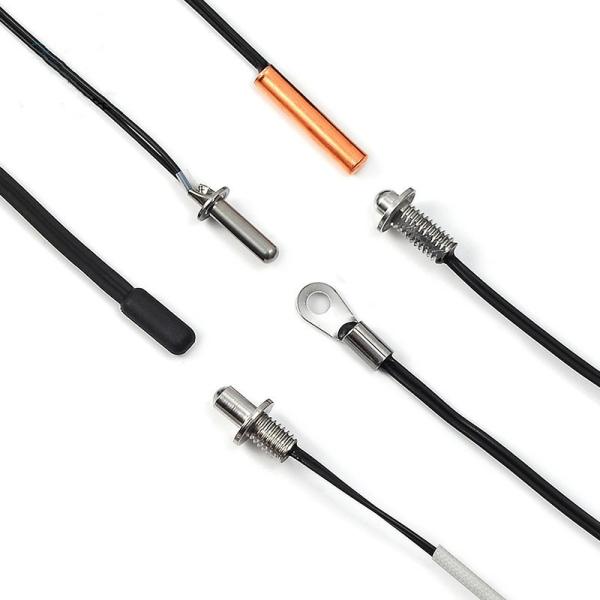

Probe Material | Stainless steel SS304； aluminum；copper；plastic；epoxy；glass |
Installation | Flanged；Surface；Threaded；Plastic；Straight；Film；Customized |
Wire Material | Heat shrinkable tube；PVC tube；glass fiber tube； tube |
Connector | Molex；JST；DuPont；CWB；CJT；U type；Customized |
Waterproof | IP67；IP68 |
NCT temperature sensor application range
◆Heating and heating air conditioners and related equipment
◆Household appliances of various sizes: air conditioners,
refrigerators, battery stoves, bread ovens, baking ovens, electric
ovens, microwave ovens, electric fans, soybean milk machines,
electric water heaters, electric rice cookers, disinfection
cabinets, water dispensers, heaters, electric irons, disinfection
Cabinets, drinking fountains, lighting appliances, etc.
◆Temperature measurement and control circuits for agricultural,
medical, environmental protection, meteorological, food processing
and other equipment
◆Instrument coils, automotive circuits, integrated circuit modules,
transistor amplifier circuits, temperature compensation circuits
such as quartz crystal oscillators and thermocouples
Working principle of temperature sensor
Using the NTC thermistor under a certain measurement power, the
resistance value drops rapidly as the temperature rises. Utilizing
this feature, the NTC thermistor can be used to determine the
corresponding temperature by measuring its resistance value, so as
to achieve the purpose of detecting and controlling the
temperature.
Conventional product electrical performance parameters
Part No. | R25℃ (KΩ) | B(K) 25/50℃ | Rated Power @25℃(mW) | Dissipation Factor(δ) (mW/℃) | Thermal time Constant (S) |
TS502□3274A | 5.0 | 3274 | 10-20 | 2-4 | 5-20 |
TS502□3435B | 5.0 | 3435 | 10-20 | 2-4 | 5-20 |
TS502□3470A | 5.0 | 3470 | 10-20 | 2-4 | 5-20 |
TS502□3950A | 5.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS103□3274A | 10.0 | 3274 | 10-20 | 2-4 | 5-20 |
TS103□3435B | 10.0 | 3435 | 10-20 | 2-4 | 5-20 |
TS103□3470A | 10.0 | 3470 | 10-20 | 2-4 | 5-20 |
TS103□3950A | 10.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS103□4100A | 10.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS153□3950A | 15.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS153□4100A | 15.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS203□3950A | 20.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS203□4100A | 20.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS223□4200A | 22.0 | 4200 | 10-20 | 2-4 | 5-20 |
TS403□3928A | 40.0 | 3928 | 10-20 | 2-4 | 5-20 |
TS503□3950A | 50.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS503□4100A | 50.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS104□3950A | 100.0 | 3950 | 10-20 | 2-4 | 5-20 |
TS104□4100A | 100.0 | 4100 | 10-20 | 2-4 | 5-20 |
TS104□4400A | 100.0 | 4400 | 10-20 | 2-4 | 5-20 |
