ABS plastic probe fish tank aquarium temperature sensor 10K 3435 NTC thermistor 1 meter with terminal

Dongguan Linkun Electronic Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap ABS plastic probe fish tank aquarium temperature sensor 10K 3435 NTC thermistor 1 meter with terminal from wholesalers

    Buy cheap ABS plastic probe fish tank aquarium temperature sensor 10K 3435 NTC thermistor 1 meter with terminal from wholesalers
    • Buy cheap ABS plastic probe fish tank aquarium temperature sensor 10K 3435 NTC thermistor 1 meter with terminal from wholesalers
    • Buy cheap ABS plastic probe fish tank aquarium temperature sensor 10K 3435 NTC thermistor 1 meter with terminal from wholesalers
    • Buy cheap ABS plastic probe fish tank aquarium temperature sensor 10K 3435 NTC thermistor 1 meter with terminal from wholesalers
    • Buy cheap ABS plastic probe fish tank aquarium temperature sensor 10K 3435 NTC thermistor 1 meter with terminal from wholesalers

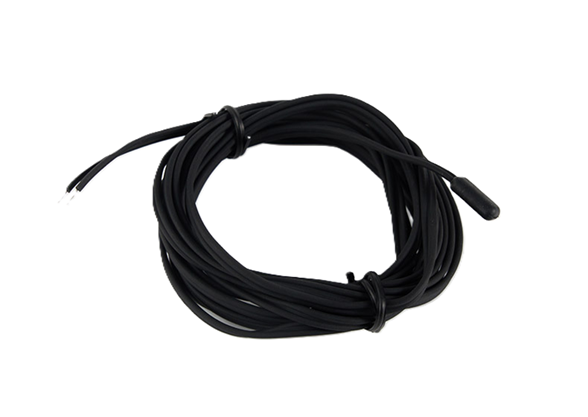

    ABS plastic probe fish tank aquarium temperature sensor 10K 3435 NTC thermistor 1 meter with terminal

    Ask Lasest Price
    Brand Name : linkun
    Model Number : Vehicle Temperature Sensor
    Certification : CE / ROHS / UL / TUV / SGS
    Price : US $0.2 ~ 0.6 PCS
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100,000 pieces/month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    ABS plastic probe fish tank aquarium temperature sensor 10K 3435 NTC thermistor 1 meter with terminal

    ABS plastic probe fish tank aquarium temperature sensor 10K 3435 NTC thermistor 1 meter with terminal

    Product information
    Product type: TPE- -body injection molded NTC temperature sensor
    Product features:
    Model application:
    Usage temperature range: -40^ +150°C
    Thermal time constant: about 8S
    Water resistance: AC1800V*60S
    Waterproof level: IP67
    Product qualification: Meet certification requirements
    Product application range:
    Temperature control instrument, swimming pool, thermostat, aquaculture monitoring, etc.
    Product customization instructions:
    (1) Product resistance (nominal resistance at 25°C, or other)
    (2) Product accuracy (1% ? 5%)
    (3) Product B value coefficient
    (4) Wire model and length (color, length, temperature resistance requirements)
    (5) Wire tail specifications (tinning, socket plug-in, special specifications)
    (6) Probe specifications and materials (nickel-plated copper, copper, stainless steel, ABS rubber shell)
    (7) Usage temperature range

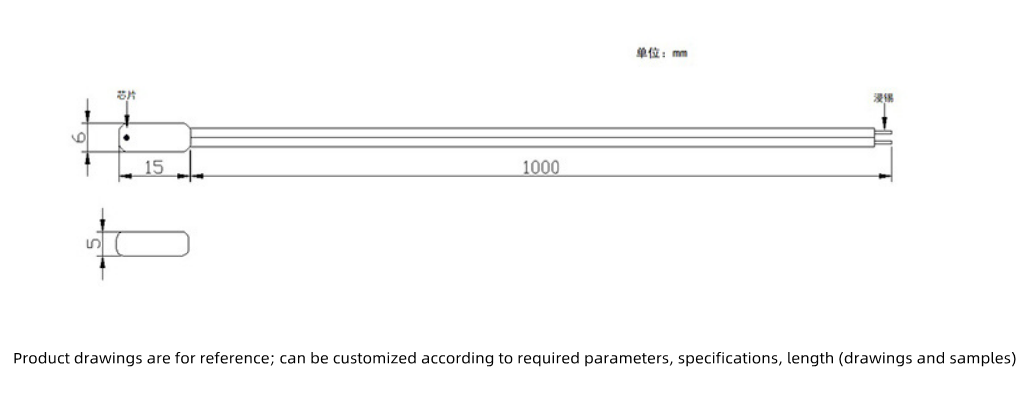

    Injection molded temperature sensor

    product name


    Injection molded temperature sensor


    Product resistance


    Customized specifications model 50K 100K 200K 231K


    Product length


    Default 2 meters can be customized to 1/2/3/5/10/15/20/50 meters, 100 meters, etc.


    Application scope


    Aquarium, fish box, swimming pool, etc.




    NOMaterial NameMaterial and Specifications
    2-1.ElementR25=10KΩ±1% B25/85=3435K±1%
    2-2.Coating(TPE) Thermoplastic Elastomer (Black)
    2-3Cable featuresAWG24 TPE Jacket (Black)
    2-4.Wire endsTinned
    2-5NoteProtection Level: IP68


    NOItemSignTest ConditionsMin.Nor.Max.Unit
    4-1.Resistance at 25℃R25Ta=25±0.05℃
    PT≦0.1mw
    9.910.010.1
    4-2.B ValueB25/853400.734353469.4k
    4-3.Dissipation factorσIn still airAbout 2mW/℃
    4-4.Time responseτIn flowing waterAbout 15sec
    4-5.Withstanding Voltage/1800VAC 2SecNo breakdownSec
    4-6.Insulation Resistance500VDC≧100
    4-7.Operating temp. range//-50/+120

    Temperature sensor application scenarios




    VIII Ampfort Workshop Of The TPE NTC Thermistor Temperature Sensors 5x20mm
