    MZ6 60℃~180℃ 32V Single Two Three Cores 520mm Motor-Specific PTC Thermistor Temperature Sensor For Thermistors

    Ask Lasest Price
    Brand Name : linkun
    Model Number : MZ6 60℃~180℃
    Certification : CE / ROHS / UL / TUV / SGS
    Price : Negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 24 million per year
    Delivery Time : Negotiation
    • Product Details
    • Company Profile

    MZ6 60℃~180℃ 32V Single Two Three Cores 520mm Motor-Specific PTC Thermistor Temperature Sensor For Thermistors

    MZ6 60℃~180℃ 32V Single Two Three Cores 520mm Motor-Specific PTC Thermistor Temperature Sensor For Thermistors​

    The PTC thermistor sensor is installed in thermal contact with the equipment to be protected and connected to the bridge arm of the comparator circuit. At normal temperature, the PTC thermistor (Rp) is lower than Rs, so the output voltage VO of the comparator will be low. If the device gets too hot, the PTC thermistor sensor will rapidly heat up to its trigger or nominal reference temperature, Tn, at which point its resistance will increase to a value well above Rs, causing VO to switch high enough to activate the alarm , a relay or power supply shuts down the circuit.

    Application

    ◆ Limit temperature monitoring

    ◆ Electrically actuated motors

    ◆ Mechanical engineering

    ◆ Heavy-duty Motors


    Features

    ◆ Very small size for a fast response

    ◆ Coding of the temperature through wire colours

    ​PTC Thermistors Limit Temperature Sensor Dimension



    Ordering CodeSensing
    Temperature
    Tsense
    (Centigrade)
    Resistance @25C
    R25
    (Ohm)
    Resistance
    @Tsense
    -15C
    Rsense-15
    (Ohm)
    Resistance
    @Sensing
    Temperature
    Rsense
    (Ohm)
    Max.
    Current
    Imax
    (mA)
    Max.
    Voltage
    Vmax
    (V)
    Previous
    AMWEI
    Code
    PTC-60C471R-25C101R60C100 Ohm max330 Ohm max470 Ohm min100mA30VMZ6-101RT60
    PTC-70C471R-25C101R70C100 ohm max330 ohm max470 ohm min100mA30VMZ6-101RT70
    PTC-80C471R-25C101R80C100 ohm max330 ohm max470 ohm min100mA30VMZ6-101RT80
    PTC-90C471R-25C101R90C100 ohm max330 ohm max470 ohm min100mA30VMZ6-101RT90
    PTC-100C471R-25C101R100C100 ohm max330 ohm max470 ohm min100mA30VMZ6-101RT100
    PTC-110C471R-25C101R110C100 ohm max330 ohm max470 ohm min100mA30VMZ6-101RT110
    PTC-120C471R-25C101R120C100 ohm max330 ohm max470 ohm min100mA30VMZ6-101RT120
    PTC-130C471R-25C101R130C100 ohm max330 ohm max470 ohm min100mA30VMZ6-101RT130
    PTC-60C222R-25C331R60C330 ohm max1.5k ohm max2.2k ohm min100mA30VMZ6-331RT60
    PTC-70C222R-25C331R70C330 ohm max1.5k ohm max2.2k ohm min100mA30VMZ6-331RT70
    PTC-80C222R-25C331R80C330 ohm max1.5k ohm max2.2k ohm min100mA30VMZ6-331RT80
    PTC-90C222R-25C331R90C330 ohm max1.5k ohm max2.2k ohm min100mA30VMZ6-331RT90
    PTC-100C222R-25C331R100C330 ohm max1.5k ohm max2.2k ohm min100mA30VMZ6-331RT100
    PTC-110C222R-25C331R110C330 ohm max1.5k ohm max2.2k ohm min100mA30VMZ6-331RT110
    PTC-120C222R-25C331R120C330 ohm max1.5k ohm max2.2k ohm min100mA30VMZ6-331RT120
    PTC-130C222R-25C331R130C330 ohm max1.5k ohm max2.2k ohm min100mA30VMZ6-331RT130

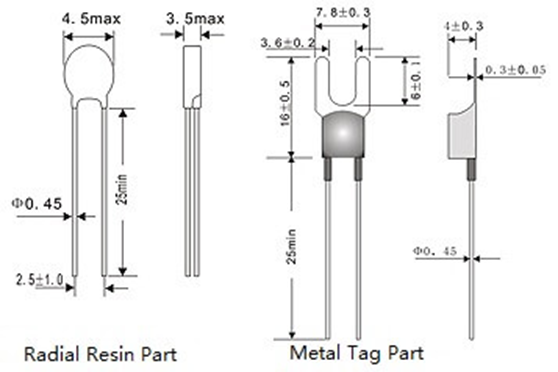

    Structures and Dimensions






    Electrical Specifications

    ItemSingle PTCDouble PTCTriple PTC
    Max. operating voltageVmax32V32V32V
    Rated response Temp.TR60℃~180℃60℃~180℃60℃~180℃
    Tolerance of TR ±5℃±5℃±5℃
    Reprodcibility of TR△TR±0.5℃±0.5℃±0.5℃
    Resistance at 25℃R25≤100Ω≤200Ω≤300Ω
    Resistance at TR-5℃RTR-5≤550Ω≤1100Ω≤1650Ω
    Resistance at TR+5℃RTR+5≥1330Ω≥2660Ω≥3990Ω
    Resistance at TR+15℃RTR+15≥4kΩ≥8kΩ≥12kΩ
    Thermal response timets≤5s≤5s≤5s
    Insulation test voltage 2.5kV2.5kV2.5kV
    Max. operating Temp. 200℃200℃200℃
    Storage Temp. -25~160℃-25~160℃-25~160℃
