MF52 100K 1% 3950 NTC Thermistor Temperature Detection Type
Thermistor For Thermometer And Thermostat
Main technical parameters of temperature-measuring thermoelectric
resistance
| specifications and models | MF52A1 104F3950 |
| Product standard | Q/320115SHD03-2008 |

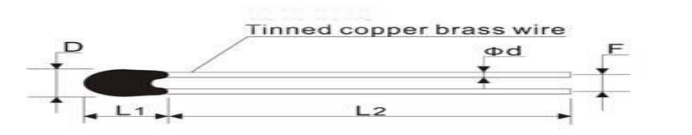

1. Overall dimensions
| Dmax | L1max | L2 ± 3 | F d ± 0.05 | F ± 0.5 |
| 2.6 | 4.5 | 30 | 0.35 | 2.0 |
2. Materials
| Encapsulating material | colour | Lead material |
| modified resin | black | Tinned steel wire |
3. Model description
| MF52 | A1 | 104 | F | 3950 |
| Bead temperature measuring NTC thermistor |
Lead tinned steel wire | Resistance value | Resistance tolerance | B value (25/50) |
| 100 K | Ω | ±1% | 3950K |
4. Electrical performance
| project | symbol | test condition | unit | performance requirement |
4.1 | Zero power resistance at 25℃ |
R25 | Ta=25±0.05℃ Test power ≤0.1mW in flowing liquid. |
KΩ |
100±1% |
4.2 |
B value |
25/50 | B=[(T a ´Tb )∕(Tb -T a )]× ln( Ra ∕ Rb ) Tb = 50 ℃±0.1℃ |
K |
3950±1% |
| 4.3 | dissipation factor | d | In still air | mW∕℃ | ≥2 |
| 4.4 | characteristic time | t | In still air | sec | ≤7 |
| 4.5 | insulance | ∕ | 100V∕DC1min | MΩ | ≥100 |
| 4.6 | operating temperature range | ∕ | ∕ | ℃ | -40~120 |
| 4.7 | Resistance-temperature characteristic | ∕ | ∕ | ∕ | |
| 4.8 | Resistance error | ∕ | ∕ | ∕ | |
5. Reliability performance test
| project | Test conditions and methods | technical requirement |
5.1 |
soldering resistance | Immerse the lead in the tin solution at 235+/-5℃, with the tin
surface 6mm away from the lower end of the body for 2-3 seconds. | The solder is evenly and smoothly coated on the surface of the
immersed part of the lead, and the area is over 95%. |
5.2 |
Welding heat resistance | Immerse the lead in tin liquid at 265℃ 5, with the liquid level 6mm
away from the resistor, and the time is 5 1 second. | No visible damage, R25 D R∕R≤±2% |
5.3 |
Lead-out strength |
Tension: 5N, time: 10s- | No visible damage, R25 D R∕R≤±2% |
5.4 |
Rapid temperature change | 55℃30min→25℃min→125℃30min→ 25℃min, repeated 5 times, and recovered for 4 hours. | No visible damage, R25 D R∕R≤±2% |
5.5 |
high-temperature |
Temperature: 125℃, time: 16 hours. | No visible damage, R25 D R∕R≤±2% |
5.6 |
cold |
Temperature: -55℃, time: 2 hours. | No visible damage, R25 D R∕R≤±2% |
5.7 |
low pressure |
Air pressure: 40 0.1kpa for 4 hours. | No visible damage, R25 D R∕R≤±2% |
5.8 |
Steady state warming |
Temperature: 40℃, humidity: 93%, time: 500 12 hours. | No visible damage, R25 D R∕R≤±2%, Withstand voltage ≥700V∕AC1min insulation resistance ≥ 100 kω. |
5.9 |
Alternating damp heat |
Temperature: 25~40℃, humidity: 90%, time: 24 hours. | No visible damage, R25 D R∕R≤±2%, Withstand voltage ≥700V∕AC1min insulation resistance ≥ 100 kω. |
5.10 | Endurance of zero power consumption at upper limit temperature Persistence | Temperature: 125℃ 2℃ Time: 1000 24 hours. | No visible damage, R25 D R∕R≤±2% |
5.11 |
vibrate | Frequency range: 10~500HZ, amplitude: 0.75mm or 98m∕S 2 time 2 hours, | No visible damage, R25 D R∕R≤±2% |
5.12 |
collide | Acceleration: 250m ∕ S 2, pulse duration: 6Ms, 4000 collisions. | No visible damage, R25 D R∕R≤±2% |
6, welding conditions
When welding, the welding place should be 6mm away from the root of
the resistor, the welding temperature should be lower than 350℃,
and the welding time should be as short as possible.
7. Storage conditions
7.1 Storage temperature:-10℃ ~ 40℃;
7.2 Storage humidity: ≤75%RH;
7.3 Avoid storage in an environment with corrosive gas and light;
7.4 After the package is opened, it needs to be re-sealed and
preserved;
Product Description:
NTC Type Thermistor
The NTC type thermistor is a precision temperature sensing device
with a MF58 glass sealed thermistor, MF5 single-ended glass sealed
thermistor, and MF5 single-ended glass sealed thermistor. This
thermistor can operate in temperatures ranging from -55°C to +125°C
with a tolerance of +/-1%. It has a response time ranging from 1s
to 10s and offers an insulation resistance of greater than 100MΩ.
This thermistor is ideal for applications requiring accurate
temperature measurement and control.
Features:
- Product Name: NTC Type Thermistor
- Accuracy: ±1%
- Insulation Resistance: >100MΩ
- B-Value 25/50: 3950±1%
- Response Time: 1s To 10s
- MF58 glass sealed thermistor
- MF5 single-ended glass sealed thermistor
- MF52 temperature measuring thermistor
Technical Parameters:
| Product Name | Technical Parameters |
|---|
| NTC Type Thermistor | Tolerance: +/-1%
B-Value 25/50: 3950±1%
Size: 2mm To 3mm
Thermal time constant: ≤7
Accuracy: ±1%
Resistance Range: 1Ω To 100KΩ
Response Time: 1s To 10s
Insulation Resistance: >100MΩ
MF55 film thermistor
MF55 film thermistor
MF52 temperature measuring thermistor
MF52 temperature measuring thermistor |
Applications:
MF58/MF52/MF11 NTC Type Thermistor
Brand Name: lin kun
Model Number: MF52 10K 1% 3950
Place of Origin: China Dong Guan
Certification: ROHS,UL
Minimum Order Quantity: 5000 PCS
Price: 0.045 USD/ PCS
Packaging Details: Bulk,500pcs per polybag
Delivery Time: 7 workdays
Payment Terms: T/T
Supply Ability: 20,000,000PCS per week
Size: 2mm To 3mm
Insulation Resistance: >100MΩ
Thermal time constant: ≤7
Operating Temperature: -55°C To +125°C
Lin Kun MF58 glass sealed thermistor, MF52 temperature measuring
thermistor, and MF11 temperature compensated thermistor are
high-precision NTC type thermistors, designed for temperature
sensing and control applications. This thermistor is sealed in a
glass encapsulation to prevent any moisture or dust from entering
the thermistor. The MF58, MF52, and MF11 thermistors are highly
reliable and accurate, and they are rated for use in low
temperature environments.
The MF58, MF52, and MF11 thermistors are available in a wide range
of resistance values, from 10K to 1MΩ, and they are available in
1%, 2%, and 5% tolerance. The operating temperature ranges from
-55°C to +125°C, and the insulation resistance is rated at
>100MΩ. The thermal time constant is ≤7 seconds, and the size is
2mm to 3mm.
These thermistors are certified to the ROHS and UL standards, and
the minimum order quantity is 5000 PCS. The Lin Kun MF58/MF52/MF11
NTC type thermistors are available at 0.045 USD/ PCS, and they are
delivered in 7 workdays. Lin Kun has a supply ability of
20,000,000PCS per week.
