Product Description:
We are proud to introduce our SMD NTC thermistor, which is widely
used in the market. This thermistor is manufactured in a variety of
sizes from 0402 to 1206. It has an accuracy of ±1% to ±5%, with a
permissible operating current of 0.31mA at 25℃. Additionally, it
features an operating temperature range of -40℃ to +125℃ and a
thermal time constant of less than 5S. Our SMD NTC thermistor is
available for wholesale sales from our production plant, and it is
suitable for a variety of negative temperature applications. We are
confident that our thermistor can meet your requirements and
provide the reliable performance you need.
Technical Parameters:
| Parameter | SMD NTC Thermistor 0402 (1005) | SMD NTC Thermistor 0805 (2012) | Chip package thermistor 0603 (1608) | Chip package thermistor 0805 (2012) | Chip package thermistor 1206 (3216) |
|---|
| Time Constant | <=30S | <=30S | <=30S | <=30S | <=30S |
| Dissipation Factor | <=1.0mW/℃ | <=1.0mW/℃ | <=1.0mW/℃ | <=1.0mW/℃ | <=1.0mW/℃ |
| Nominal Zero-Power Resistance | 4.7KΩ-150KΩ | 4.7KΩ-150KΩ | 4.7KΩ-150KΩ | 4.7KΩ-150KΩ | 4.7KΩ-150KΩ |
| Size | 0402 (1005) | 0805 (2012) | 0603 (1608) | 0805 (2012) | 1206 (3216) |
| Thermal Time Constant | <5S | <5S | <5S | <5S | <5S |
| Permissible Operating Current (25℃) | 0.31mA | 0.31mA | 0.31mA | 0.31mA | 0.31mA |
| Accuracy | ±1%-±5% | ±1%-±5% | ±1%-±5% | ±1%-±5% | ±1%-±5% |
| Storage Temperature Range | -40℃~+125℃ | -40℃~+125℃ | -40℃~+125℃ | -40℃~+125℃ | -40℃~+125℃ |
| Operating Temperature Range | -40℃~+125℃ | -40℃~+125℃ | -40℃~+125℃ | -40℃~+125℃ | -40℃~+125℃ |
| Rated Electric Power (25℃) | 100mW | 100mW | 100mW | 100mW | 100mW |
Applications:
LINKUN SMD NTC Thermistor 1206 (3216) is a chip package thermistor
for surface mounting, which is widely used in temperature sensing,
temperature compensation, temperature protection, temperature
control, and thermal protection. This thermistor has a wide
temperature range of -40℃~+125℃ and a time constant of less than
30s, making it suitable for various temperature sensing and control
applications. The thermistor has UL, ROHS and REACH certifications,
and a minimum order quantity of 4000 pieces. The price is TBA, and
it is packaged in 4000 pieces/disk, with a delivery time of 10
workdays. Payment terms are T/T, Western Union, and MoneyGram.
LINKUN can provide 1,000,000,000 pieces per month, and the
permissible operating current at 25℃ is 0.31mA. The thermistor size
is 0402-1206.
Customization:
SMD NTC Thermistors 0603(1608)
- Brand Name: LINKUN
- Model Number: 1608X103F3450FB
- Place of Origin: Dongguan, Guangdong, China
- Certification: UL, ROHS, REACH
- Minimum Order Quantity: 10000 Pieces
- Price: TBA
- Packaging Details: Tape, 10000pcs/disk
- Delivery Time: 10 workdays
- Payment Terms: T/T, Western Union, MoneyGram
- Supply Ability: 1000,000,000 Pieces Per Month
- Storage Temperature Range: -40℃~+125℃
- Rated Electric Power (25℃): 100(mW)
- Time Constant: ≤30S
- Thermal Time Constant: <5S
- Nominal Zero-Power Resistance: 4.7KΩ-150KΩ
LINKUN is a professional SMD NTC thermistor production plant,
specialized in producing SMD negative temperature thermistor (NTC)
0603(1608), providing high quality and reliable products and
service. Contact us now for a quote.
Support and Services:
SMD NTC Thermistor technical support and service includes:
- 24-hour customer support
- Product installation and startup assistance
- Replacement of defective products
- Technical troubleshooting and advice
- Comprehensive product warranties
- Product configuration and customization
- Software and hardware upgrades

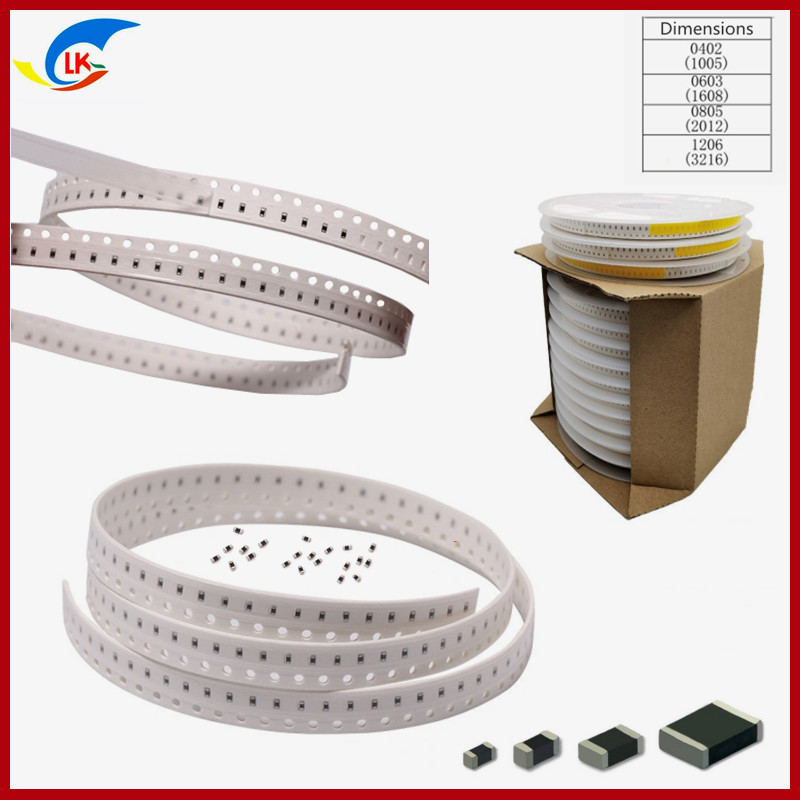

Packing and Shipping:
SMD NTC Thermistor is packaged in plastic boxes or tubes for
moisture protection and shipping.
SMD NTC Thermistor is shipped in cardboard boxes with appropriate
cushioning material to prevent damage during transportation.
