Descriptions:

REOMAX R1032 series slow-blow square Surface Mount fuses are ceramic tubelend cap constructions,RoHScompliant,Halogen Free and lead(Pb) exempts of the requirements of RoHS Directive(2002/95/EC), with U.S.(ULCSA) safety agency approvals. Provide board level primary and secondary circuit protection in a wide varietyof applications.With excellent inrush current withstanding capability, excellent reliability for thermal and mechanicshock, also have a high reliability and stable solder ability, end caps are available in gold/silver/nickel plated.

Features:

• Time-Lag (Slow-Blow)
• Small size(6.1mm*2.5mm)
• Wide range of current rating available
• Wide operating temperature range
• Low temperature de-rating
• RoHS compliant
• Tape and Reel for automatic placement ·
• Conflict free metals

Applications:

• LED lighting
• Notebook PC
• Battery devices
• LCD/PDP devices
• LCD backlight inverter
• Portable Devices
• Power supply
• Networking devices
• PC server
• Cooling fan system

• Storage system
• Telecom system
• Wireless base station
• White goods
• Game console
• Office equipment
• Digital camera
• Industrial equipment· Medical equipment
• Automotive devices

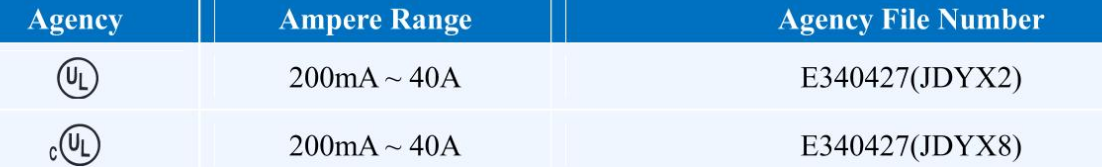

Standards and Agency Approvals

Standards: In accordance with UL 248-14.

Certification:

Catalogue No.,Approved / Pending

• *:These catalog no.cold resistance and I2t value are pending due to fuse elements shall be customized;
• DC Cold Resistance are measured at <10% of rated current in ambicnt temperature of 25℃;
• Typical Pre-arching 12t are calculated at 10*In Current or 8ms;
• Min Interrupting Rating: 1.35*In.

Dimensions and Structure

Unit: mm

Material Details
