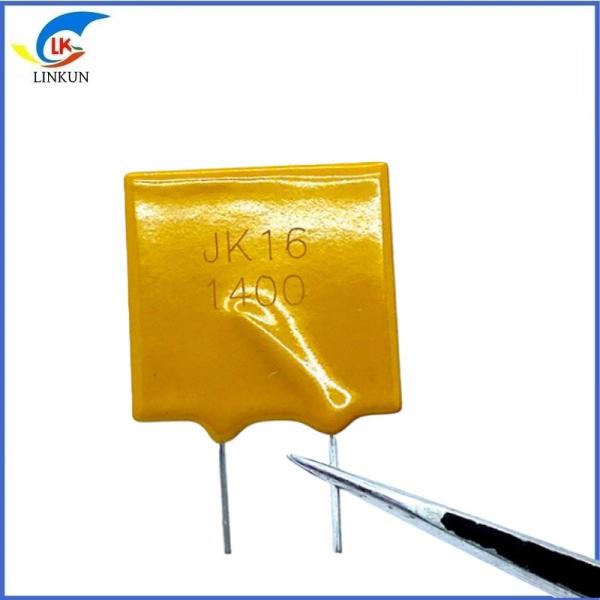

    JK16-1400 14A 16V Self-Resetting Fuse PPTC Thermistor With UL Certificate

    Ask Lasest Price
    Brand Name : LINKUN
    Model Number : JK16
    Certification : RoHS
    Price : US $0.2 ~ 0.6 PCS
    Payment Terms : T/T, D/P, D/A, Western Union, MoneyGram
    Supply Ability : 100,000 pieces/month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    JK16-1400 14A 16V Self-Resetting Fuse PPTC Thermistor With UL Certificate

    Polymer PTC Resettable Fuse JK16 Series


    Features:

    • RoHS Compliant & Halogen Free
    • Radial-leaded Devices
    • Cured,flame retardant epoxy polymer insulating material meets UL94V-0 requirements
    • Operation Current: 0.1A~14A ,Maximum Voltage: 16Vdc, Operating Temperature:-40℃ TO 85℃
    • Agency recognition:TUV

    Product Dimensions

    Unit :mm

    JK16 Series

    ModelDimensions(mm)Lead materialShape
    A(max)B(max)C(max)DE(min)Tinned metal(mm)Fig
    JK16-010(T)5.512.03.05.1±0.754.624 AWG/Φ0.51
    JK16-025(T)5.512.03.05.1±0.754.624 AWG/Φ0.51
    JK16-030(T)5.512.03.05.1±0.754.624 AWG/Φ0.51
    JK16-050(T)5.512.03.05.1±0.754.624 AWG/Φ0.51
    JK16-075(T)5.513.53.05.1±0.754.624 AWG/Φ0.51
    JK16-090(T)7.413.53.05.1±0.754.624 AWG/Φ0.51
    JK16-110(T)7.413.53.05.1±0.754.624 AWG/Φ0.51
    JK16-135(T)7.413.53.05.1±0.754.624 AWG/Φ0.51
    JK16-160(T)7.414.03.05.1±0.754.624 AWG/Φ0.51
    JK16-200(T)9.012.03.05.1±0.754.624 AWG/Φ0.52
    JK16-3009.012.03.05.1±0.754.620 AWG/Φ0.82
    JK16-40010.013.03.05.1±0.754.620 AWG/Φ0.82
    JK16-50011.817.53.05.1±0.754.620 AWG/Φ0.82
    JK16-60011.817.53.05.1±0.754.620 AWG/Φ0.82
    JK16-70013.523.03.05.1±0.754.620 AWG/Φ0.82
    JK16-80013.523.03.05.1±0.754.620 AWG/Φ0.82
    JK16-90015.024.03.05.1±0.754.620 AWG/Φ0.82
    JK16-100018.026.03.05.1±0.754.620 AWG/Φ0.82
    JK16-110018.026.03.05.1±0.754.620 AWG/Φ0.82
    JK16-120022.526.03.010.2±0.754.620 AWG/Φ0.82
    JK16-130024.030.03.010.2±0.754.620 AWG/Φ0.82
    JK16-140024.030.03.010.2±0.754.620 AWG/Φ0.82

    Note: Dimensions in the A, B, C are the maximum sizes, all typical values of D is at the tolerance of ± 0.75mm.


    Thermal Derating Chart-IH(A)


    ModelMaximum ambient operating temperature(℃)
    -40℃-20℃0℃25℃30℃40℃50℃60℃70℃85℃
    JK16 series147%132%120%100%90%88%80%71%61%47%

    Electrical Characteristic


    Electrical Characteristics
    ModelIH (A)IT (A)VmaxImaxPdMaximum Time-to-TripResistance(mΩ)
    V(DC)AWCurrent(A)Time(S)RminRmax
    JK16-010(T)0.10.3161000.380.5515007500
    JK16-025(T)0.250.5161000.451.2555001950
    JK16-030(T)0.30.6161000.491.55300700
    JK16-050(T)0.51.0161000.562.55200500
    JK16-075(T)0.751.5161000.723.755100320
    JK16-090(T)0.91.8161000.834.5590180
    JK16-110(T)1.12.2161000.945.5560150
    JK16-135(T)1.352.7161001.26.75540130
    JK16-160(T)1.63.2161001.48540110
    JK16-200(T)24161002.26153575
    JK16-30036161002.39152060
    JK16-40048161002.412152040
    JK16-500510161002.615151425
    JK16-600612161002.818151021
    JK16-700714161003.02115815
    JK16-800816161003.02415613
    JK16-900918161003.32725412
    JK16-10001020161003.73030411
    JK16-11001122161003.7333039
    JK16-12001224161004.2363038
    JK16-13001326161004.2395038
    JK16-14001428161004.2405037

    IH=Hold current:maximum current at which the device will not trip at 25℃ still air.

    IT=Trip current:minimum current at which the device will nalways at 25℃ still air.

    Vmax=Maximum voltage device can withstand without damage at rated current.

    Imax=Maximum fault current device can withstand tithout damage at rated voltage.

    Ttrip=Maximum time to trip(s) at assigned current.

    Pd=Typical power dissipation:typical amount of power dissipated by the decice when in state air environment.

    Rmin=Minimum device resistance at 25℃ prior to tripping.

    Rmax=Maximum device resistance at 25℃ prior to tripping.


    Environmental Specifications

    TestConditionsResistance change
    Passive Aging+85℃,1000hours≤Rmax
    Humidity Aging+85℃,85%R.H.1000hours≤Rmax
    Thermal Shock+125℃ to -55℃,10 Times≥Rmin
    SolventResistanceMIL-STD-202,Method 215FNo change
    VibrationMIL-STD-202,Method 201No change

    Solder reflow conditions


    Wave Soldering:

    Soldering Temperature:260℃~270℃ Soldering Time:≤3sec.

    Soldering Position: Resettable fuse wire and the bottom ≥ 6mm.

    Manual soldering:

    Soldering Temperature:250℃~280℃ Soldering Time: ≤3sec.

    Soldering Position: Resettable fuse wire and the bottom ≥ 6mm.

    Packaging and Storage
    Packaging

    JK16-010(T)~JK16-600 1000Pcs/Bag or 2000Pcs/Box

    JK16-700~JK16-900 500 Pcs/Bag

    JK16-1000~JK16-1400 200 Pcs/Bag

    Storage

    The maximum ambient temperature shall not exceed 40℃.Storage temperatures higher than 40℃ could result in the deformation of packaging materials.The maximum relative humidity recommended for storage is 70%.High humidity with high temperature can accelerate the oxidation the oxidation of the solder plating on the termination and reduce the solderability of the components.sealed plastic bags with desiccant shall be used to teduce the oxidation of the termination and shall only be opened prior to use.the products shall not be stored in areas where harmful gases containing sulfu of chlorine are present.
    Warning:

    Please read this specification before use the product.

    Using of this product must be sure to follow the requirement of this specification,operation beyond the specified maximum ratings or improper use may result in damage and possible electrical arcing and flame.

    PPTC resettable fuses are intended for occasional over current protection. Application for repeated over current condition or prolonged trip are not anticipated.

    Please avoid contact of PPTC resettable fuses with chemical solvent. Prolonged contact will damage the device performance. You are requested not to use our product deviating from the agreed specifications.
