    2410 1808 6125 SMD Fuse 3.15A SMD Fuse Tube SET Hair Dryer Fuse

    Ask Lasest Price
    Brand Name : lin kun
    Model Number : SET Hair Dryer Fuse
    Certification : ROHS,UL
    Price : 0.045 USD/ PCS
    Delivery Time : 7 workdays
    Payment Terms : T/T
    Supply Ability : 20,000,000PCS per week
    • Product Details
    • Company Profile

    2410 1808 6125 SMD Fuse 3.15A SMD Fuse Tube SET Hair Dryer Fuse

    Descriptions:


    Product SpecificationsPackageRated currentRated voltage ACRated voltage DCFuse capacity recovery type
    SET1100SMD-61251A250V125VDisposable
    SET1200SMD-61252A250V125VDisposable
    SET1300SMD-61253A250V125VDisposable
    SET1315SMD-61253.15A250V125VDisposable
    SET1500SMD-61255A250V125VDisposable


    REOMAX 6125 series slow-blow square Surface Mount fuses are ceramic tube/end cap constructions,RoHS
    compliant, Halogen Free and lead(Pb) exempts of the requirements of RoHS Directive(2002/95/BC), with U.S.(UL/CSA) safety agency approvals. Provide board level primary and secondary circuit protection in a wide varietyof applications. With excellent inrush current withstanding capability, excellent reliability for thermal and mechanic
    shock, also have a high reliability and stable solder ability, end caps are available in gold/silver/nickel plated.
    Features:

    • Time-Lag (Slow-Blow)
    • Small size(6.1mm*2.5mm)
    • Wide range of current rating available
    • Wide operating temperature range
    • Low temperature de-rating
    • RoHS compliant
    • Tape and Reel for automatic placement ·
    • Conflict free metals


    Applications:

    • LED lighting
    • Notebook PC
    • Battery devices
    • LCD/PDP devices
    • LCD backlight inverter
    • Portable Devices
    • Power supply
    • Networking devices
    • PC server
    • Cooling fan system
    • Storage system
    • Telecom system
    • Wireless base station
    • White goods
    • Game console
    • Office equipment
    • Digital camera
    • Industrial equipment· Medical equipment
    • Automotive devices

    Standards and Agency Approvals


    Standards: In accordance with UL 248-14.

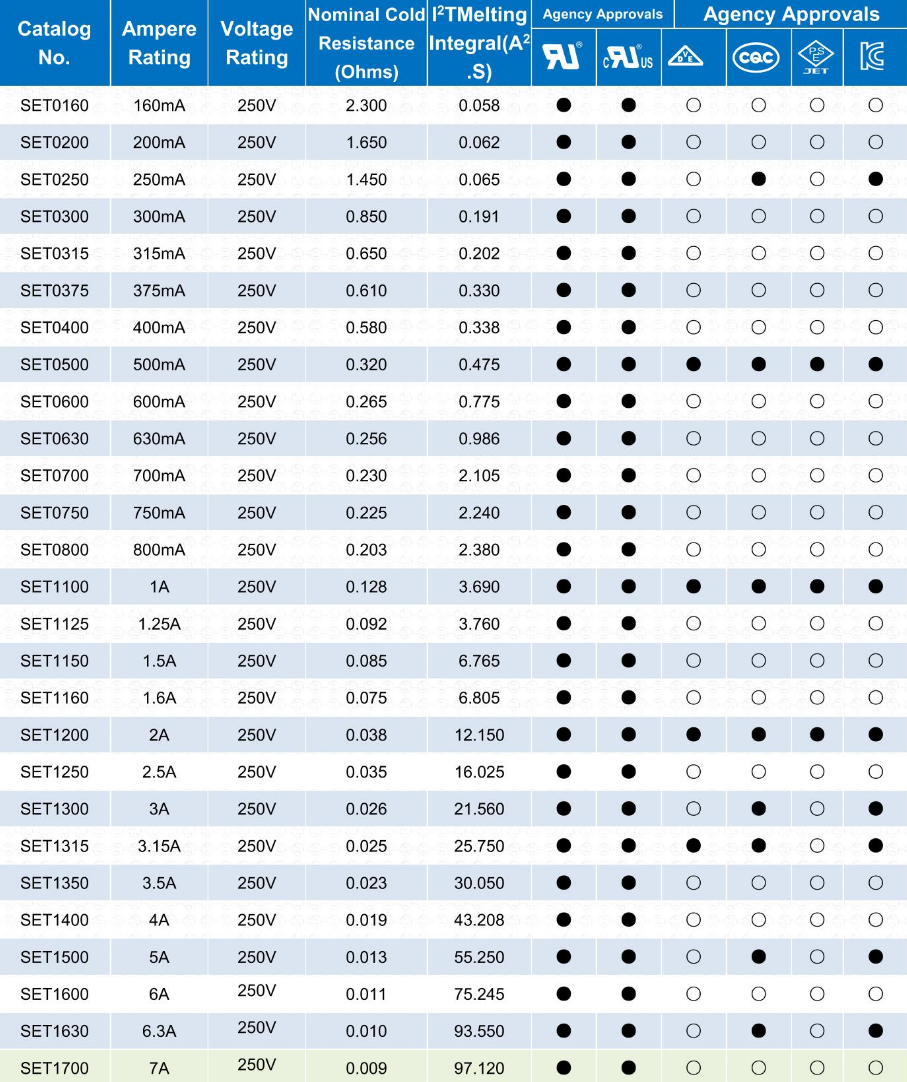

    Certification:


    Catalogue No.,Approved / Pending

    • *:These catalog no.cold resistance and I2t value are pending due to fuse elements shall be customized;
    • DC Cold Resistance are measured at <10% of rated current in ambicnt temperature of 25℃;
    • Typical Pre-arching 12t are calculated at 10*In Current or 8ms;
    • Min Interrupting Rating: 1.35*In.

    Dimensions and Structure

    Unit: mm

    Material Details

    Product Characteristics

    Electrical Characteristics


    Test Condition:All electrical test is to be conducted with the ambient air at a temperature of 2515℃.

    Interrupting Rating:50A@250Vac,200A@125Vac.Breaking Capacity: 50A@250Vac,200A@125Vac.

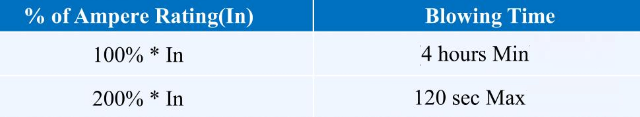

    Operating Characteristics:
