    IP68/IP67 High-Strength Waterproof Fish Tank Temperature Sensor With High-Precision TPE Injection Molded Probe

    Ask Lasest Price
    Brand Name : LINKUN
    Model Number : PT100 Temperature Sensor
    Certification : RoHS UL
    Price : US $0.2 ~ 0.6 PCS
    Payment Terms : T/T, MoneyGram, L/C
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    IP68/IP67 High-Strength Waterproof Fish Tank Temperature Sensor With High-Precision TPE Injection Molded Probe

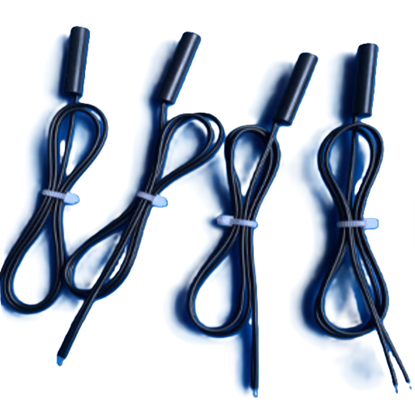

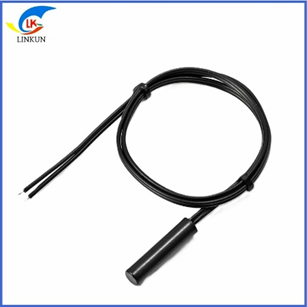

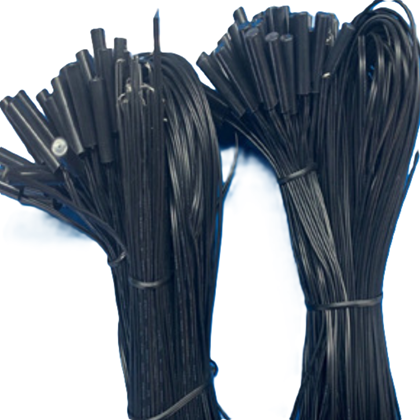

    Plastic case temperature sensor

    product information
    Picture probe:ABS plastic shell 5x25 parallel line 105° temperature measurement -20-105°
    Commonly used resistance values of products:5K3470 10K3435 10K3950 100K3950
    Shell size:4x20 5X25 6x30 7x25 8x30 can be customized
    Wire length:The length and color of the wire can be selected
    wire material:PVC Teflon sheathed wire
    Features:This temperature sensor is an ABS cylindrical plastic probe; it uses a high-temperature resistor chip and an epoxy resin encapsulated shell. The product resistance will not drift, peel, or dissolve under high temperature and low impact. It has heat resistance, cold resistance and very good stability, easy to install quickly, beautiful appearance and solid structure, fast heat transfer and temperature sensing, and flexible customization of size.
    Product application scope:air conditioners, freezers, temperature control instruments, indoor thermostats, heaters, and other home appliances and constant temperature measurement.
    Regarding production:Produced according to required specifications, can be customized with drawings and samples, customized with parameters, appearance, and length.

    Temperature sensor parameters

    Nominal resistance

    B value

    rated power

    dissipation coefficient

    Thermal time constant

    Operating temperature

    R25(Ω)

    25/50℃

    (mw)

    (mW℃)

    (S)

    (℃)

    5K3470

    5K3950

    10K3435

    10K3950

    15K3950

    20K3950

    50K3950

    100k3950

    【Others can be customized】

    5K

    10K

    15K

    20K

    30K

    50K

    100K

    200K

    【Others can be customized】

    3435

    3470

    3800

    3950

    4100

    4200

    【Others can be customized】

    ≤50

    ≥2.0

    in still air

    ≤15

    in still air


    -50~+300℃



    Freezer/Thermostat Temperature Sensor


    Sensor diversity

    TPE plastic soft rubber TPE soft rubber head Silicone elastic part ABS buckle cover

    Product optional material selection

    Wire color and sleeve optionalHead material and size optional
    PVC parallel wire Teflon wire sheathed wireChoose different appearances according to temperature measurement installation

    Product drawings are for reference; can be customized according to required parameters, specifications, and length (drawings and samples)

    • Product qualification: Meet certification requirements
    • Product application scope:Cold storage, snow truck, transformer, car refrigerator, freezer, etc. Product customization instructions

    (1) Resistance value of the product (nominal resistance value at 25°C, or others)
    (2) Product accuracy (1%~5%)
    (3) Product B value coefficient
    (4) Wire model and length (color, length, temperature resistance requirements)
    (5) Wire tail specifications (tin dipping, socket plug-in, special specifications)
    (6) Probe specifications and materials (nickel-plated copper, red copper, stainless steel, ABS plastic shell)
    (7) Operating temperature range
