200c Surface Temperature Disk PTC Thermistor 19mm 500～1500 Ohm For Cabin Heating System Of

Ask Lasest Price
Brand Name :	linkun
Model Number :	*Φ19mm2.5mm 200℃ 500-1500Ω**
Certification :	CE / ROHS / UL / TUV / SGS
Price :	Negotiation
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	24 million per year
Delivery Time :	Negotiation

Add to Cart

Product Details
Company Profile

200c Surface Temperature Disk PTC Thermistor 19mm 500～1500 Ohm For Cabin Heating System Of

Positive Temperature Thermistor For Constant Temperature Heating Φ20*2.2mm 215℃ 12V 13-25Ω PTC Ceramic Heating Plate

http://www.lk-thermistor.com/supplier-4159868-ptc-heating-chip

Product Description

Application

• Automotive

◆ Cabin heating of electric vehicles

◆ Diesel fuel preheating

◆ Diesel fuel filter heating

◆ Heating of crank case venting system

◆ Windshield washer nozzle heating

• Domestic

◆ Bimetal heaters for door latches of washing machines

◆ Fan heaters

◆ Heaters for optical communication distributors

◆ Insecticide and perfume vaporizers

◆ Oil preheating in oil burners

◆ Thermal actuators for liquid dispensers and thermostats

◆ Heaters for medical appliances

• Others

◆ Lens heated

◆ Glue guns

◆ Plastic film welders

Features

◆ The temperature pulsation which is observed in the bimetallic thermostat application can be eliminated.

◆ The heater element itself functions as a temperature regualator.

◆ Compact and light design together with simple construction permits easy handing in wining, etc.

◆ Excellent lfe characteristics ensure a longer service life than Nickel-chrome heaters under normal operating conditions.

◆ No risk of fire

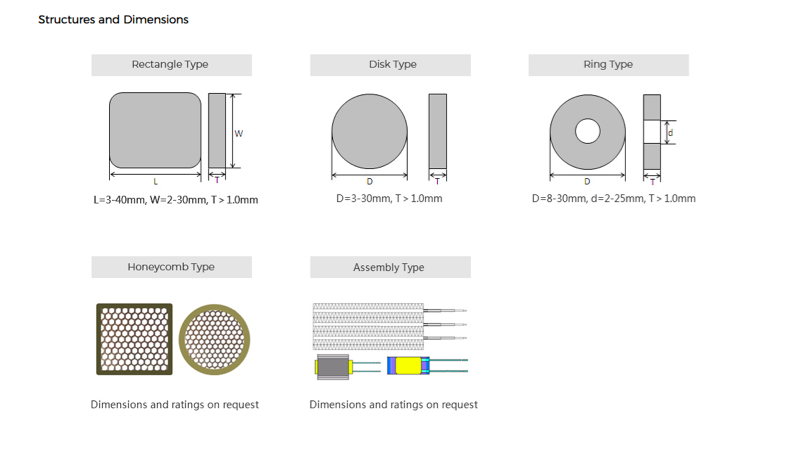

Structures and Dimensions

Electrical Specifications

◆ Heating elements for low voltage applications

Order Number	Curie Temp.	Surface Temp.	Resistance At25℃	Rated Voltage	Maximum Voltage	Dimensions
Order Number	Tc(℃)	Ts(±10℃)	R25 (Ω)	Vr(V)	Vmax(V)	D/L(mm)	d/W(mm)	T(mm)
MZ4X1Φ190415-2R0□9/40	0	40	2.0	9	18	Φ19.0	Φ4.3	1.5
MZ4P4S1210-9R0□V12/70	40	70	9	12	30	Φ12.0	-	1
MZ4P6S1210-9R0□V12/80	60	80	9	12	30	Φ12.0	-	1
MZ4P8S1210-9R0□V12/95	80	95	9	12	30	Φ12.0	-	1
MZ4P9S0825-360□V24/115	90	115	36	24	30	Φ8.5	-	2.5
MZ4X0S0815-180□V24/120	100	120	18	24	30	Φ8.0	-	1.5
MZ4X1Φ160415□12/120	110	120	2.4	12	24	Φ16.0	Φ4.3	1.5
MZ4X0S0815-100□V24/125	100	125	10	24	30	Φ8.0	-	1.5
MZ4X2S1210-9R0□V12/130	120	130	9	12	30	Φ12.0	-	1
MZ4X3S1215-3R0□V12/140	130	140	3.00	12	14	Φ12.0	-	1.5
MZ4X3S1215-1R5□V12/145	135	145	1.55	13.5	28	Φ12.0	-	1.5
MZ4X5S1216-2R0□V13/160	150	160	2	13.5	28	Φ12.0	-	1.6
MZ4X5S1210-9R0□V12/165	155	165	9	12	30	Φ12.0	-	1
MZ4X8S1210-9R0□V12/185	180	185	9	12	30	Φ12.0	-	1
MZ4X9S0820-100□V18/215	195	215	100	18	36	Φ8.0	-	2
MZ4Y4S1516-4R5□V13/250	240	250	4.5	13.5	24	Φ14.7	-	1.65
MZ4P8S350614-3R2□V12/110	80	110	3.2	12	20	35.0	6.2	1.4
MZ4X3S221225-1R8□V14/145	135	145	1.88	14	18	22.0	12	2.5
MZ4X3S341524-3R1□V24/145	135	145	3.13	24	36	34.0	15	2.4
MZ4X2S350614-3R2□V12/145	120	145	3.2	12	20	35.0	6.2	1.4
MZ4X4S281216-1R6□V14/150	140	150	1.65	13.5	28	28.0	12	1.65
MZ4X4S360820-5R0□V24/150	140	150	5	24	36	36.0	8	2
MZ4X5S300610-4R5□V14/160	150	160	4.5	13.5	24	30.0	5.8	1
MZ4X5S160416-1R5□V12/165	155	165	1.5	12	24	16.5	4.5	1.65
MZ4X6S341524-1R7□V12/170	160	170	1.7	12	24	34.0	15	2.4
MZ4X6S300610-200□V48/170	160	170	20	48	60	30.0	5.8	1
MZ4X7S300610-2R3□V12/180	170	180	2.35	12	24	30.0	5.8	1
MZ4X7S300610-3R0□V12/180	170	180	3	12	24	30.0	5.8	1
MZ4X6S350614-3R2□V12/180	160	180	3.2	12	20	35.0	6.2	1.4
MZ4X8S350614-3R2□V12/200	180	200	3.2	12	20	35.0	6.2	1.4
MZ4Y2S350614-6R4□V12/230	220	230	6.4	12	20	35.0	6.2	1.4

Notes:

1. □ is the resistance tolerance　M:±20%　X:±25%　N:±30%　S: Special

2. Vr can be selected at 1.5-68V.

3. Ts can be selected at 35-350℃.

4. Other type are available on request.

◆ Heating elements for high voltage applications

Order Number	Curie Temp.	Surface Temp.	Resistance At25℃	Rated Voltage	Maximum Voltage	Dimensions
Order Number	Tc(℃)	Ts(±10℃)	R25 (Ω)	Vr(V)	Vmax(V)	D/L(mm)	W(mm)	T(mm)
MZ4P5S1220-122□V230/100	50	100	1200	230	270	Φ11.8	-	2.0
MZ4P9S1220-122□V230/125	90	125	1200	230	270	Φ11.8	-	2.0
MZ4X2S1325-102□V110/135	120	135	1000	110	140	Φ13.0	-	2.5
MZ4X1S0803-422□V230/135	110	135	4200	230	270	Φ8.0	-	3
MZ4X1S1220-122□V230/140	110	140	1200	230	270	Φ11.8	-	2.0
MZ4X3S1220-122□V230/160	130	160	1200	230	270	Φ11.8	-	2.0
MZ4X5S0803-422□V230/170	150	170	4200	230	270	Φ8.0	-	3
MZ4X5S1220-122□V230/180	150	180	1200	230	270	Φ11.8	-	2.0
MZ4X8S0803-422□V230/200	180	200	4200	230	270	Φ8.0	-	3
MZ4Y2S0803-602□V230/235	220	235	6000	230	270	Φ8.0	-	3
MZ4Y3S0803-102□V230/240	230	240	1000	230	270	Φ8.0	-	3
MZ4P5S350620-701□V230/100	50	100	700	230	270	35.0	6.2	2
MZ4P7S350620-701□V230/115	70	115	700	230	270	35.0	6.2	2
MZ4X1S350620-701□V230/145	110	145	700	230	270	35.0	6.2	2
MZ4X3S350620-701□V230/160	130	160	700	230	270	35.0	6.2	2
MZ4X6S241520-302□V220/170	160	170	3000	220	480	24.0	15	2
MZ4X6S241524-152□V360/170	160	170	1500	360	420	24.0	15	2.4
MZ4X5S350620-701□V230/180	150	180	700	230	270	35.0	6.2	2
MZ4X5S281221-302□V400/190	155	190	3000	400	600	28.8	12.4	2.1
MZ4X8S350620-701□V230/205	180	205	700	230	270	35.0	6.2	2
MZ4X9S291021-402□V350/215	190	215	4000	350	800	28.8	9.8	2.1
MZ4X9S393126-151□V600/220	195	220	150	600	750	39.2	30.8	2.6
MZ4Y2S393119-871□V350/240	220	240	875	350	450	39.2	30.8	1.9
MZ4Y2S393125-871□V540/240	220	240	875	540	600	39.2	30.8	2.5
MZ4Y2S350620-102□V230/240	220	240	1000	230	270	35.0	6.2	2
MZ4Y7S350620-132□V230/280	270	280	1300	230	270	35.0	6.2	2

Notes:

1.□ is the resistance tolerance　M:±20%　X:±25%　N:±30%　S: Special

2.Vr can be selected at 100-1000V.

3.Ts can be selected at 35-350℃.

4.Other type are available on request.

Product Description

• Automotive
◆ Cabin heating of electric vehicles
◆ Diesel fuel preheating
◆ Diesel fuel filter heating
◆ Heating of crank case venting system
◆ Windshield washer nozzle heating

• Domestic
◆ Bimetal heaters for door latches of washing machines
◆ Fan heaters
◆ Heaters for optical communication distributors
◆ Insecticide and perfume vaporizers
◆ Oil preheating in oil burners
◆ Thermal actuators for liquid dispensers and thermostats
◆ Heaters for medical appliances

• Others
◆ Lens heated
◆ Glue guns
◆ Plastic film welders

Electrical Specifications

Order Number	Curie Temp.	Surface Temp.	Resistance At25℃	Rated Voltage	Maximum Voltage	Dimensions
Order Number	Tc(℃)	Ts(±10℃)	R25 (Ω)	Vr(V)	Vmax(V)	D/L(mm)	d/W(mm)	T(mm)
MZ2X1Φ190415-2R0□9/40	0	40	2.0	9	18	Φ19.0	Φ4.3	1.5
MZ2P4S1210-9R0□V12/70	40	70	9	12	30	Φ12.0	-	1
MZ2P6S1210-9R0□V12/80	60	80	9	12	30	Φ12.0	-	1
MZ2P8S1210-9R0□V12/95	80	95	9	12	30	Φ12.0	-	1
MZ2P9S0825-360□V24/115	90	115	36	24	30	Φ8.5	-	2.5
MZ2X0S0815-180□V24/120	100	120	18	24	30	Φ8.0	-	1.5
MZ2X1Φ160415□12/120	110	120	2.4	12	24	Φ16.0	Φ4.3	1.5
MZ2X0S0815-100□V24/125	100	125	10	24	30	Φ8.0	-	1.5
MZ2X2S1210-9R0□V12/130	120	130	9	12	30	Φ12.0	-	1
MZ2X3S1215-3R0□V12/140	130	140	3.00	12	14	Φ12.0	-	1.5
MZ2X3S1215-1R5□V12/145	135	145	1.55	13.5	28	Φ12.0	-	1.5
MZ2X5S1216-2R0□V13/160	150	160	2	13.5	28	Φ12.0	-	1.6
MZ2X5S1210-9R0□V12/165	155	165	9	12	30	Φ12.0	-	1
MZ2X8S1210-9R0□V12/185	180	185	9	12	30	Φ12.0	-	1
MZ2X9S0820-100□V18/215	195	215	100	18	36	Φ8.0	-	2
MZ2Y4S1516-4R5□V13/250	240	250	4.5	13.5	24	Φ14.7	-	1.65
MZ2P8S350614-3R2□V12/110	80	110	3.2	12	20	35.0	6.2	1.4
MZ2X3S221225-1R8□V14/145	135	145	1.88	14	18	22.0	12	2.5
MZ2X3S341524-3R1□V24/145	135	145	3.13	24	36	34.0	15	2.4
MZ2X2S350614-3R2□V12/145	120	145	3.2	12	20	35.0	6.2	1.4
MZ2X4S281216-1R6□V14/150	140	150	1.65	13.5	28	28.0	12	1.65
MZ2X4S360820-5R0□V24/150	140	150	5	24	36	36.0	8	2
MZ2X5S300610-4R5□V14/160	150	160	4.5	13.5	24	30.0	5.8	1
MZ2X5S160416-1R5□V12/165	155	165	1.5	12	24	16.5	4.5	1.65
MZ2X6S341524-1R7□V12/170	160	170	1.7	12	24	34.0	15	2.4
MZ2X6S300610-200□V48/170	160	170	20	48	60	30.0	5.8	1
MZ2X7S300610-2R3□V12/180	170	180	2.35	12	24	30.0	5.8	1
MZ2X7S300610-3R0□V12/180	170	180	3	12	24	30.0	5.8	1
MZ2X6S350614-3R2□V12/180	160	180	3.2	12	20	35.0	6.2	1.4
MZ2X8S350614-3R2□V12/200	180	200	3.2	12	20	35.0	6.2	1.4
MZ2Y2S350614-6R4□V12/230	220	230	6.4	12	20	35.0	6.2	1.4

Notes:
1. is the resistance tolerance　M:±20%　X:±25%　N:±30%　S: Special
2. Vr can be selected at 1.5-68V.
3. Ts can be selected at 35-350℃.
4. Other type are available on request.
