MZ92D-47R PTC Thermistor For Motor Starting, For Main Control Board
Of Inverter Air Conditioner
PTC thermistor for motor starting
--Chip type
--shell type
Product Description
use
◆ Auxiliary starting of compressors such as refrigerators, air
conditioners and heat pumps
◆Auxiliary starting of single-phase induction motor
◆ Inrush current suppression of switching power supplies, frequency
converters, variable frequency air conditioner main control boards,
micromotor controllers, etc.
Features
◆ Reliable metal electrode: Ni (chemical plating or sputtering) +
Ag (screen printing)
◆ Sturdy electrode suitable for pressure clamping installation,
ensuring long life
◆ No electrical noise, easy to install
◆Choose the chip size and Curie point to provide the best inrush
current and action time for startup
◆ High withstand voltage and surge current capability
◆ Safety approval: UL&CUL, VDE, CQC
◆ Comply with RoHS directive
Model and parameters
Chip type (MZ9 series)
| 产品型号 Product number | 25°C零功率电阻 | 最大电压 | 最大电流 | 破坏电压 | 居里温度 | 直径x厚度 |
| 25°C zero power resistor | Maximum voltage | Maximum current | Destruction voltage | Curie temperature | Diameter x Thickness |
| R25(Ω) | Vmax(V) | Imax(A) | VBD(V) | Tc(°C) | (mm) |
| MZ9-3R3□X3S1625 | 3.3 | 160 | 12 | 320 | 135 | 16x2.5 |
| MZ9-3R9□X3S1625 | 3.9 | 180 | 12 | 360 |
| MZ9-4R7□X3S1625 | 4.7 | 180 | 12 | 420 |
| MZ9-5R0□X0S1625 | 5 | 200 | 12 | 480 | 105 |
| MZ9-5R5□X2S1625 | 5.5 | 200 | 12 | 450 | 120 |
| MZ9-6R8□X0S1625 | 6.8 | 200 | 10 | 480 | 105 |
| MZ9-6R8□X3S1625 | 6.8 | 200 | 10 | 450 | 135 |
| MZ9-10R□X0S1625 | 10 | 200 | 10 | 500 | 105 |
| MZ9-10R□X3S1625 | 10 | 200 | 8 | 500 | 135 |
| MZ9-15R□X3S1625 | 15 | 350 | 8 | 700 | 135 |
| MZ9-22R□X3S1625 | 22 | 350 | 8 | 700 |
| MZ9-33R□X3S1625 | 33 | 355 | 6 | 720 |
| MZ9-47R□X3S1625 | 47 | 400 | 5 | 720 |
| MZ9-68R□X3S1625 | 68 | 450 | 4 | 800 |
| MZ9-5R0□X2S1725 | 5 | 200 | 12 | 450 | 120 | 17.5x2.5 |
| MZ9-6R8□X2S1725 | 6.8 | 200 | 10 | 500 |
| MZ9-10R□X2S1725 | 10 | 200 | 10 | 550 |
| MZ9-20R□X2S1725 | 20 | 320 | 8 | 650 |
| MZ9-3R3□X2S2025 | 3.3 | 160 | 12 | 350 | 135 or 120 | 20x2.5 |
| MZ9-3R9□X2S2025 | 3.9 | 180 | 12 | 400 |
| MZ9-4R7□X3S2025 | 4.7 | 180 | 12 | 420 |
| MZ9-5R6□X3S2025 | 5.6 | 180 | 12 | 450 |
| MZ9-6R8□X3S2025 | 6.8 | 200 | 10 | 500 |
| MZ9-10R□X3S2025 | 10 | 230 | 9 | 550 |
| MZ9-12R□X3S2025 | 12 | 250 | 8.5 | 600 |
| MZ9-15R□X3S2025 | 15 | 350 | 8 | 700 |
| MZ9-22R□X3S2025 | 22 | 350 | 8 | 720 |
| MZ9-33R□X3S2025 | 33 | 355 | 6 | 750 |
| MZ9-47R□X3S2025 | 47 | 400 | 5 | 800 |
| MZ9-68R□X3S2025 | 68 | 450 | 5 | 860 |
| MZ9-3R9□X2S2032 | 3.9 | 180 | 16 | 350 | 120 | 20x3.2 |
| MZ9-12R□X2S2032 | 12 | 350 | 8 | 700 |
| MZ9-15R□X2S2032 | 15 | 350 | 8 | 750 |
| MZ9-30R□X2S2032 | 30 | 450 | 7 | 800 |
| MZ9-33R□X2S2032 | 33 | 385 | 8 | 750 |
| MZ9-40R□X2S2032 | 40 | 450 | 8 | 800 |
| MZ9-25R□X2S2050 | 25 | 400 | 9 | 800 | 120 | 20x5.0 |
| MZ9-38R□X2S2050 | 38 | 400 | 9 | 800 |
| MZ9-50R□X2S2050 | 50 | 410 | 8 | 800 |
| MZ9-75R□X2S2050 | 75 | 410 | 6 | 800 |
Remark:
1.□Represents the deviation range of R25 M: ±20% X: ±25% N: ±30% S:
Special
2. Other specifications or parameters can be customized
Shell type (MZ92D series)

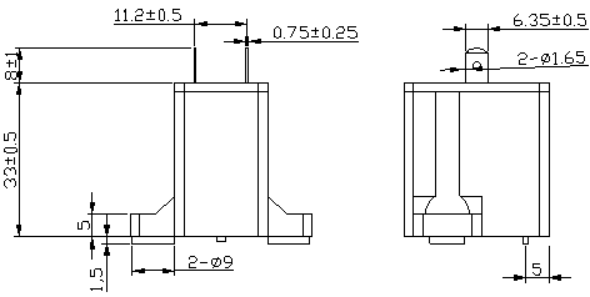

•Structure and dimensions
A type shell structure
B type shell structure
Model and parameters
| Product number | 25°C zero power resistor | Maximum voltage | Maximum current | Power consumption |
| (Ω) | (Vac) | (A) | (W) |
| MZ92D-3R9□ | 3.9 | 160 | 12 | 4 |
| MZ92D-4R7□ | 4.7 | 180 | 12 | 3.5 |
| MZ92D-5R0□ | 5 | 180 | 12 | 3.5 |
| MZ92D-6R8□ | 6.8 | 200 | 15 | 3.5 |
| MZ92D-10R□ | 10 | 200 | 15 | 3.5 |
| MZ92D-15R□ | 15 | 350 | 12 | 3.2 |
| MZ92D-22R□ | 22 | 350 | 15 | 3.2 |
| MZ92D-25R□ | 25 | 400 | 12 | 3.2 |
| MZ92D-30R□ | 30 | 450 | 12 | 3.2 |
| MZ92D-33R□ | 33 | 450 | 12 | 3.2 |
| MZ92D-38R□ | 38 | 450 | 12 | 3.2 |
| MZ92D-40R□ | 40 | 450 | 10 | 3.2 |
| MZ92D-47R□ | 47 | 450 | 12 | 3.2 |
| MZ92D-50R□ | 50 | 500 | 10 | 3.2 |
| MZ92D-68R□ | 68 | 500 | 9 | 3.2 |
| MZ92D-101R□ | 100 | 500 | 9 | 3.2 |
Remark:
1.□Represents the deviation range of R25 M: ±20% X: ±25% N: ±30% S:
Special
2. Other specifications or parameters can be customized
3. The power consumption parameters are tested under the condition
of applying Vmax.
