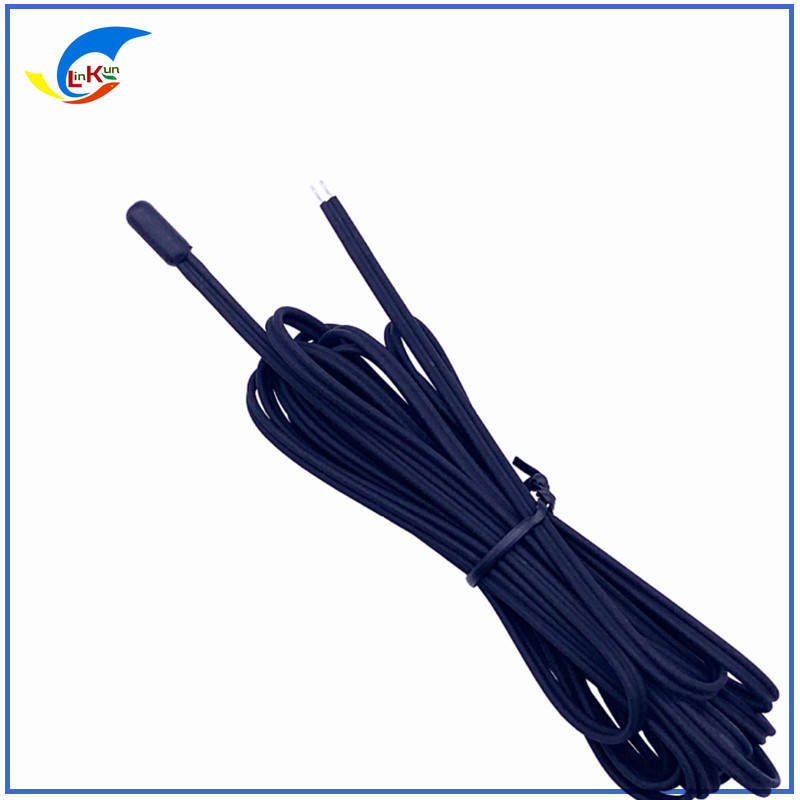

    Aquarium Fish Tank Temperature Sensor TPE Injection NTC10K 100K Waterproof Temperature Probe Head Type NTC Thermistor

    Ask Lasest Price
    Brand Name : LinKun
    Model Number : TPE plastic waterproof temperature sensor
    Certification : UL ROHS
    Price : Negotiation
    Supply Ability : 100000
    • Product Details
    • Company Profile

    Aquarium Fish Tank Temperature Sensor TPE Injection NTC10K 100K Waterproof Temperature Probe Head Type NTC Thermistor

    Prodct specilication



    1.Dimensions (Unit:mm),

    2.Form facto

    Serial numberMaterial nameSpecification/ModelQuantitRemark
    A1Shell6*15*5TPE injection head1pcs
    A2ThermistorMF52A-103F34351pcs
    A3Epoxy potting compoundDB potting soft material (white)
    A4Tail endPE black waterproof parallel cable1pcs |

    3.Electrical properties

    Serial numberProjectSymbolTest conditionsMinimum valueNormal valueMaximum valueunit
    3-1Resistance value at 25℃

    Aquarium Fish Tank Temperature Sensor TPE Injection NTC10K 100K Waterproof Temperature Probe Head Type NTC Thermistor

    Ta=25±0.05℃Pt≦0.1mw9.91010.1
    3-2Resistance value at 50℃Aquarium Fish Tank Temperature Sensor TPE Injection NTC10K 100K Waterproof Temperature Probe Head Type NTC ThermistorTa=50±0.05℃Pt≦0.1mw4.1605
    3-3B valueB(25/50)Aquarium Fish Tank Temperature Sensor TPE Injection NTC10K 100K Waterproof Temperature Probe Head Type NTC Thermistor3435k

    Prodct specilication


    Aquarium Fish Tank Temperature Sensor TPE Injection NTC10K 100K Waterproof Temperature Probe Head Type NTC Thermistor

    3-4Dissipation coefficientAquarium Fish Tank Temperature Sensor TPE Injection NTC10K 100K Waterproof Temperature Probe Head Type NTC ThermistorTa=25±0.5℃5mw/℃
    3-5Time constantAquarium Fish Tank Temperature Sensor TPE Injection NTC10K 100K Waterproof Temperature Probe Head Type NTC ThermistorTa=25±0.5℃15sec
    3-6Insulation resistance500Vdc100
    3-7Withstand voltage test1500V AC,I=0.5mA60s
    3-8Using temperature range-15+80

    4.Reliability test

    Serial numberProjectTechnical requirementsTest conditions and methods
    4-1High temperature testAquarium Fish Tank Temperature Sensor TPE Injection NTC10K 100K Waterproof Temperature Probe Head Type NTC ThermistorR/RAquarium Fish Tank Temperature Sensor TPE Injection NTC10K 100K Waterproof Temperature Probe Head Type NTC Thermistor≦±3%100±5℃, power on for 1000±24h, DCO.2mA
    4-2Low temperature testAquarium Fish Tank Temperature Sensor TPE Injection NTC10K 100K Waterproof Temperature Probe Head Type NTC ThermistorR/RAquarium Fish Tank Temperature Sensor TPE Injection NTC10K 100K Waterproof Temperature Probe Head Type NTC Thermistor≦±3%-30±5℃, power on for 1000±24h, DCO.2mA
    4-3Temperature hot and cold cycle testAquarium Fish Tank Temperature Sensor TPE Injection NTC10K 100K Waterproof Temperature Probe Head Type NTC ThermistorR/RAquarium Fish Tank Temperature Sensor TPE Injection NTC10K 100K Waterproof Temperature Probe Head Type NTC Thermistor≦±3%2℃×30→normal temperature×10min→100℃ water×3min→normal temperature×10min, 10 cycles in total
    4-4Moisture resistance testAquarium Fish Tank Temperature Sensor TPE Injection NTC10K 100K Waterproof Temperature Probe Head Type NTC ThermistorR/RAquarium Fish Tank Temperature Sensor TPE Injection NTC10K 100K Waterproof Temperature Probe Head Type NTC Thermistor≦±3%55±2℃, 90%-95%RH environment for 1000±24h

    5.Mechanical properties

    Serial numberProjectTechnical requirementsTest conditions and methods
    5-1Tensile testResin, no deformation, no damageLoad 10n(3F) for 1 minute
    Terminals, no deformation, no damageLoad 10n(3F) for 1 minute
    5-2Land testNo visible damageAt a height of 1 meter, let the product do free fall and fall onto a 10mm thick oak board, 5 times

    6. Storage method


    6.1 The stacking height of each stack during storage and transportation shall not exceed 4 boxes.

    6.2 Any method of transportation is allowed, but direct or indirect exposure to rain and snow and mechanical damage should be avoided.

    6.3 The product should be stored in an environment with a temperature of 10℃/+40℃ and a relative humidity of no more than 80%. The surrounding environment should not contain acidic, alkaline substances, corrosive gases or radiation sources.


    TEMPERATURE VS RESISTANCE TABLE

    Resistance 10k Ohms at 25deg. C

    B Value 3435K at 25/85 deg. C


    Temp.

    (deg. C)

    R

    (k Ohms)

    Temp.

    (deg. C)

    R

    (kOhms)

    Temp.

    (deg. C)

    R

    (kOhms)

    Temp.

    (deg. C)

    R

    (kOhms)

    -2069.6931622.84191440.35172260.0817
    -1966.3291632.75591450.34442270.0805
    -1863.1485642.67291460.33722280.0793
    -1760.1402652.59291470.33032290.0781
    -1657.2939662.51561480.32352300.0770
    -1554.5998672.44101490.31692310.0759
    -1452.0490682.36901500.31042320.0748
    -1349.6330692.29941510.30422330.0737
    -1247.3439702.23221520.29802340.0726
    -1145.1743712.16731530.29202350.0716
    -1043.1172722.10461540.28622360.0706
    -941.1663732.04401550.28052370.0695
    -839.3153741.98541560.27492380.0686
    -737.5587751.92881570.26952390.0676
    -635.8910761.87401580.26422400.0666
    -534.3074771.82111590.25902410.0657
    -432.8029781.76991600.25402420.0648
    -331.3734791.72041610.24902430.0639
    -230.0145801.67251620.24422440.0630
    -128.7225811.62621630.23952450.0621
    027.4936821.58131640.23492460.0613
    126.3245831.53791650.23042470.0605
    225.2119841.49591660.22602480.0596
    324.1527851.45531670.22182490.0588
    423.1442861.41591680.21762500.0580
    522.1835871.37781690.21352510.0573
    621.2682881.34081700.20952520.0565
    720.3959891.30511710.20562530.0557
    819.5644901.27041720.20182540.0550
    918.7714911.23681730.19802550.0543
    1018.0151921.20431740.19442560.0536
    1117.2935931.17281750.19082570.0529
    1216.6048941.14221760.18742580.0522
    1315.9475951.11261770.18392590.0515
    1415.3198961.08391780.18062600.0508
    1514.7203971.05601790.17742610.0502
    1614.1475981.02901800.17422620.0495
    1713.6003991.00281810.17112630.0489
    1813.07721000.97741820.16802640.0483
    1912.57711010.95271830.16502650.0477
    2012.09881020.92881840.16212660.0471
    2111.64131030.90551850.15932670.0465
    2211.20371040.88301860.15652680.0459
    2310.78481050.86111870.15382690.0453
    2410.38391060.83991880.15112700.0447
    2510.00001070.81931890.14852710.0442
    269.63241080.79921900.14592720.0437
    279.28021090.77981910.14342730.0431
    288.94281100.76091920.14102740.0426
    298.61951110.74251930.13862750.0421
    308.30961120.72471940.13622760.0416
    318.01241130.70741950.13392770.0411
    327.72751140.69061960.13172780.0406
    337.45411150.67421970.12952790.0401
    347.19191160.65831980.12732800.0396
    356.94031170.64291990.12522810.0391
    366.69871180.62782000.12312820.0387
    376.46691190.61322010.12112830.0382
    386.24421200.59902020.11912840.0378
    396.03041210.58522030.11722850.0373
    405.82501220.57182040.11532860.0369
    415.62761230.55872050.11342870.0365
    425.43801240.54602060.11162880.0361
    435.25571250.53362070.10982890.0356
    445.08041260.52162080.10802900.0352
    454.91191270.50982090.10632910.0348
    464.74981280.49842100.10462920.0344
    474.59391290.48732110.10292930.0340
    484.44391300.47652120.10132940.0337
    494.29951310.46602130.09972950.0333
    504.16051320.45582140.09822960.0329
    514.02681330.44582150.09672970.0326
    523.89801340.43612160.09522980.0322
    533.77391350.42662170.09372990.0318
    543.65441360.41742180.09223000.0315
    553.53931370.40842190.0908
    563.42841380.39972200.0895
    573.32151390.39112210.0881
    583.21851400.38282220.0868
    593.11911410.37472230.0855
    603.02341420.36692240.0842
    612.93101430.35922250.0829
